Liberty AV DL-1H1A1UC-WPKT-W
DigitaLinx HDMI & USB-C HDBaseT Wall Plate Extension Set w/USB
-Brandon K.
Description

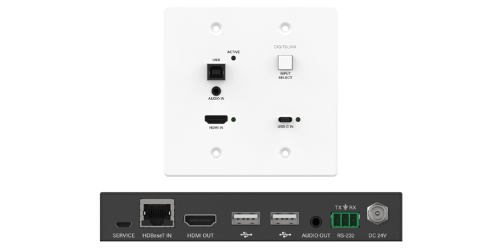

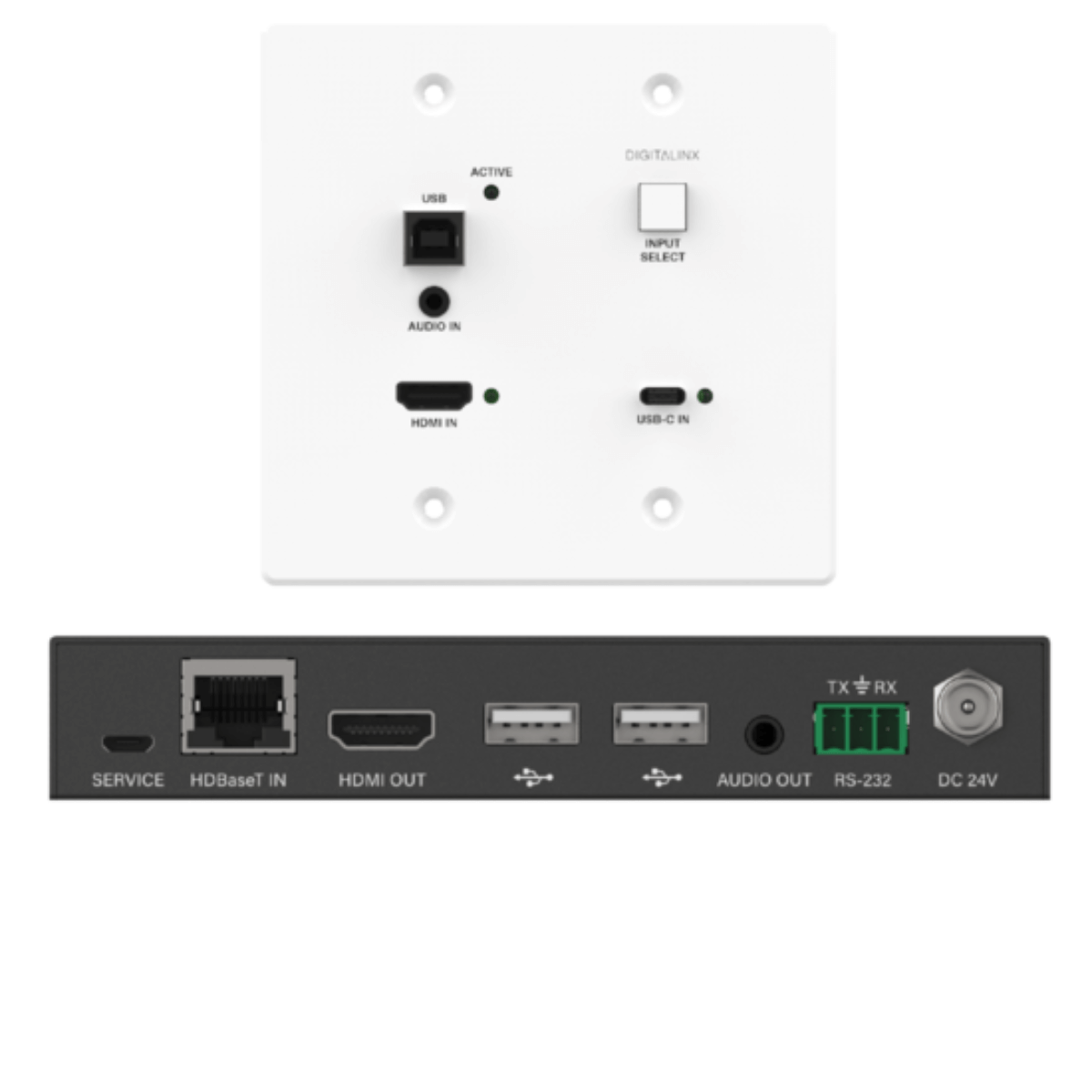

The Digitalinx DL-1H1A1UC-WPKT-W HDBaseT 2.0 extender set auto switches and transmits HDMI or USB-C audio and video, analog audio, USB 2.0 High Speed data signals (up to 240 Mbps) and RS232 over single category 6 twisted pair cable. The DL-1H1A1UC-WPKT-W can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120' and 1080P up to 70m / 230'. The 3.5 audio input/output on the system is completely separate and is not dependent on the HDMI or USB input source to be active, this way stereo audio can be transmitted through the system independently. The Digitalinx DL-1H1A1UC-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant. The USB-C input supports ALT-DP mode and can support video, audio, data and power charging up to 40 watts and is a USB host port allowing for true 1 cable connection from connected computers. The DL-1H1A1UC-WPKT-W supports auto switching however an input select button is provided to switch between the HDMI and USB-C inputs manually. The DL-1H1A1UC-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate. However if using the USB-C input for a source device and power charging is required, both the receiver and the wall plate must be powered simultaneously. The DL-1H1A1UC-WPKT-W is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
