Lew Electric SWB-4-LR

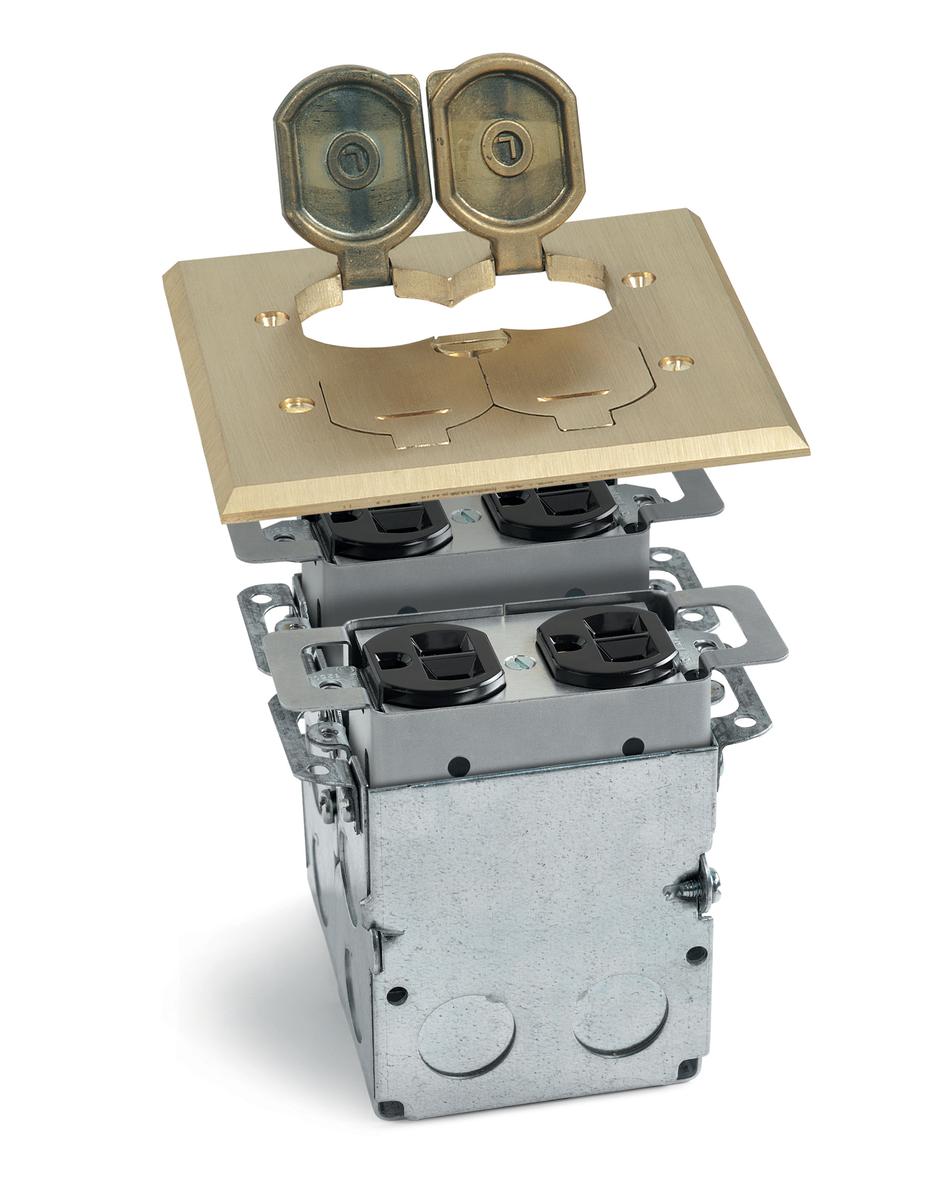

Square Four Power Floor Box w/ 4 Flip Lids - Brass

Part #: SWB-4-LR
Satisfaction Guaranteed!
Our Price: $295.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top SWB-4-LR Specifications
  • Cover plate: 1/8" thick brass
  • Four 15A tamper resistant outlets
  • Four flip up lids
  • Box dimensions: 5" X 5"
"Very helpful and professional!"
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The Lew Electric SWB-4-LR is a floor box that holds (4) 15A tamper resistant power outlets, the top brass plate features four flip up lids. The box meets NEMA WD1-1983 heavy duty requirement for display receptacles, the box and outlets are UL listed. The box features a water tight assembly and includes a neoprene gasket. The box is adjustable and can accommodate any thickness floor up to 3/4".

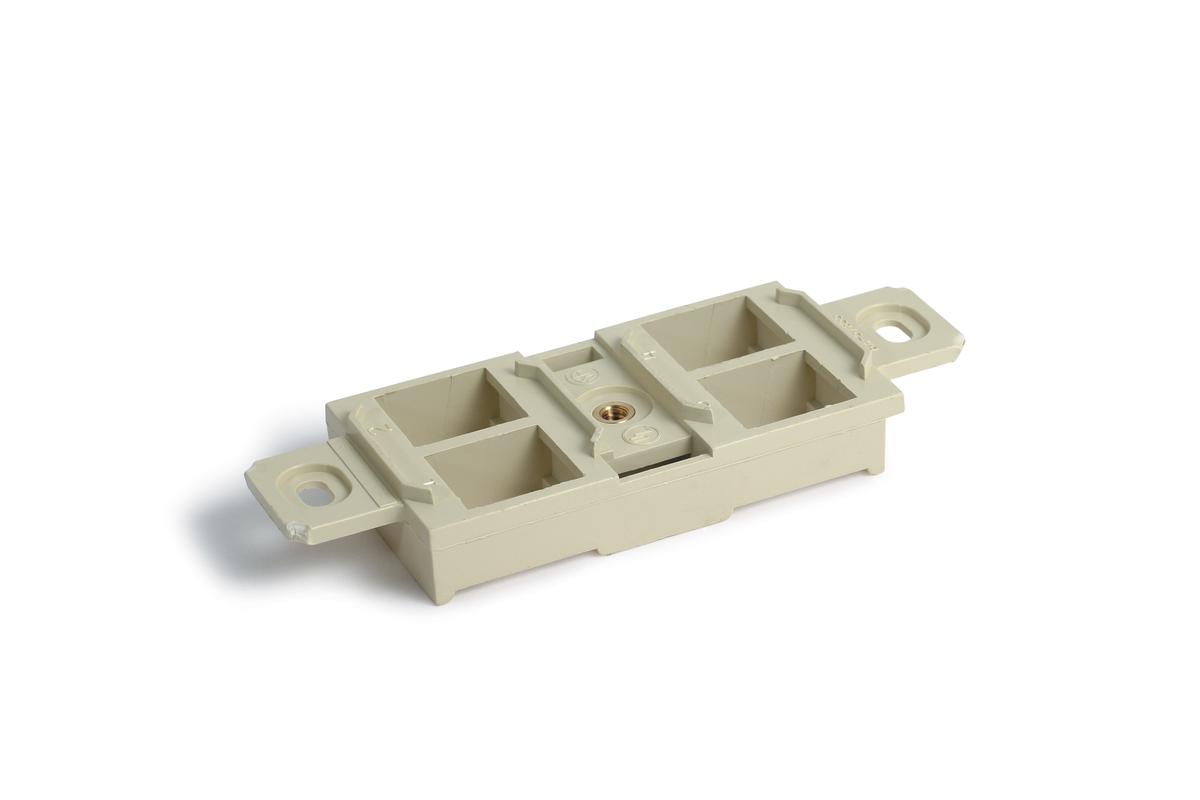

***Includes 4 port keystone plate in case you want to replace one of the power outlets***

To install use the included back box, there are twelve 3/4" conduit knockouts to bring your wire into.  The box may be attached directly to a sub floor or routed into finished floor. Brass screws are included to attach box to plate.

The Lew Electric SWB-4-LR is an economical solution when you need two duplex powers that is easy to install and functions perfectly.

Specifications

  • Depth: 4.01"
  • Water tight assembly
  • Outlet UL listing # 498
  • Outlet meets NEMA WD1-1983 heavy-duty requirement for display receptacle code
  • Box UL listing # 729A (File # E333616)
  • Cutout max dimensions: 4" x 3 1/2"
  • Includes 4 port empty keystone plate, back box, 1/16" neoprene gasket, and brass installation screws
  • Can accommodate any thickness floor up to 3/4"
  • Warranty: 6 months
