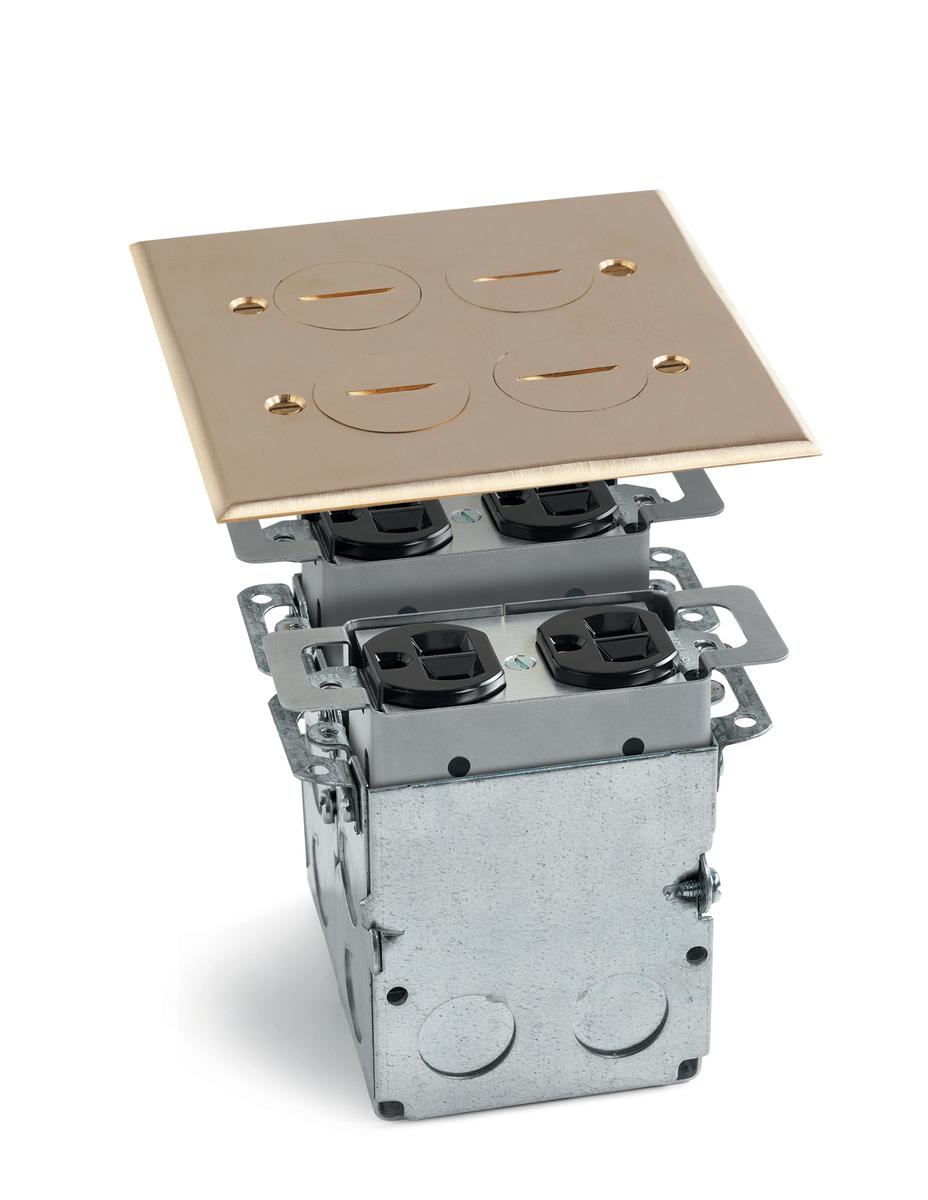

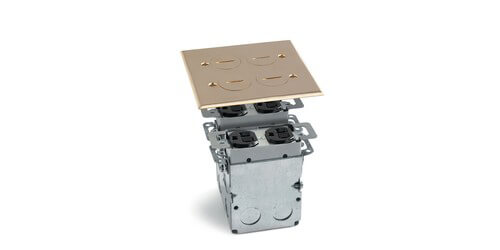

Lew Electric SWB-4
Square Four Power Floor Box w/ 4 Screw Plugs - Brass
The Lew Electric SWB-4 is a floor box that holds (4) 15A tamper resistant power outlets, the top brass plate features four screw plugs. The box meets NEMA WD1-1983 heavy duty requirement for display receptacles, the box and outlets are UL listed. The box features a water tight assembly and includes a neoprene gasket. The box is adjustable and can accommodate any thickness floor up to 3/4".

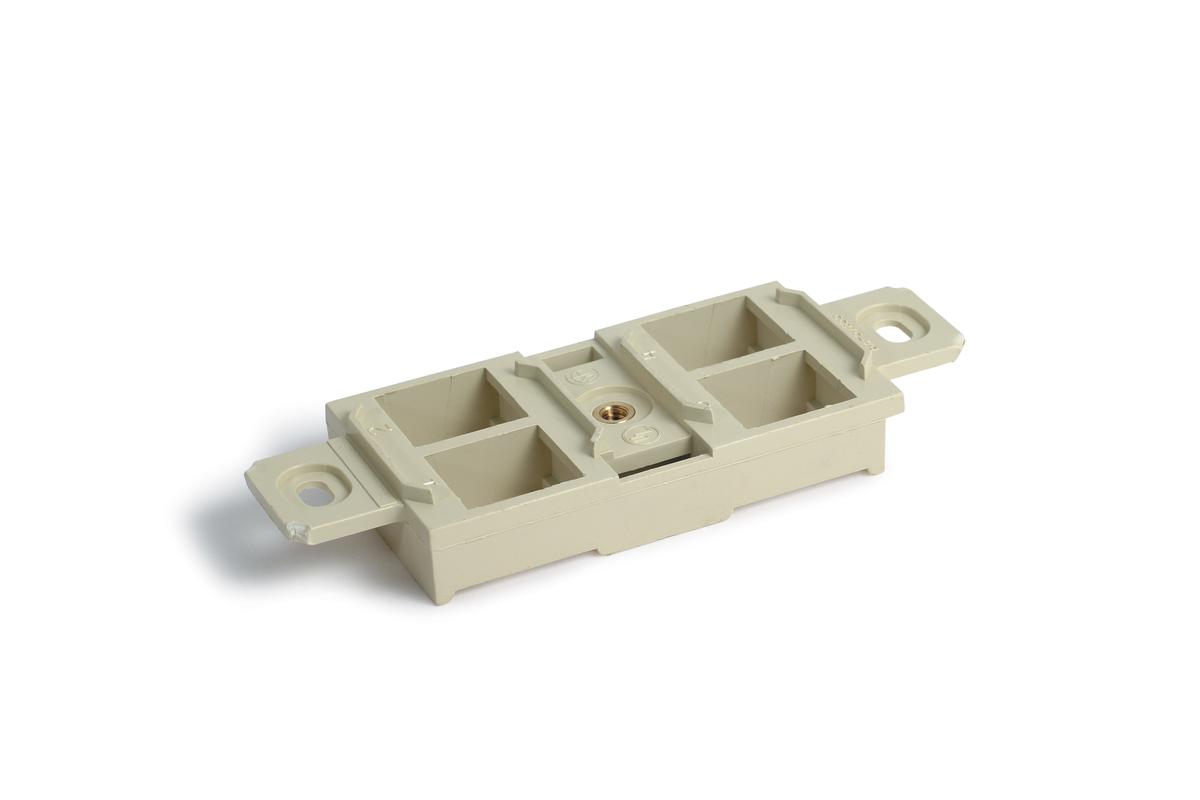

***Included is a 4 port keystone plate in case you want to replace one of the power outlets***
To install use the included back box, there are twelve 3/4" conduit knockouts to bring your wire into. The box may be attached directly to a sub floor or routed into finished floor. Brass screws are included to attach box to plate.
The Lew Electric SWB-4 is an economical solution when you need two duplex powers that is easy to install and functions perfectly.
- Depth: 4.01"
- Water tight assembly
- Outlet UL listing # 498
- Outlet meets NEMA WD1-1983 heavy-duty requirement for display receptacle code
- Box UL listing # 729A (File # E333616)
- Cutout max dimensions: 4" x 3 1/2"
- Includes back box, 4 port keystone plate, 1/16" neoprene gasket, and brass installation screws
- Can accommodate any thickness floor up to 3/4"
- Warranty: 6 months
