Kramer AV VP-770
8x3 Presentation Switcher & 2K Scaler w/ PiP, Amp, and DGKat Out

Manufacturer SKU: 70-710231110
Satisfaction Guaranteed!
MSRP: $2,915.00
Our Price: $2,332.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top VP-770 Specifications
  • Video inputs: 2 HDMI, 2 VGA, 1 DisplayPort, 2 Component, and 1 composite
  • Video outputs: 1 HDMI, 1 VGA, 1 twisted pair (simultaneous)
  • DGKat distance: Up to 230' for 1080P using shielded Cat6
  • Audio inputs: 1 microphone, 1 S/PDIF
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008

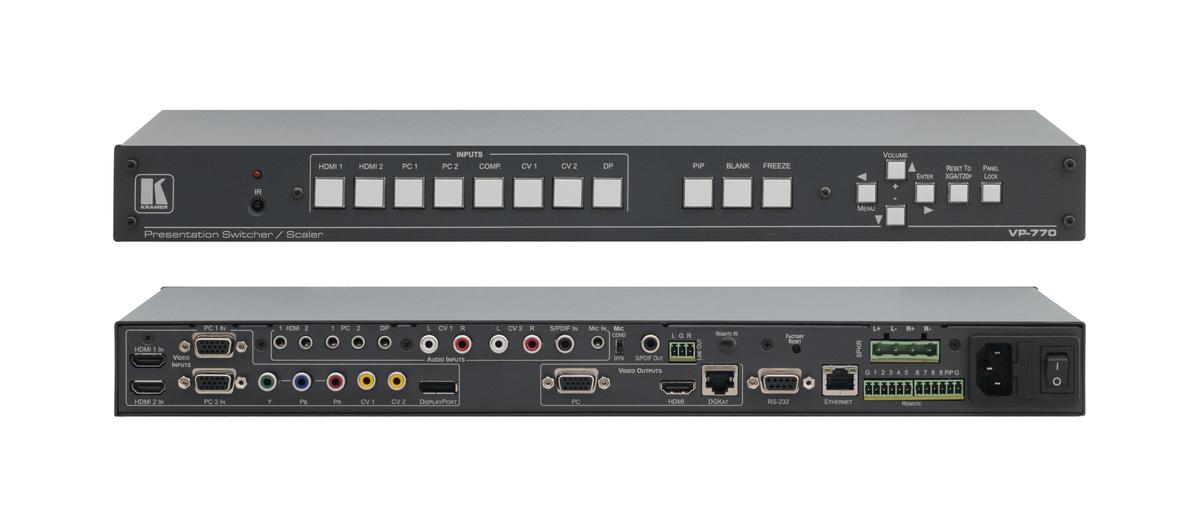

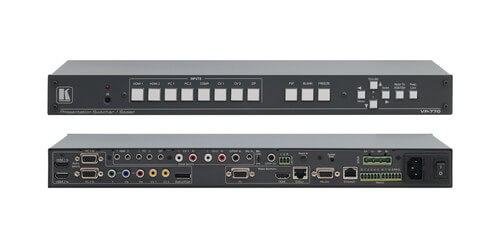

The Kramer VP-770 is an 8 input and 3 output multi-format presentation switcher with scaled outputs. The switcher features 2 HDMI, 2 VGA, 1 DisplayPort, 2 Component, and 1 composite input connections. The outputs are simultaneous 1 HDMI, 1 VGA, and 1 Cat5e/6 twisted pair that can be scaled up to 2K. The ProScale integrated scaler also offers high quality video processing for high grade de-interlacing, noise reduction, and 3D comb filtering. Other video adjustments are color, hue, sharpness, contrast, and brightness and gamma that are set individually for each input.

The VP-770 features glitch free fast switching with a smooth fade to black switch that is pleasant on the eyes.  The VP-770 offers advanced windowing such as PiP, PaP, and split screen.  The unit can be controlled via the front panel buttons, RS-232, Ethernet, the included IR remote, and using the remote with the on screen menu.

The VP-770 has your audio needs covered as well, your audio inputs consist of 1 S/PDIF. Your audio outputs are 1 stereo and 1 S/PDIF and embedded and de-embedded HDMI audio. A microphone input as well as a 2x10W integrated amplifier round out the long list of audio features.

The VP-770 is full of features and easy to set up and install, it covers your digital and analog, scaling, switching, and even your amplification needs.


  • Audio outputs: 1 stereo, 1 S/PDIF
  • Scaler output resolutions: Up to 2K
  • Video controls: PiP, PaP, split screen, zoom, aspect ratio choices, text overlay
  • 2x10W amplifier
  • Mass notification system
  • Ultra fast and smooth fade to black switching
  • Audio inputs feature level adjustments
  • Audio delay adjustment
  • Zoom up to 1600%
  • Control: Front panel buttons, RS-232, Ethernet, IR, OSD
  • EDID management
  • Dimensions: 19" (W), 9.3" (D) 1U (H) (includes rack ears)
  • Weight: 6.6lbs
  • Warranty: 7 years
  • Includes: Rack ears, remote, power cord
