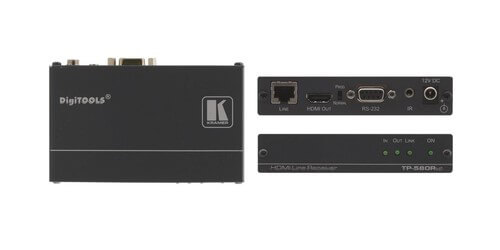

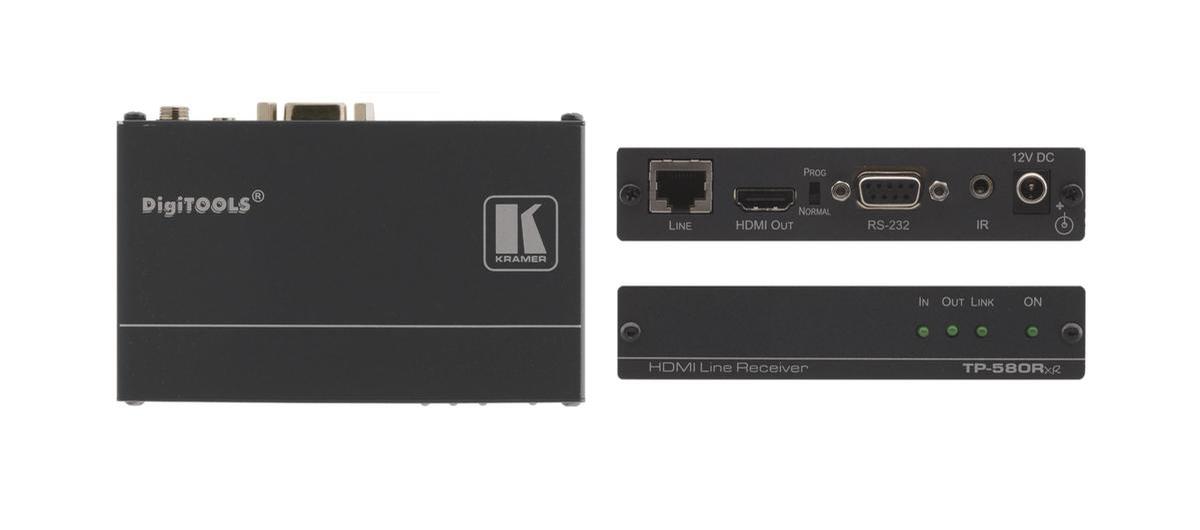

Kramer AV TP-580RXR
HDMI 4K@60 UHD 4:2:0 Bidirectional RS-232 & IR HDBaseT Receiver

Manufacturer SKU: 50-80022190
Satisfaction Guaranteed!
MSRP: $505.00
Our Price: $404.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top TP-580RXR Specifications
  • Resolution Supported: 4K@60 UHD (4:2:0)
  • System Range: Up to 130m (430ft) at normal mode 2K, up to 100m at normal mode 4K: up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC HDKat6a cables
  • Max Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • HDBaseT Technology
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008


The TP-580RXR by Kramer is an extended range, HDBaseT twisted pair receiver for HDMI, bidirectional RS-232 and IR signals. The TP-580RXR receives an HDBaseT twisted pair signal from the TP- 580TXR transmitter and converts it back into HDMI, RS 232 and IR signals.  It supports resolutions up to 4K@60 UHD (4:2:0), will pass 3D and EDID, and is HDCP compliant.  This is the extended range model that will support 1080p up to 430' or up to 590' using C-HDK6/HDK6 cable.



  • HDMI Support: Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS HD, CEC
  • Inputs: 1 HDBaseT twisted pair RJ 45 connector
  • Outputs: 1 HDMI connector
  • Ports: 1 IR on a 3.5mm mini jack, 1 RS 232 on a 9 pin D sub connector
  • Compliance with HDMI Standards: Supports HDMI and HDCP
  • Dimensions: 4.7" x 3" x 1.0" W, D, H
  • Weight: 0.66lbs
  • Includes: Power supply
  • Warranty: 7 years
