Kramer AV TBUS-5xl-KIT3
5 Retaining Holes & 1 AC Power Table Box w/ Retracting Lid
- Kit includes: 1 power and 5 retaining grommet holes
- Black or silver

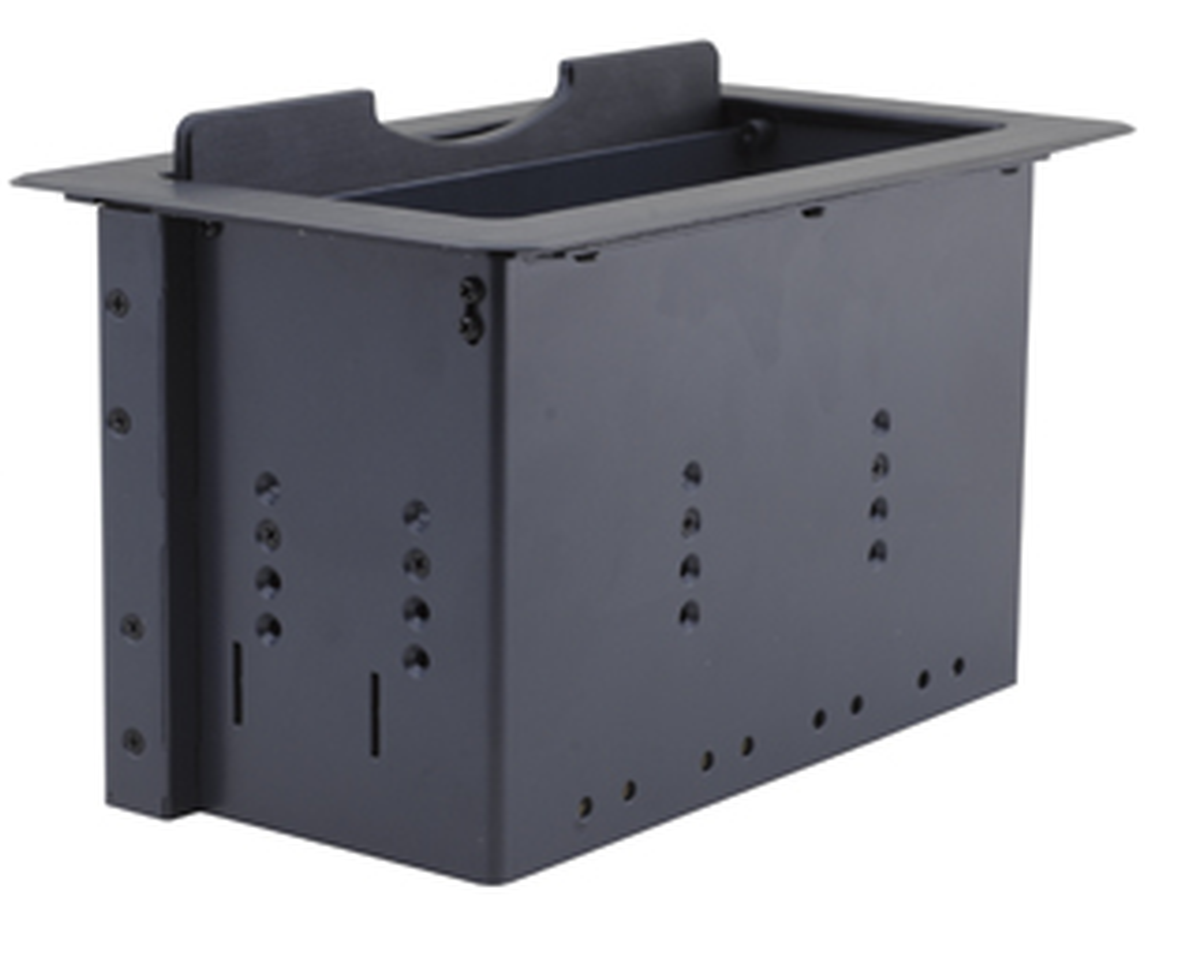

- Lid slides down into unit and out of the way
- Box dimensions: 6.9"W x 5.5"D x 5.1"H

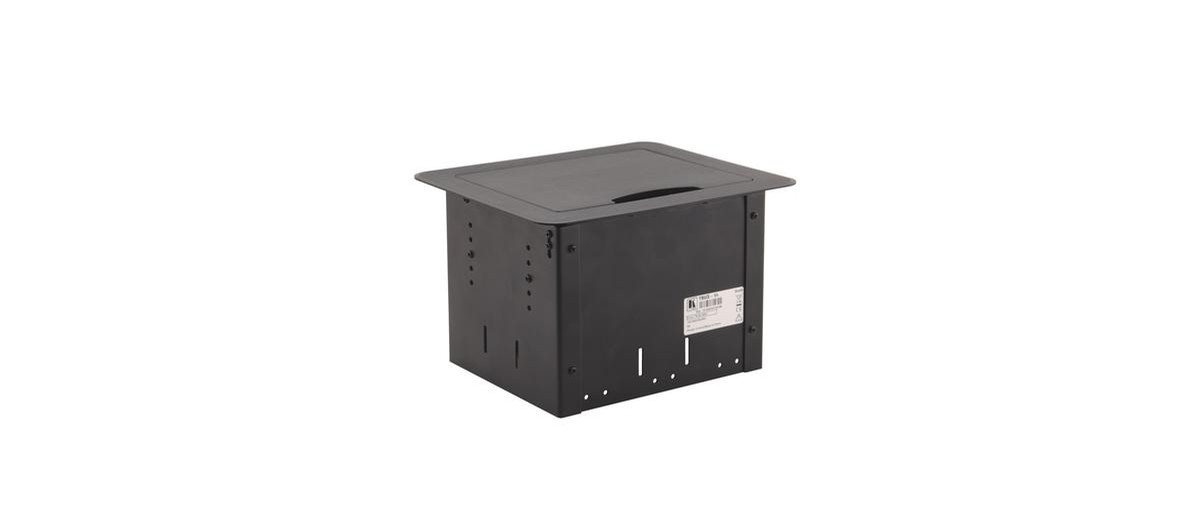

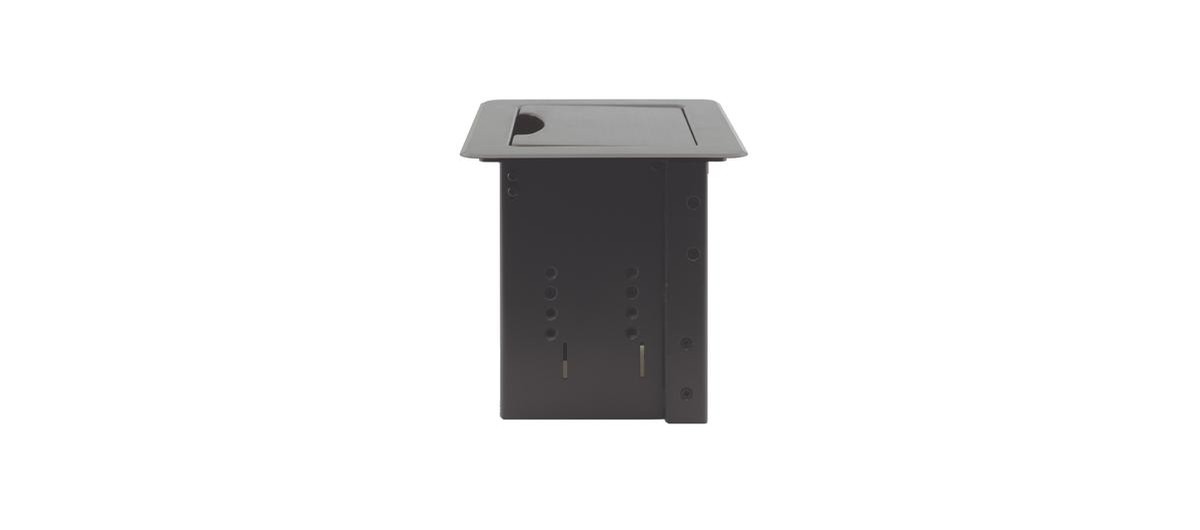

The Kramer TBUS-5xl-KIT3 is a configured table box with a manually retractable lid. Pass through retention holes are ideal when you just want users to simply pull the cables out of the cable well, this situation keeps you from always having to store spare cables around for users. The lid lifts up then slides down and out of the way, the lid also has a small opening in it so cables can be plugged in with the lid closed.

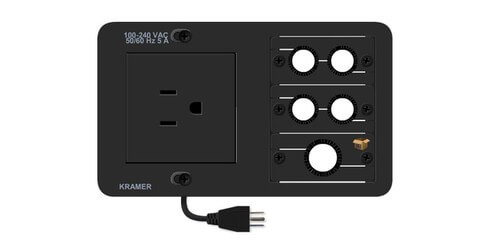

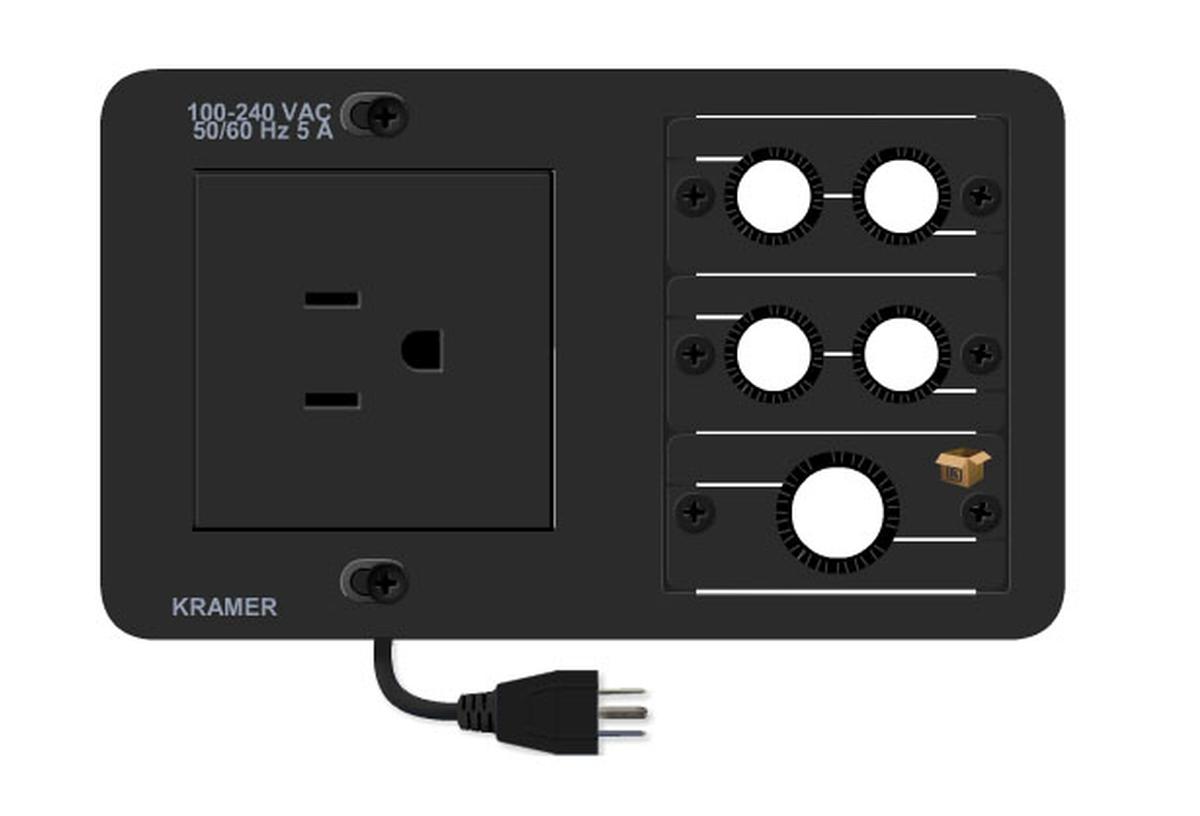

Included is 1 power with 6' cord and 5 retaining grommets. The 4 smaller holes have a diameter of .35" and the larger hole has a diameter of .49".

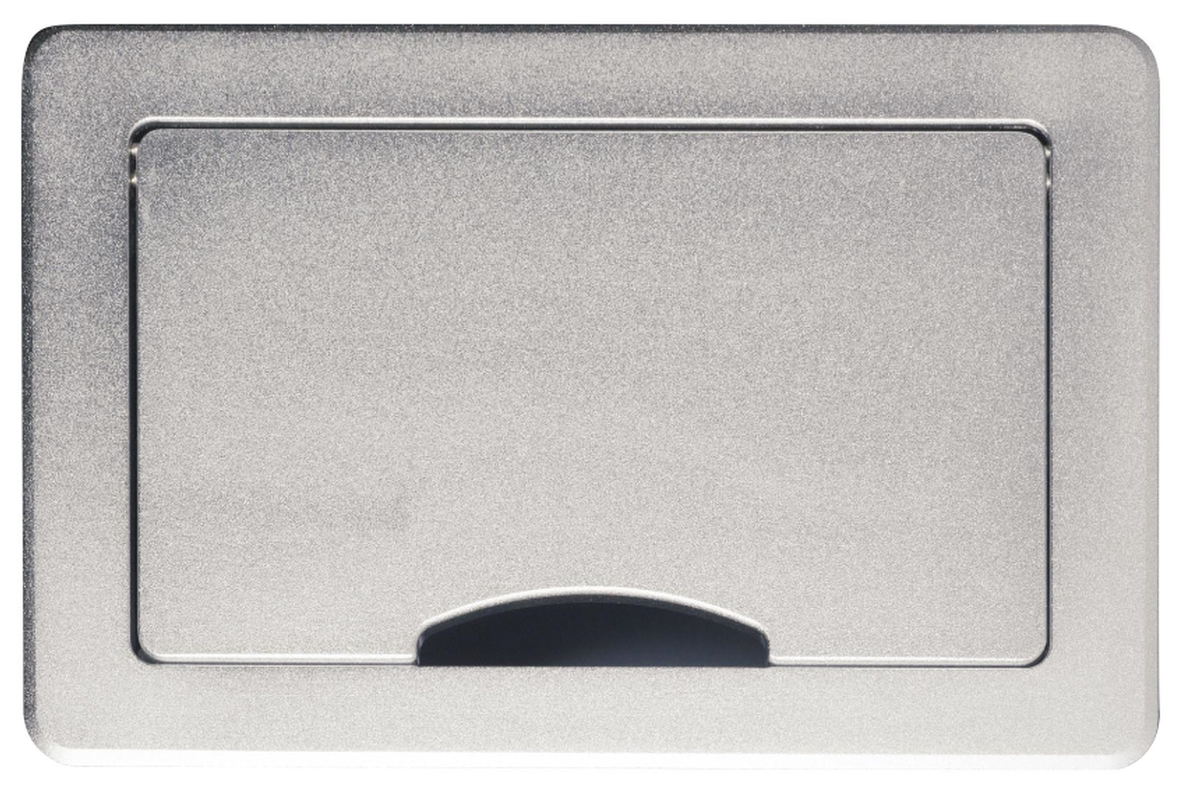

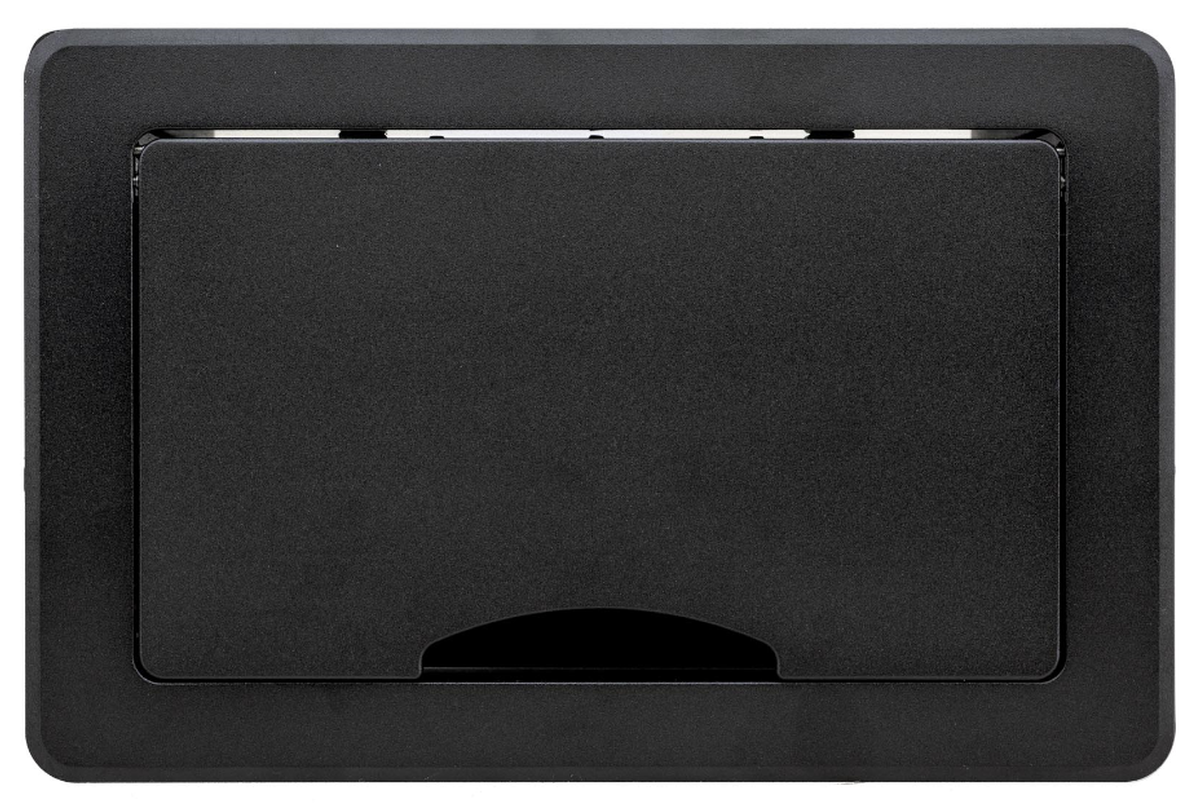

Choose between black anodized aluminum and (silver) clear anodized aluminum.
The retaining grommets are also ideal for the Kramer K-ABLE retractable cables. They mount on the side of the box and run up through the box and are then held on the grommet holes, they provide 3' of retractable cable.
To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.
Applications include: boardrooms, conference rooms, classrooms and lecterns.
In order to ensure a short lead time, minor assembly is required on most TBUS items.
Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.
- Table cutout: 6.23" x 4.85"
- Anodized aluminum top with tilting lid
- Mounting hardware included
- Works in tables up to 3" thick
- Warranty: 7 years
- UL and CE Qualified
Q & A
Ask a Question
|Date:||December 01, 2013|
I installed these at every chair in our conference room table. Through the holes I ran an HDMI cable, VGA with audio cable, data cable, and a USB cable. The box seems like it is made very well, I didn't notice that it came with a retracting lid when i ordered which was a nice bonus.
