Home > Range Extenders -> Cat-5 Transmitters -> HDMI -> Kramer -> PT-571 HDMI Twisted Pair CAT5 Transmitter

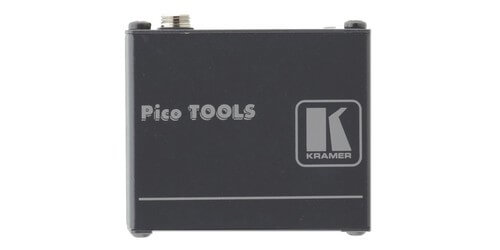

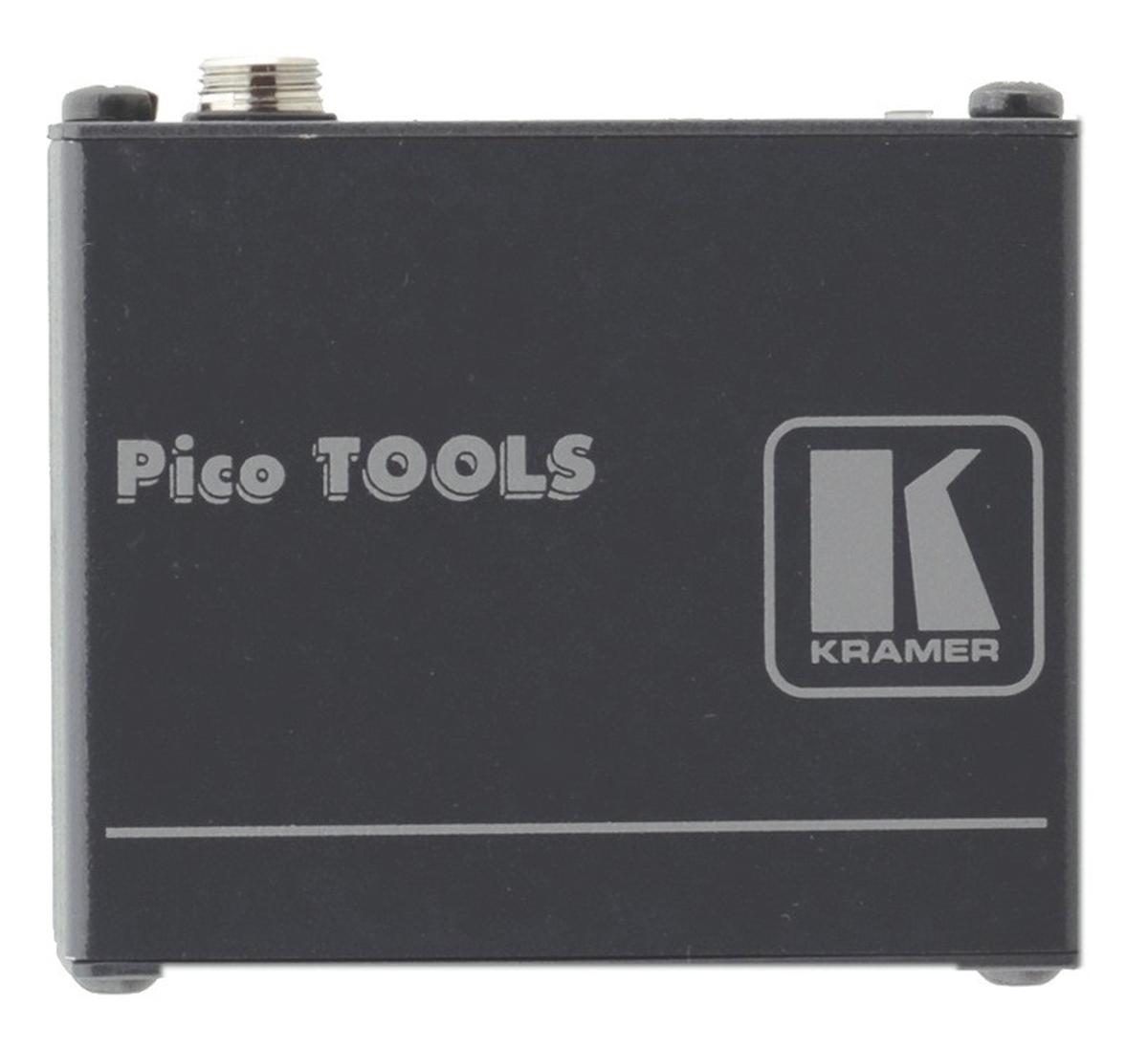

Kramer PT-571
HDMI Twisted Pair CAT5 Transmitter

Manufacturer SKU: 90-70832090
In Stock!
MSRP: $250.00
Our Price: $200.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top PT-571 Specifications

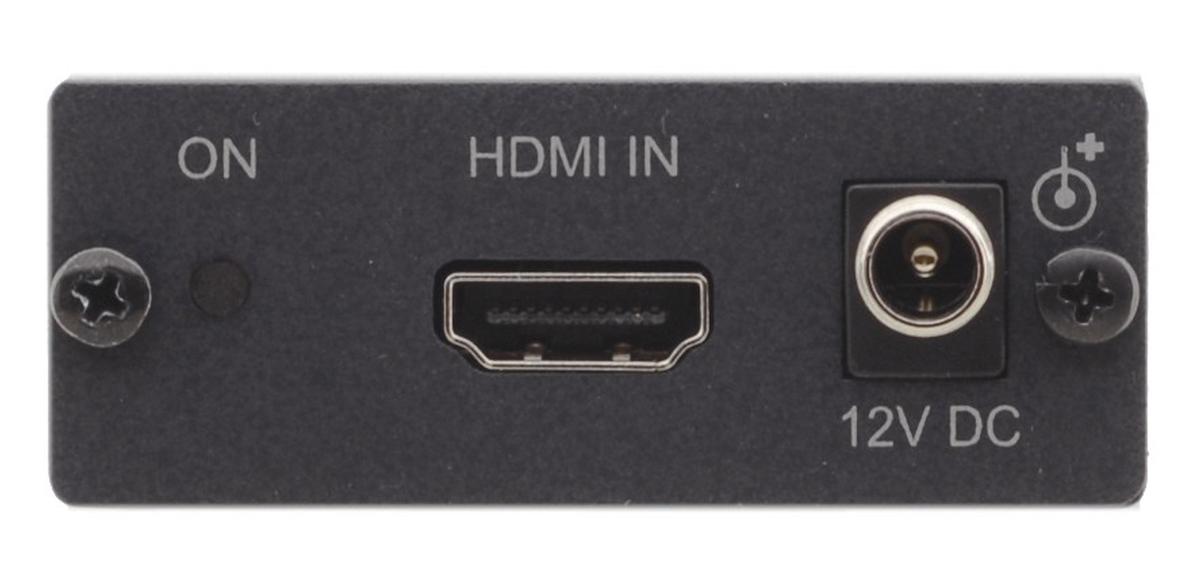

  • INPUTS: 1 HDMI connector

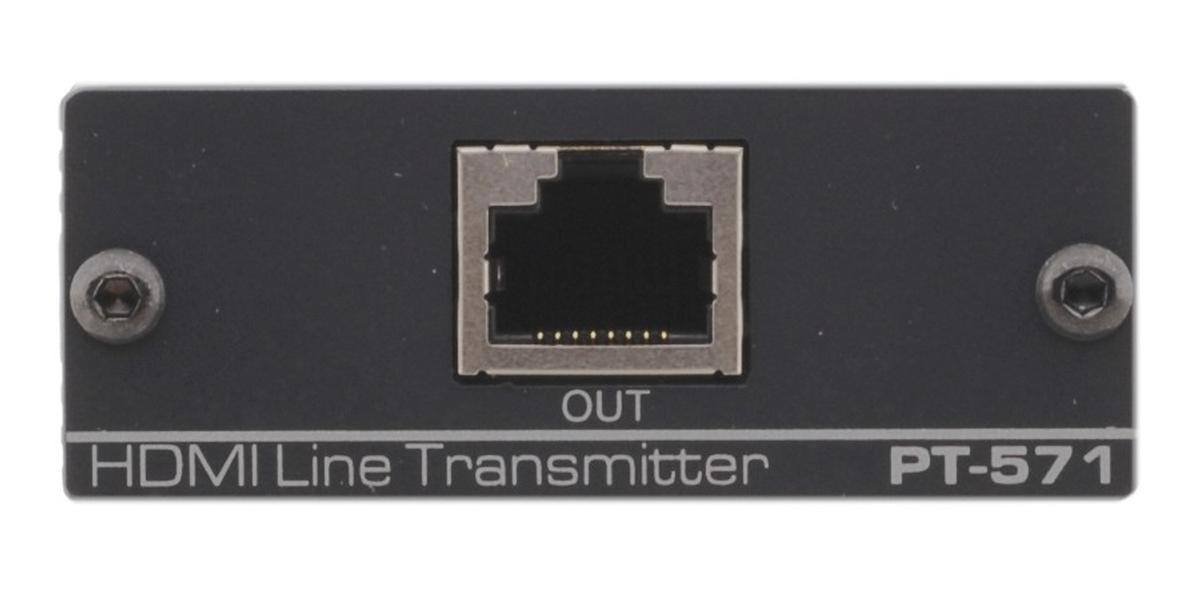

  • OUTPUTS: 1 DGKat twisted pair RJ 45 connector
  • BANDWIDTH: Supports up to 1.65Gbps bandwidth per graphic channel
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP
"Quick and easy to find what I was looking for."
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The Kramer PT-571 is a DGKat twisted pair transmitter for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572+ converts the twisted pair signal back to an HDMI signal.  You can send your HDMI signal via a 1080P signal up to 230' using C-DGK6-DGK6 cable.  When the PT-572+ is within 150' of the PT-571 the transmitter will power the receiver so the receiver doesn't need power.

Applications include: board, conference, and training rooms, presentation systems, signal distribution and home theater, or anywhere it is difficult to run an HDMI cable.  Typical HDMI cables start losing their signal above 50', that is when you can substitute CAT6 to send your HDMI signal.

Specifications

  • System Range: Up to 295ft at 1080i, or up to 98ft at 1080p on shielded BC DGKat524 cable. Up to 295ft at 1080i, or up to 230ft at 1080p on shielded BC DGKat623 cable. Up to 330ft at 1080i or up to 295ft at 1080p on shielded BC DGKat7a23 cable
  • DIMENSIONS (WDH): 2.4" x 2.1" x 1"
  • WEIGHT: 0.3lbs.
  • Warranty: 7 Years

Q & A

This product has no questions - ask one!

Ask a Question

Reviews

There are currently no reviews for this product.

Write a Review
