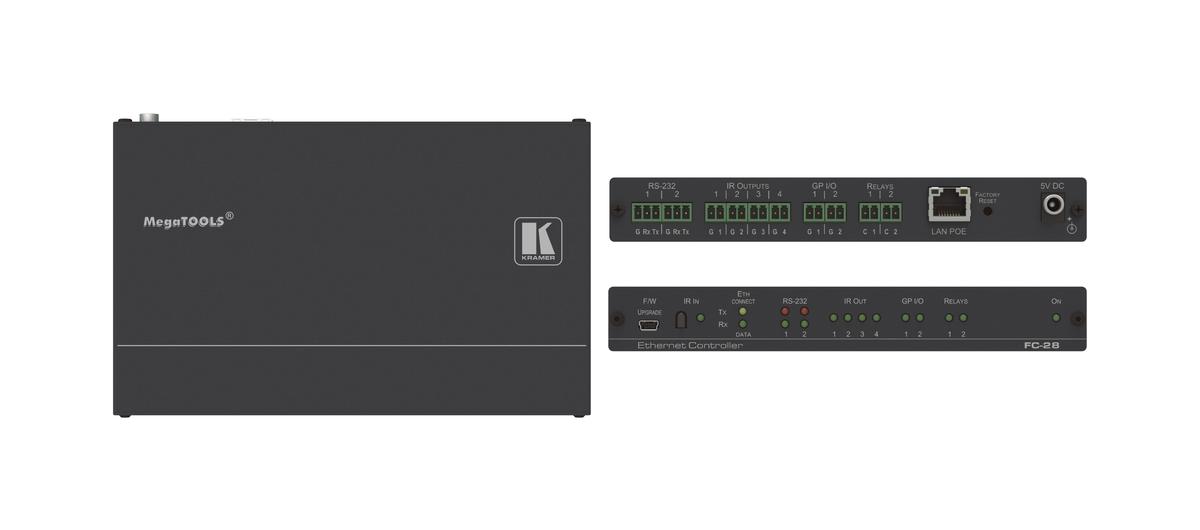

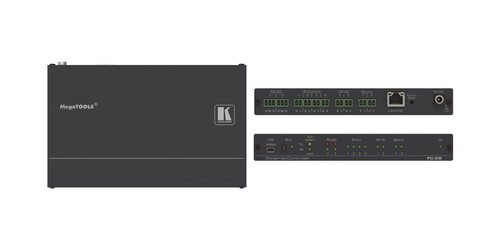

Kramer AV FC-28
Ethernet to Serial Port, IR, GPI/O & Relay Controller
- RS-232 control: Two RS-232 devices via Ethernet from a PC, tablet, smartphone
- IR control: Four IR ports for device control via IR blasters/emitters
- Provides input/output triggering for up to two devices via the GP I/O ports
- Provides control of up to two devices via built-in relays
-Timothy J.
Description
The Kramer The FC−28 is a bidirectional RS-232, IR control, GPI/O, and relay control signal converter to Ethernet. Two RS-232, four IR, two GPI/O, and two relay controllable devices can be controlled via an Ethernet or LAN connection. These Ethernet to I/O controllers bridge the gap between Ethernet infrastructures and I/O communication devices by offering bidirectional Ethernet to any I/O interface conversion. All setup and maintenance of the devices is done from built-in Web pages which are accessible using any common Web browser.
The Kramer FC-28 is an ideal companion to K-Touch control by receiving K-Touch Ethernet-based per-I/O port commands and converting them into I/O interface signals on the requested I/O port. Responses are sent back to all Ethernet connected panels
Specifications
- Provides control of a device from multiple Ethernet points (PCs or remote controllers), via a LAN or the Internet
- Integrated IR learning
- Includes: Virtual serial port manager
- Can be used as a PoE receiver
- Static or dynamic DHCP addressing
- Includes: 1 IR cable, power supply, bracket
