Kramer AV BCP-UNIKAT-500
U/FTP Cable for DGKat, HDBaseT, LAN System, Plenum - 500'
- Length: 500'
- For: DGKat, HDBaseT, LAN System
- Plenum Rated
- Low Smoke and Halogen Free Jacket

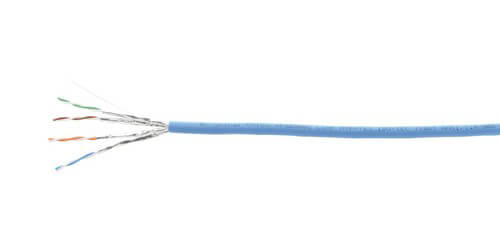

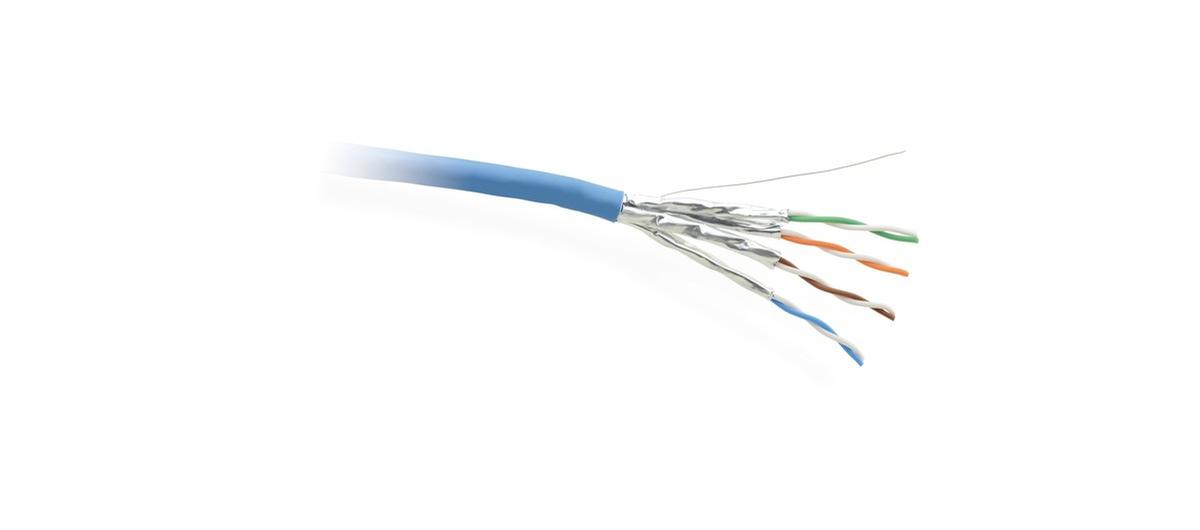

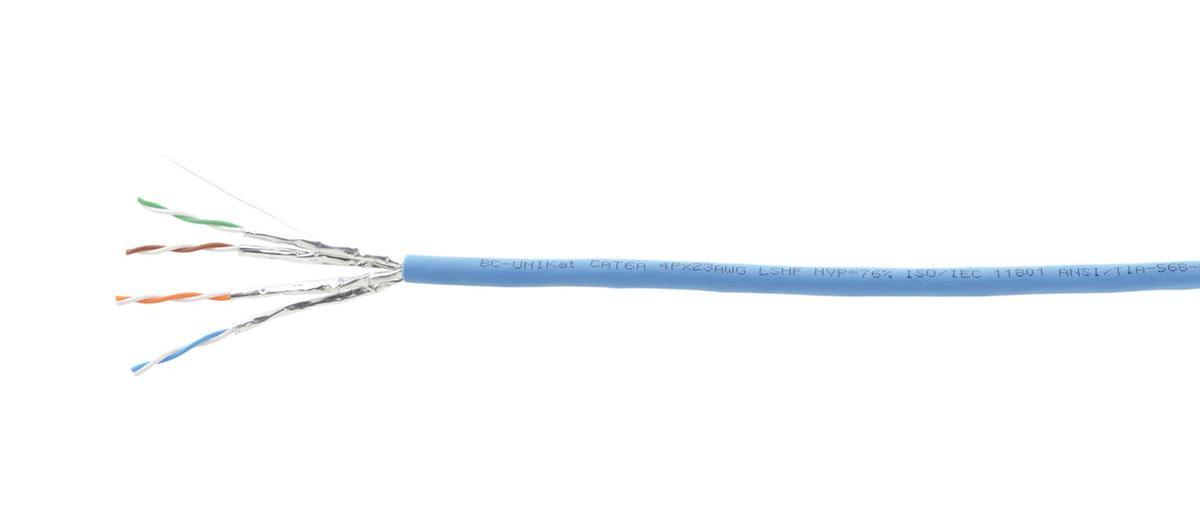

Featuring the BCP-UNIKAT-500 U/FTP Cable for DGKat, HDBaseT and LAN System from Kramer with Plenum Rating in the 500 foot length. This cable handles all of the latest technology signals with over four individually screen twisted pairs. It is capable of running Kramer's DGKat technology, 4K UHD HDBaseT, or LAN system ensuring optimum signal performance. This Plenum Rated cable can be installed in walls, ceilings, or anywhere plenum rated cabling is required.
The four shielded twisted pairs are made with 23AWG solid copper conductors that are cabled together within an un-shielded outer jacket for quality construction. The cable is low smoke and halogen free (LSHF), and has been optimized for use with any of Kramer's twisted pair digital transmitter/receiver kits. It can be terminated with RJ-45 connectors for use with shielded transmitter/receiver kits (DGKat and HDBaseT. This cable comes loaded on wooden drums.
- Conductors: Annealed Copper, 4 x 2 x 23AWG
- RJ-45 Connector: larger diameter 23AWG twisted pair cable requires a special RJ45 connector, Kramer's CCR-RJ45-TP6
- HTBaseT Recommended
- Drain Wire: 90% tinned copper
- Insulation Material: Skin/foam/skin HDPE
- Voltage Rating: 30V
- Warranty: 7 years
