Kramer AV 617R/T
4K HDR HDMI Transmitter/Receiver over Extended-Reach MM Fiber Optic
Manufacturer SKU: 94-0006150
Satisfaction Guaranteed!
MSRP: $1,405.00
Our Price:
$1,124.00
Top 617R/T Specifications
- Max. Resolution: 4K @60Hz 4:4:4 (4096x2160)
- Data Rate: Maximum 6 Gbps per channel
- Compliance: Supports HDMI 2.0, HDCP 2.2, EDID, and CEC
- Transmitter Ports (Source End)
"Excellent experience - thank you for all your help"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

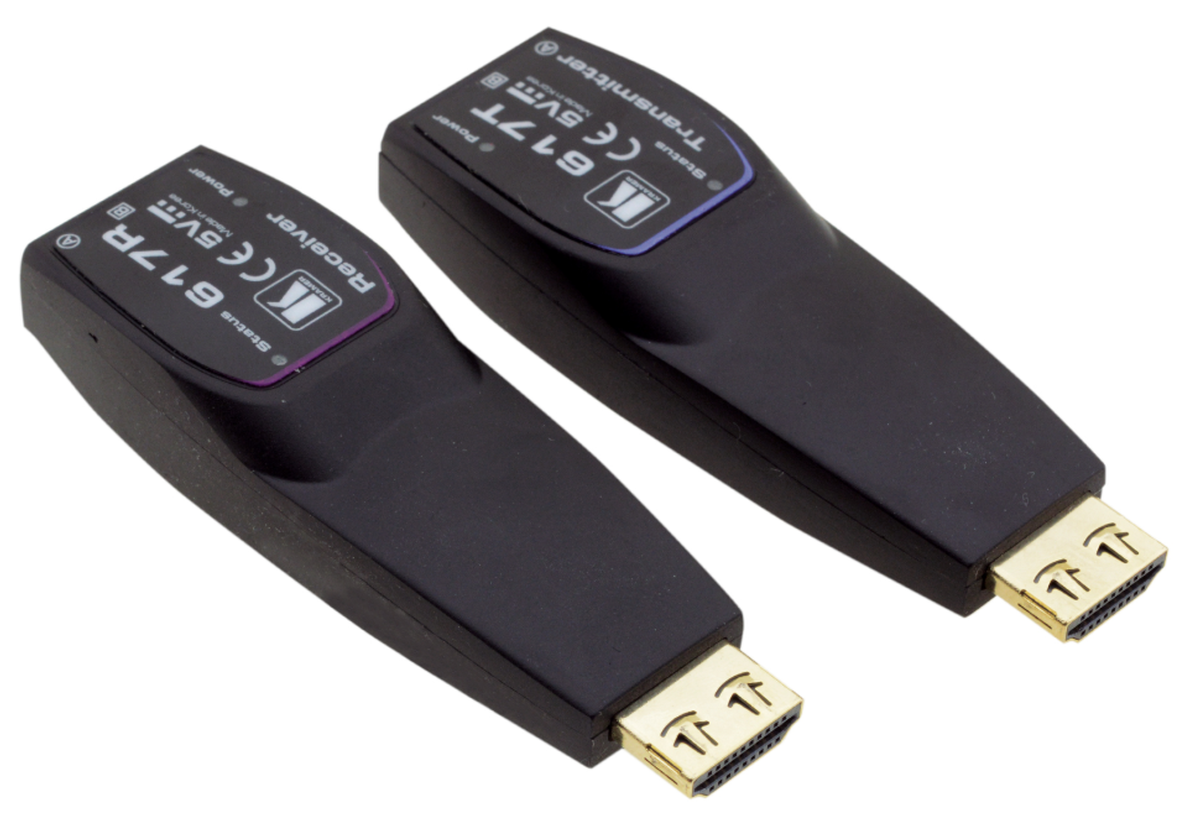

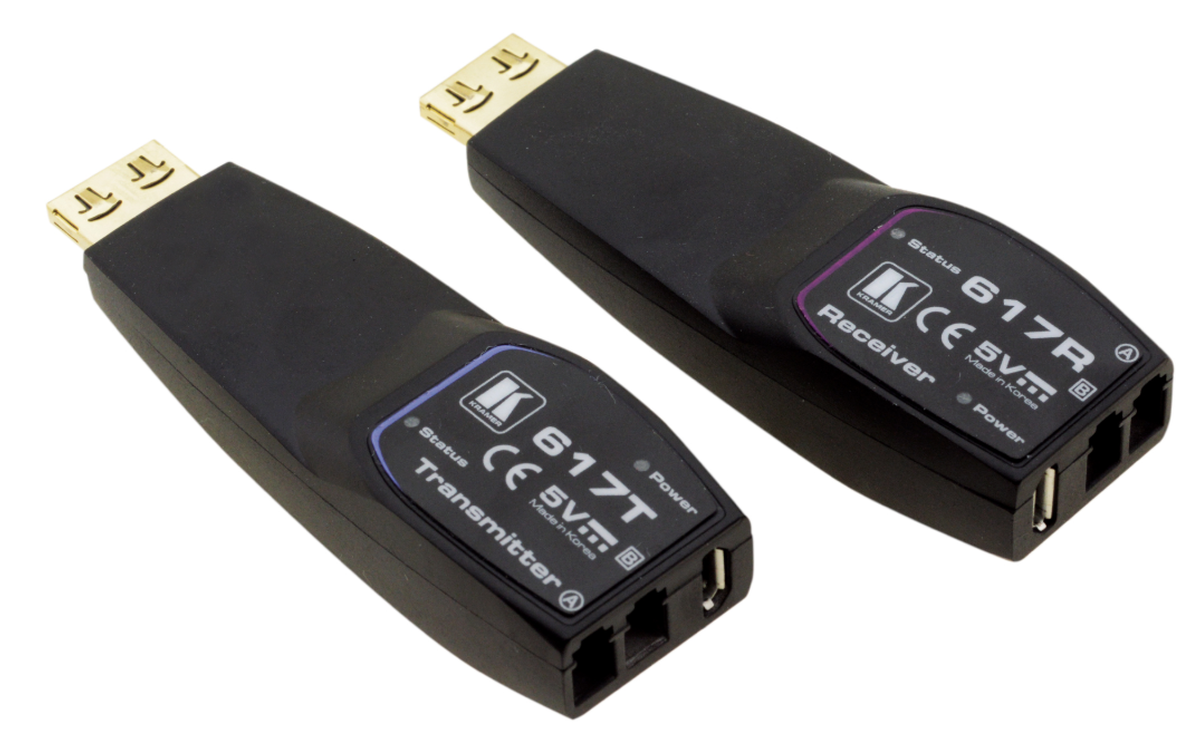

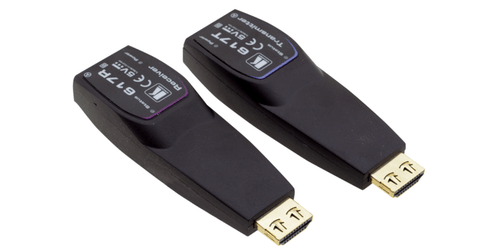

Kramer's receiver-transmitter kit, the 617R/T, transmits 4K HDR HDMI signals over multi-mode optical fiber. Using this receiver-transmitter kit, you can send 4K signals up to 328 feet. Enjoy peace of mind that this equipment is built to last: the connectors on the receiver and transmitter are 24K gold-plated. This protects them from corrosion, ensuring the best connectivity.
Specifications
- 617T: Male HDMI connector
- 617T: Micro-USB (for power supply)
- Receiver Ports (Display End)
- 617R: Male HDMI connector
- 617R: Micro-USB (for power supply)
- 5V: Via USB source, Via external source, or HDMI PIN #18 (617T only)
- Consumption: <2.5W
- Structure: Dual Multi mode OM3 (50/125um) glass fiber
- Optical Connectors: Duplex LC connectors
- Max. Fiber Cable Attenuation (850nm): 2.5dB/KM
- Max. Skew: 0.4ns
- Max. Insertion Attenuation: 0.5dB
- Total Optical Attenuation: 1dB max @ 328ft/100m extension
- Maximum Length: 330ft
- Standards Compliance
- Environmental: RoHS (2011/65/ EU)
- Included Accessories
- 2 Micro USB to USB type A cables
- 2 Wall mount power adapters
