FSR TB-IPS-KITA

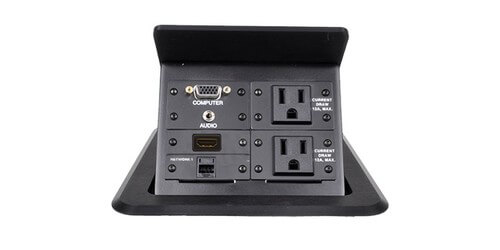

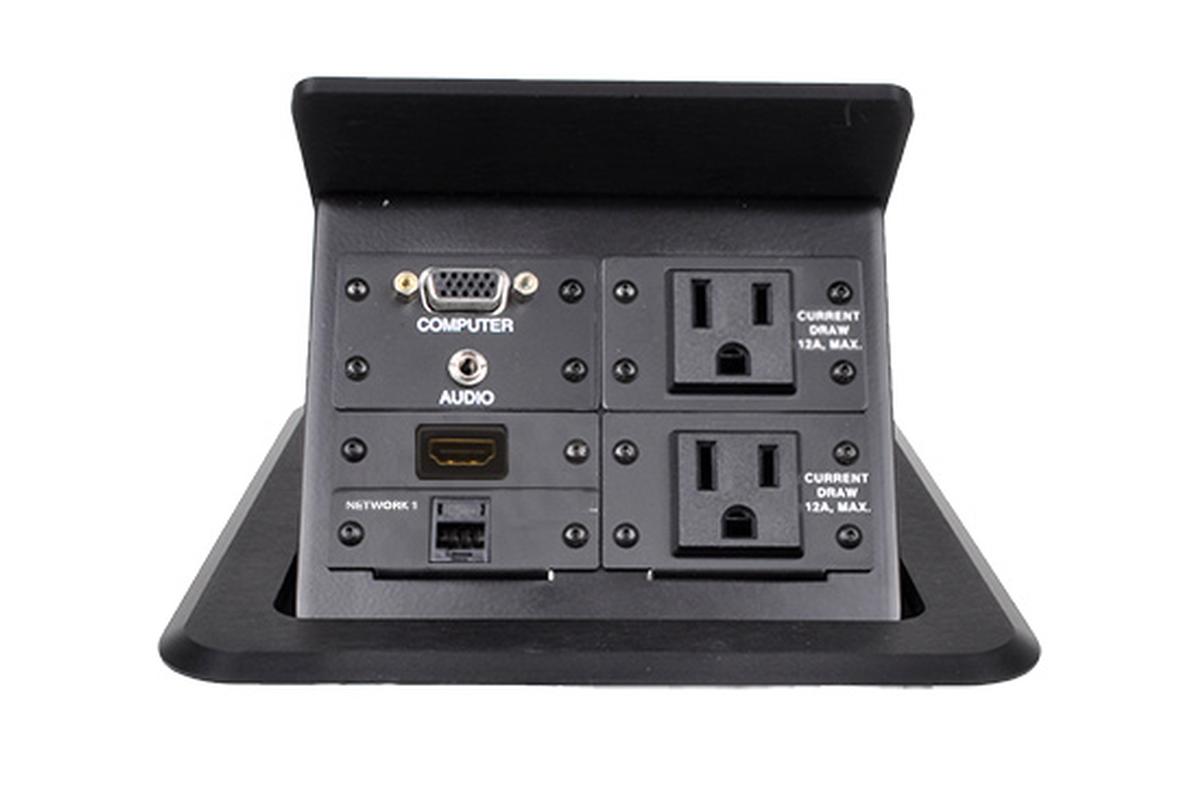

Tilt Up AV Table Box with 2 AC, 1 HDMI, 1 VGA, 1 Data
- Color: Black anodized aluminum
- Connections: 2 power with 9' cords, 1 female to female HDMI, 1 female to female CAT6, 1 female to female 15 pin VGA, and 1 female to solder 3.5mm audio
- Tilts open via spring when pressed

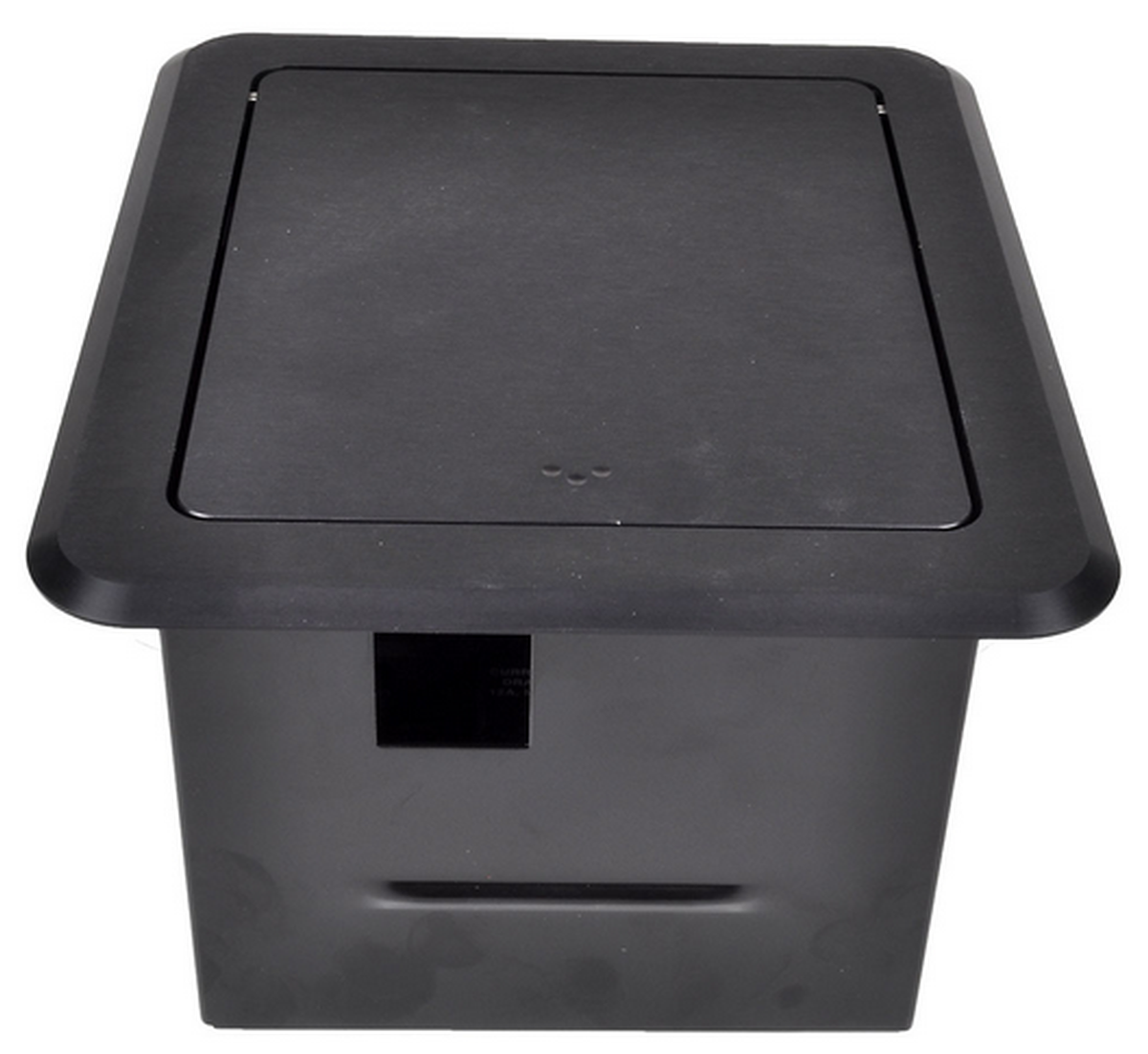

- Press down and the unit latches shut flush with the table
Description
The FSR TB-IPS-KITA is a tilt up table box for your conference room table, the finish is a beautiful black anodized color that looks modern in any room. The box installs by cutting a hole in the table, simply drop it in and secure to the underside with the included brackets. After installed and closed the unit lays flush with the table, the elegant beveled edges keep paper and other items from getting caught. When you are ready to use simply press the top and the spring automatically tilts the top open showing your connections.
The connections included are 2 power with 9' cords, 1 HDMI, 1 CAT6, and 1 VGA with audio. All connections are female to female except the audio which is solder.
The configuration of this model can be changed to meet your requirements. To request a quote for a different configuration or more connections please call us at 888-999-3759, click here to email us, or via Live Chat.
Specifications
- Installs with included brackets and thumb screws that secure to the underside of table
- The unit is modular so connections can be changed in the future as your connectivity needs change
- Bezel dimensions: 7.94" x 7.63"
- Cutout dimensions: 7.25" x 7.18
- Table thickness: .75" to 2.25"
- Depth under table: 4.5"
- Warranty: 1 year
Reviews
| Name: | Kevin |
| Rating: | |
| Date: | October 10, 2014 |
|
This is a nice little box at a reasonable price, the quality was exceptional and looks great in our table. What sold me on it was the fact that it was modular and I can change out the connections if I ever need to. |
|
