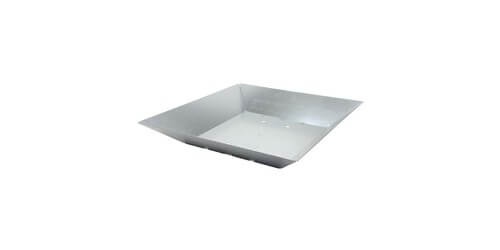

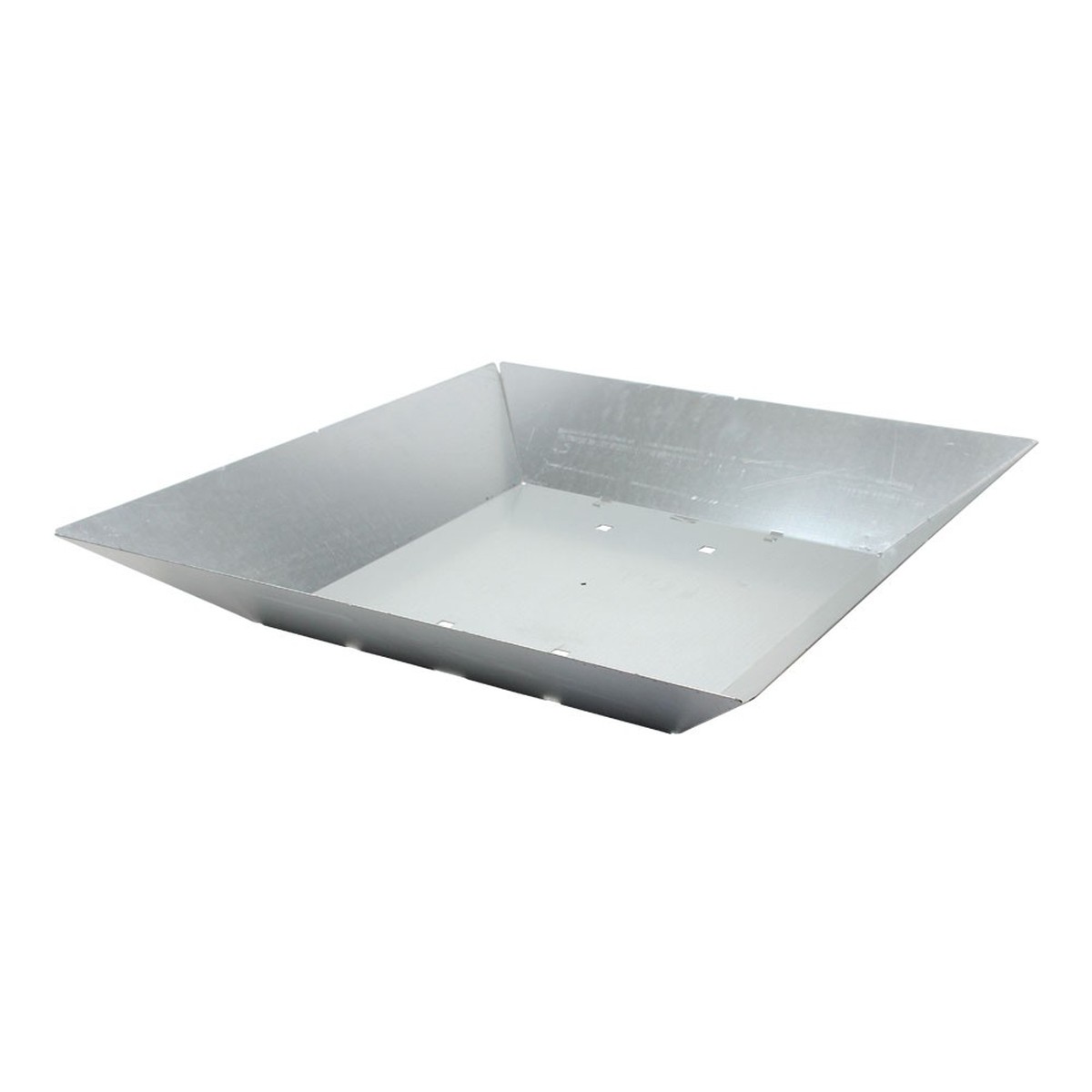

FSR FL-GRD2
2" Grade (Soil or Gravel) Floor Box Pour Pan Mounting Kit
- Depth: 2" Provided with four 5" adjustment legs to keep level
- Compatible with FL-500P, FL-600P, FL-700, FL-710, FL-1000, FL-2000, FL-H20-1
- Square bottom area: 15 3/4"
- Weight: 8.55lbs
Description

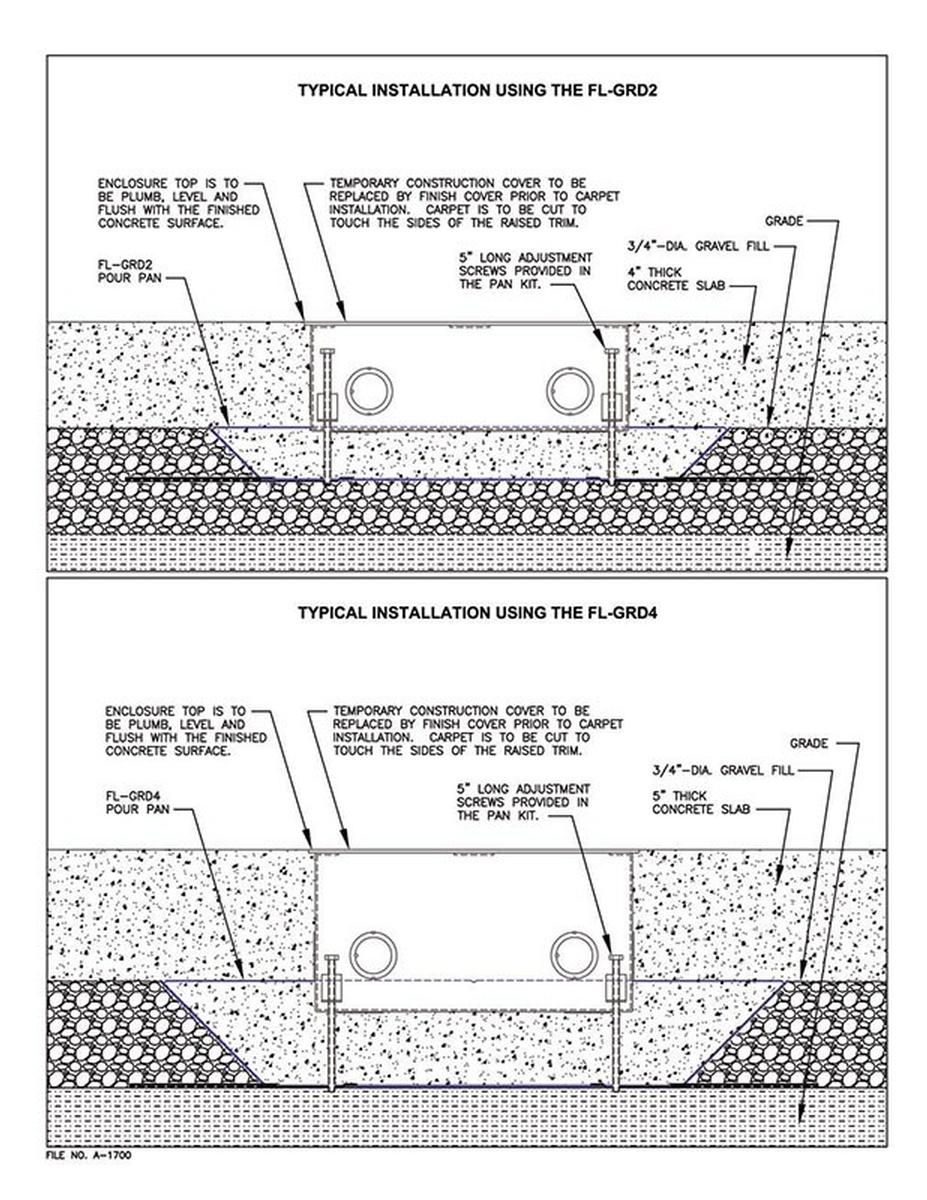

The FSR GRD-2 is a 2" deep pour pan for concrete floor boxes that would otherwise rest on soil or less than 2" of concrete. If your application is a poured concrete floor, but the box may rest on soil, rock, gravel, etc., you must first install the Pour Pan. The Pour Pan is set into the grade below the floor box and allows concrete to flow around and under the box to prevent the floor box from contacting the grade. The unit comes with extended length leveling feet, and the unique “pan wings” prevent the pan from shifting during the pour.
The Pour Pan is available in two depths, and you select the depth based on the thickness of the pour and the depth of the floor box to be installed. The pan is designed to provide a minimum of approximately 2” of concrete under the box. Select which model pan is used based on structural and site requirements.
A simple formula for selecting the proper Pour Pan: Depth of Box + 2 minus the depth of the pour = Pour Pan model.
