ConferX AC-CXWP-KVM-KIT
AC-CXWP-KVM-KIT HDMI Wall Plate Extender Kit with KVM Control
- AC-CXWP-KVM-KIT
Description

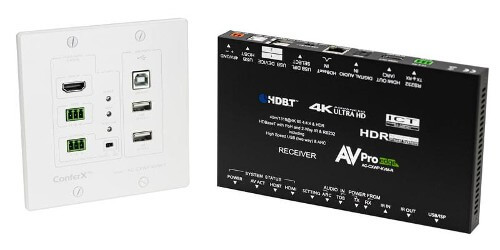

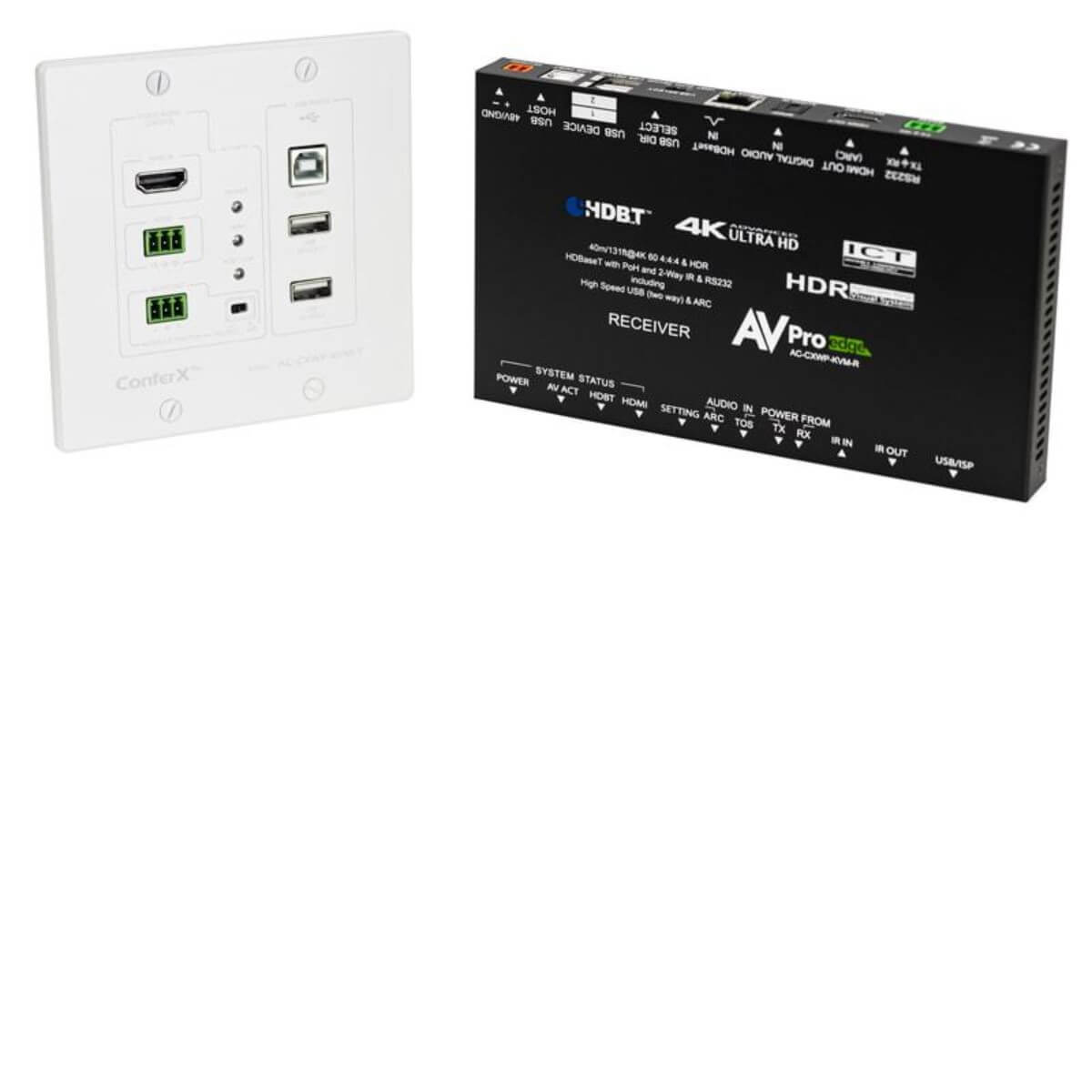

The ConferX AC-CXWP-KVM-KIT sends HDMI and USB 2.0 over one category cable. It pairs a wall plate transmitter with a small receiver. This making it possible to place a laptop connection at a table or wall while the display or computer sits elsewhere.
Runs reach 40 m (131 ft) at 4K or 70 m (230 ft) at 1080p on Cat 6A. The kit accepts up to 4K60 4:4:4, using Invisible Compression Technology (ICT) for signals above 10.2 Gbps. Both units have USB host and device ports. These allows a keyboard, mouse, microphone or other USB device at one end to connect to a computer at the other. Power over HDBaseT runs both units from one supplied 48 V power supply.
The transmitter is a dual-gang wall plate of about 4.5 x 4.56 inches and weighs 1 lb. The receiver weighs 1.2 lb and mounts with the included brackets. Total power use is 12 W peak. HDMI audio extends to Dolby Atmos and DTS:X, and you can extract audio from either ARC or the HDMI source. HDMI cables at each end are rated to 50 ft passive or 130 ft active optical, using Bullet Train cable.
Key Features
- HDR10, HDR10+, HLG and Dolby Vision at 24/30 fps
- HDCP 2.2 and earlier
- 4K-to-1080p scaling in the transmitter
- EDID options, including EDID copy
- ARC support and extracted audio at the transmitter
- RS-232 on both units
- Test patterns from either unit
Typical Applications
Suits classrooms, conference rooms and lecterns that need one cable for video and USB. For other wall plates and kits, check HDBaseT extender kits.
Frequently Asked Questions
Can I use it with a webcam or USB microphone?
AVPro Edge lists USB devices such as microphones as supported. Check bandwidth for your device, as USB 2.0 has limits and some cameras need more.
Does the kit include a wall plate cover?
Yes. It includes one white Decora cover, along with long and short screws.
How far can 4K travel?
Allow up to 40 m on Cat 6A. If you need more, consider a longer-range extender such as the AC-EX100-444-KIT.
Is the picture compressed?
Signals above 10.2 Gbps use ICT, which AVPro Edge designs to avoid banding and visible artifacts.
