AVPro Edge AC-CXWP-HDMO-BKT
ConferX HDMI Single Gang Decora Wall Plate HDBaseT Extender Kit
- HDMI 2.0 Input
- HDCP 2.2
- Single-gang, Low Heat
- 4K is up to 40 meters
Description

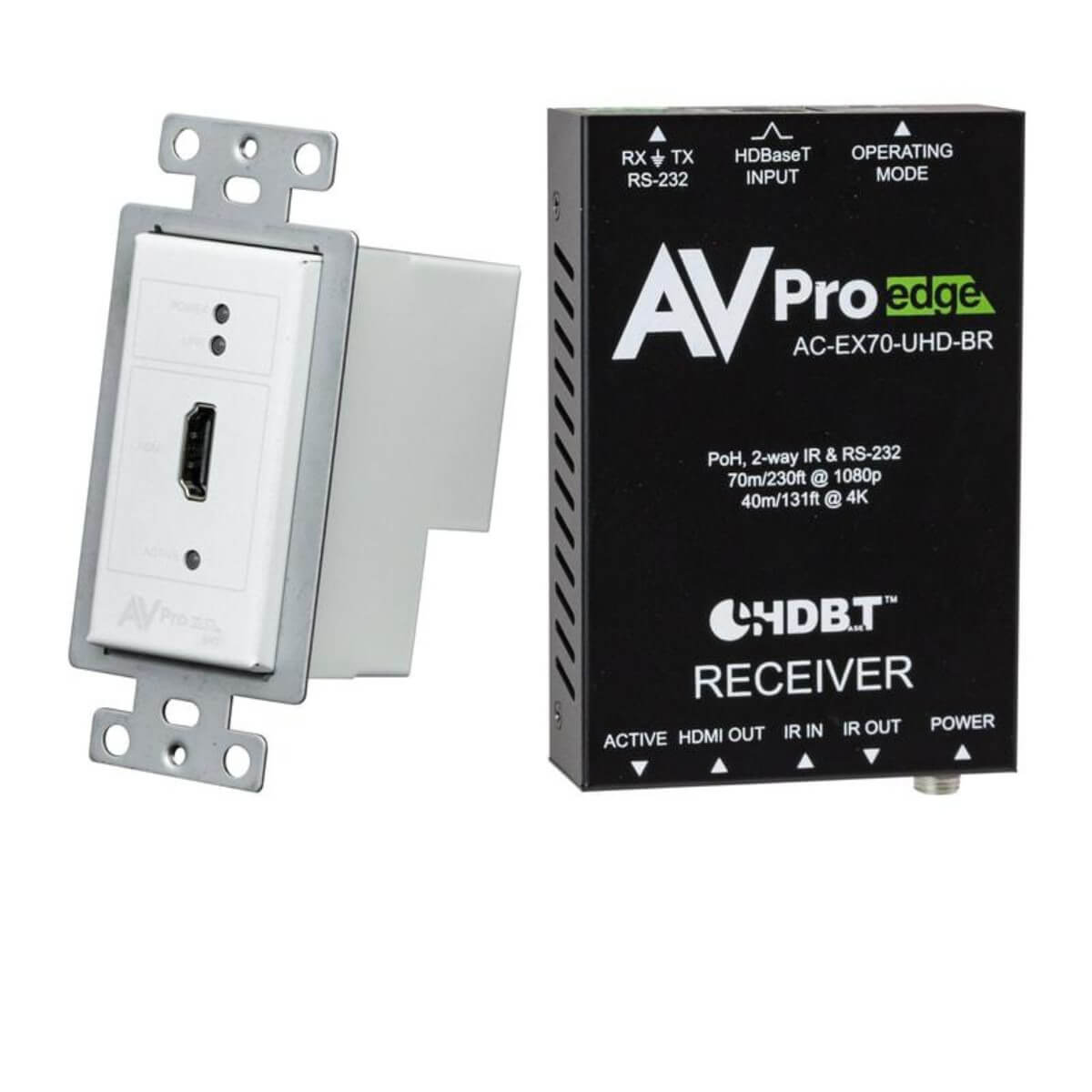

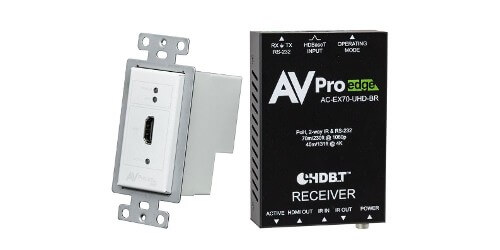

The AVPro Edge AC-CXWP-HDMO-BKT is a basic HDBaseT wall plate transmitter and receiver kit from the AVPro Edge ConferX line. It brings HDMI to a standard single-gang Decora-style plate that fits any standard mud ring, then carries the signal over standard category cable to a matching receiver.
It handles 4K at 10.2 Gbps (up to 4K60 4:2:0 8-bit) and extends a 4K signal 40 meters or a 1080p signal 70 meters (230 ft) over Cat 6a.
It is an affordable choice for single offices, home theaters, conference rooms, huddle spaces, and for any simple HDMI extension job. It works with PCs, Apple products, tablets, Blu-ray players and other HDMI sources, including those outputting 4K at 30Hz.
A single-gang footprint keeps installs clean and lets you mount the plate in a wall or on a desk or podium top. Category cable is easy to terminate to length in the field, unlike manufactured HDMI cables, which become unreliable beyond about 25 feet.
As AVPro Edge's most basic HDMI extender, it leaves out Ethernet, ARC, eARC, USB, audio extraction, I-Pass IR and longer 4K distances. Please note the following before ordering: this product is sold as a matched kit and must be paired with its companion unit.
It powers over cable (PoC) rather than Power over HDBaseT (PoH), which means it will not work with other HDBaseT solutions, and PoC delivers power without negotiation, which can damage incompatible devices.
It also cannot serve as a transmitter or receiver for any matrix switch. For matrix applications, see our HDBaseT receivers and matrix switchers.
Key Features
- Single-gang Decora plate: fits a standard mud ring, wall, desk or podium.
- Distance: 40 m at 4K and 70 m (230 ft) at 1080p over Cat 6a.
- 10.2 Gbps HDBaseT: up to 4K60 4:2:0 8-bit, with 4:4:4, 4:2:2 and 4:2:0 chroma supported.
- Affordable basics: no Ethernet, ARC, eARC, USB, audio extraction or I-Pass.
- Matched kit: must be used as a transmitter and receiver pair.
- Power over cable: PoC powering, not compatible with PoH devices.
Typical Applications
A tidy fit for huddle spaces, private offices and home theaters that need one clean HDMI wall connection. Browse more HDBaseT wall plates and HDBaseT kits.
Frequently Asked Questions
Can I use the AC-CXWP-HDMO-BKT with a matrix switcher?
No. It must be used as a matched transmitter and receiver kit and will not work as a transmitter or receiver for any matrix switch.
Why can't I mix it with other HDBaseT products?
It uses Power over Cable (PoC) instead of Power over HDBaseT (PoH). PoC supplies power without negotiation, which can damage incompatible devices.
How far will it send 4K?
Up to 40 meters at 4K and 70 meters (230 ft) at 1080p over Cat 6a.
What features are not included?
Ethernet, ARC, eARC, USB, audio extraction, I-Pass IR and longer 4K distances are not available on this basic model.
Specifications
- HD 1080P is 70 meters
