Biamp Devio SCR-20C
Conferencing Hub
- Network Connection
- RJ-45 with Ethernet cable: Cat 5e and above

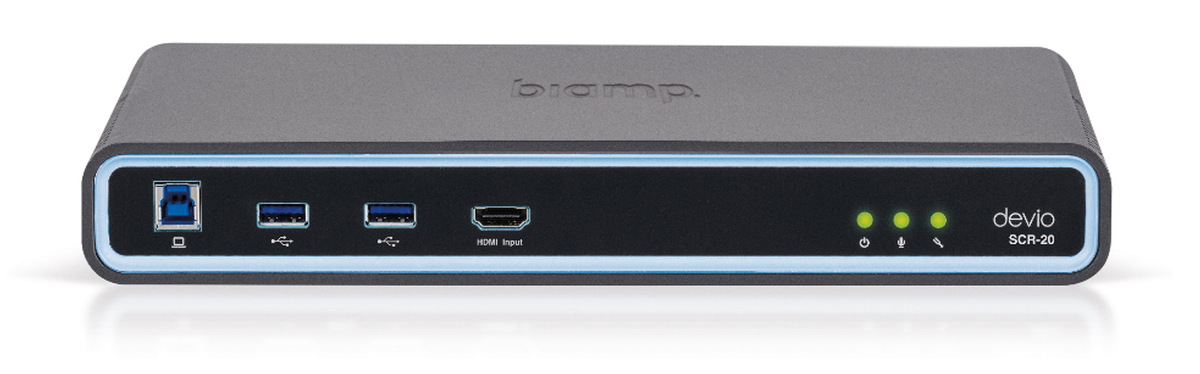

- Front Panel Indicators
- Mic Status Indicator: Green/Red LED
-Gregory W.
Description
Biamp's SCR-20C is a small form-factor conferencing hub that provides users with various essential conferencing features. This hub is designed to work seamlessly with web-based conferencing systems to enhance communication in conference and huddle rooms alike. This hub supports pass-through HDMI connectivity to a single in-room display, or up to two monitors with USB video via DisplayLink1 USB graphics technology.
In addition to the innovative Beamtracking microphones, speaker connectivity options include a 20W amplifier, RCA line-out, and HDMI audio. The SCR-20C arrives packaged with a mounting bracket for under-table installation, as well as your choice of a and one Biamp DTM-1 tabletop or one DCM-1 ceiling microphone. The compatibility of this conferencing hub is almost endless, with some connectivity features including the following:
- Works with PCs running web-based conferencing solutions (Microsoft Skype for Business/Microsoft Teams, Zoom, BlueJeans, Google Hangouts/Google Meet)
- Supports both Windows and Mac PCs using standard audio drivers
- Auto-setup validates device connections, adjusts room levels, and sets speaker EQ to optimize audio quality
- Firmware updates can be scheduled and deployed to multiple Devio units via the SAU
Specifications
- Room Tuning Indicator: Green/Red LED
- Power Indicator: Green/Red LED
- Power
- 24V DC 60W
- Video
- Supported Resolutions: 640 x 480p (60 Hz), 720 x 480p (60 Hz), 720 x 576p (50 Hz), 1280 x 720p (50/60 Hz), 1920 x 1080p (50/60 Hz), *3840 x 2160p (30 Hz)
- Physical Interface
- HDMI HDCP Support: 1.4
- HDMI Audio Formats: 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit
- Analog Audio Output (RCA)
- Frequency Response (20 Hz - 20 kHz, FS): +0/-0.25 dB
- THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS): < 0.005%
- Dynamic Range (THD+N < 0.005%): 107 dB, A-Weighted
- Output Impedance (unbalanced): 100
- Maximum Output: +8.5 dBu
- Sampling Rate: 48 kHz
- D/A Converters: 24-bit
- Amplifier
- Number of Channels: 1
- Continuous Power Output (THD+N < 0.025%): 20 W into Rated Load Impedance
- Frequency Response (20 Hz - 20 kHz): +0.2/-0.5 dB
- THD+N (1 kHz, 20 kHz bandwidth, 1 W): < 0.03%
- Dynamic Range (THD+N < 0.5%): 100 dB, A-Weighted
- Minimum Operational Load: 4
- Intermodulation distortion (SMPTE, 60 Hz/7 kHz, 4:1, 1W): < 0.07%
- USB: Bit Depth: 24-bit
- Sample Rate: 48 kHz
- Device Charging: **Up to 5 W
- Overall Dimensions: Height: 1.8 inches (46 mm) Width: 11.2 inches (284 mm) Depth: 6.9 inches (175 mm)
- Weight: 2.0 lbs (0.9 kg)
- Environmental
- Ambient Operating Temperature Range: 32-104 F (0-40 C)
- Humidity: 0-95% relative humidity (non-condensing)
- Altitude: 0-6,600 ft (0-2000 m)
- MSL Compliance: FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe)
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems' two-year warranty
