AVPro Edge AC-SC-1X
40 Gbps 8K HDMI EDID Manager, Pixel Scaler, Audio Extractor & Reclocker with loop-out, toslink
- 8K ->
- 4K, 8K ->
- 1080p, 4K ->
- 1080p Scaling
-Jeff A.
Description

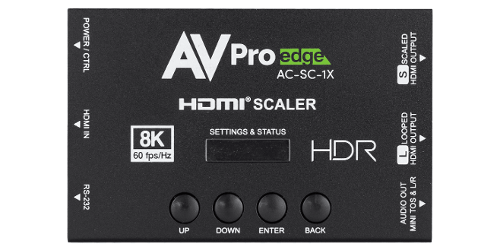

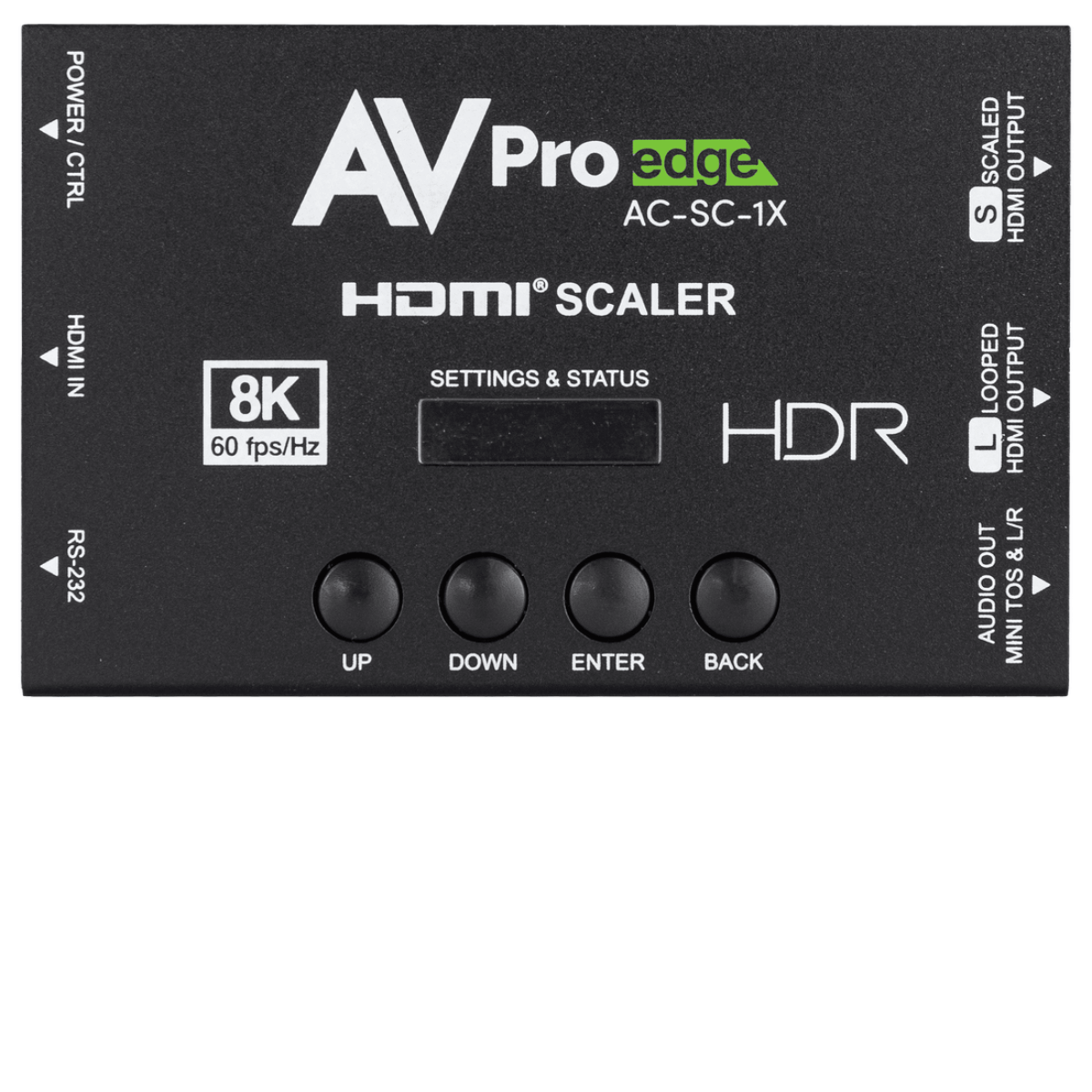

The AVPro Edge AC-SC-1X handles HDMI signals up to 40 Gbps and can downscale 8K to 4K or 1080p. Its dual HDMI outputs let an integrator design a route around displays or audio equipment from different generations. It also provides EDID management and optical audio extraction.
EDID is the information that tells a source what a connected device can accept. The scaler offers presets, display EDID copying and an EDID Blend option that can combine audio and video capabilities from two devices.
Those tools are useful when one destination determines the picture format and another handles audio. The compact unit fits near the rack or display where the signal needs to be adapted.
It is useful when the video source can deliver a higher resolution than one destination accepts. It is designed for when several sources routed need to be independent, use an 8K 4x2 HDMI matrix switcher for source selection and place the scaler where the signal needs adaptation.
Matching the source and displays
Place the scaler where the technician can change settings and reach both HDMI connections. Document which output goes to each device and save the EDID configuration used during testing.
This is particularly helpful if the main display or the audio processor will be replaced later and the handshake needs to be checked again.
When it comes to setting up a gaming or demo system, establish which screen should receive the high-bandwidth signal and which output needs scaling. Test protected content and the intended refresh rate on both paths. If using optical audio, confirm the supported format at the receiving device before locking the source's audio configuration.
Start with the format the primary display needs and check how the other destinations handle it. EDID can influence the source output, so note which setting you used once the system is working.
That record makes it easier to retest the system when a display or source is replaced.
Specifications
- EDID Management with EDID Blend
- Audio de-embedding with 3.5mm Mini TOS or HDMI
- 8K Support up to 40Gpbs
- 120FPS Support with 4K and 1080p signals
