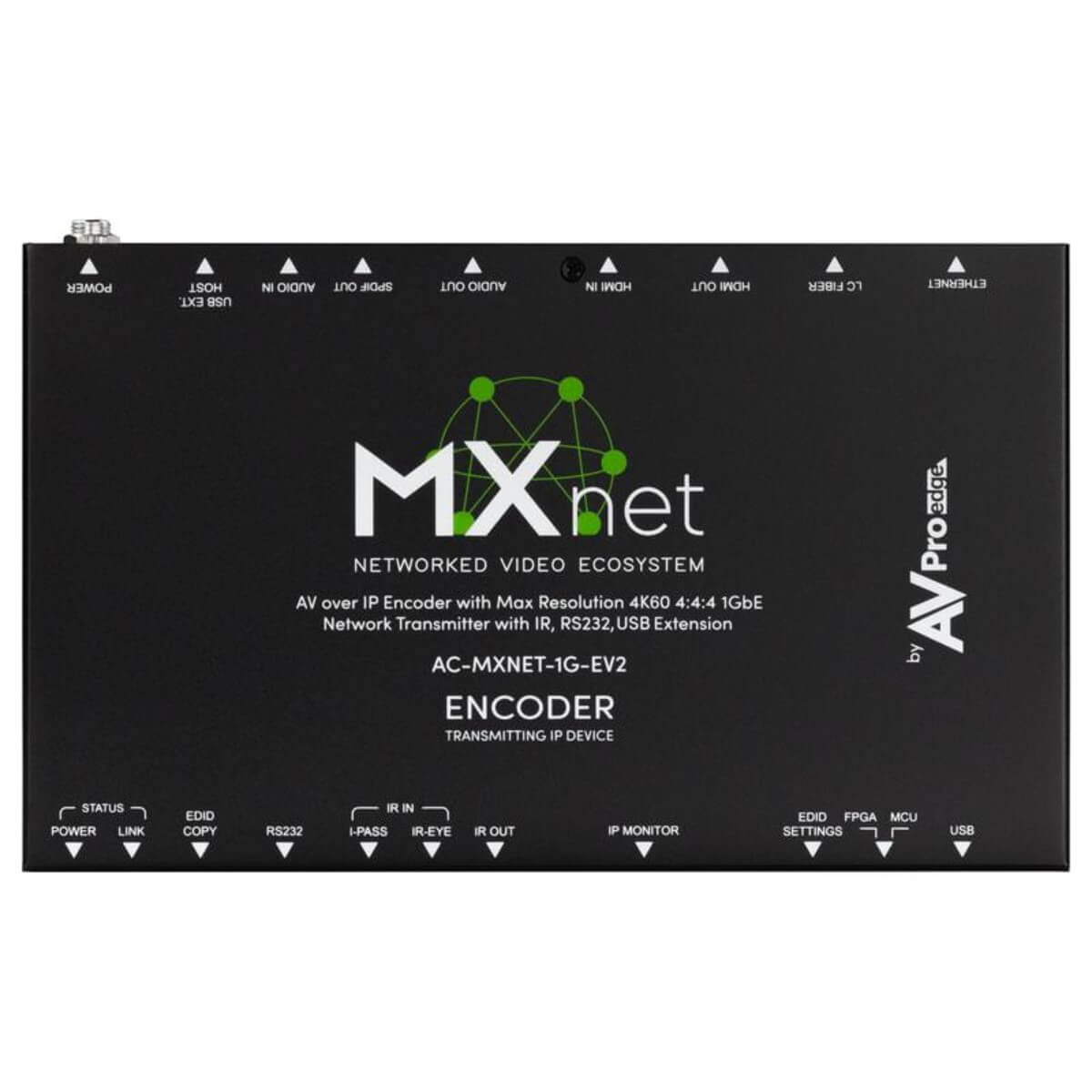

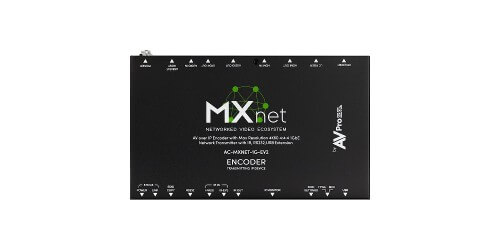

AVPro Edge AC-MXNET-1G-EV2
MXNet 1G Evolution II Encoder
- Supports: 4K/60fps 4:4:4, HDMI 2.0, HDCP 2.3, HDR, HDR 10
- Supports: Dolby Vision
- Optimized Compression for Enhanced Imaging
- High Bitrate multi-channel support for Dolby Atmos and DTS:X
Description
The AVPro Edge AC-MXNET-1G-EV2 is the Evolution II encoder in the MXnet 1G AV-over-IP platform, the gateway where a signal enters the system. It takes a connected HDMI source, encodes the audio and video into a multicast stream sending it over category cable or fiber to an MXnet switch or any compatible multicast-capable managed Layer 3 switch. Any AC-MXNET-1G-DV2 decoder on the same network can then pick up the stream.
A new AVPro Edge ASIC brings native support for 4K/60 4:4:4 signals (RGB and YCbCr at 10 and 12-bit) with Dolby Vision, HDR10, HDR10+ and HLG, and high-bitrate multichannel audio including Dolby Atmos and DTS:X.
Encoding uses an optimized JPEG 2000 codec at roughly 200 Mbps for 1080p, 300 Mbps for 4K/30 and a peak of 850 Mbps for 4K/60. Latency is about 16 ms at 60Hz, and an ultra-low-latency mode brings it down to 2-4 ms. RS-232, IR and USB can ride inside the encoded data packets.
The unit is fan-less with chip-top heatsinking and typically draws 7 watts or less. Cat 6a is strongly recommended for all MXnet deployments, although Cat 5e will carry MXnet 1G signals. Remember that Evolution II encoders and decoders must be used together; they can share a network with first-generation devices but are not interoperable with them. Pair with the AC-MXNET-SW24 or AC-MXNET-SW48 switches for out-of-the-box multicast tuning.
Key Features
- 4K60 4:4:4 encoding: RGB or YCbCr, 10 and 12-bit, with major HDR formats.
- Low latency: about 16 ms at 60Hz, 2-4 ms in ultra-low-latency mode.
- JPEG 2000 with Genlock: visually lossless streams with frame-synced video walls.
- Control in the stream: RS-232, IR and USB travel inside the encoded data.
- Efficient design: fan-less, typically 7 watts or less.
- HDMI 2.0b input: supports HDCP 2.2 and earlier.
Design and Installation Notes
MXnet is a complete, proprietary AV-over-IP ecosystem from one manufacturer, covering encoders, decoders, managed switches and a central control unit managed through the in-house MXnet Mentor setup and control solution. A TAA-compliant version of the AC-MXNET-1G-EV2 is also available for projects with sourcing requirements.
Typical Applications
Use it to feed classrooms, houses of worship, lobbies and video walls from any HDMI source without the limits of a fixed-size matrix. Explore AV over IP extenders or the MXnet collection.
Frequently Asked Questions
Will the EV2 work with older MXnet decoders?
No. Evolution II encoders and decoders must be used in EV2-to-DV2 pairings. Older devices can share the network but are not interoperable.
What switch should I use?
Any multicast-capable managed Layer 3 switch. AVPro Edge MXnet switches ship tuned for MXnet traffic.
How much latency does it add?
Latency is about 16 ms at 60Hz, and ultra-low-latency mode drops it to 2-4 ms.
Does it support USB?
Yes. USB, IR and RS-232 signals can be transported in the encoded data packets.
Specifications
- Downstream decoders now support ARC and eArc
- Genlock frame-syncing ensures video walls are free from image-tearing
- Near-zero latency, visually imperceptible
- NOT COMPATIBLE WITH V1 SYSTEMS
