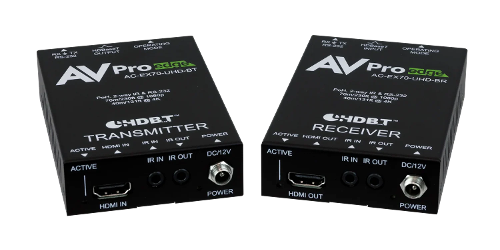

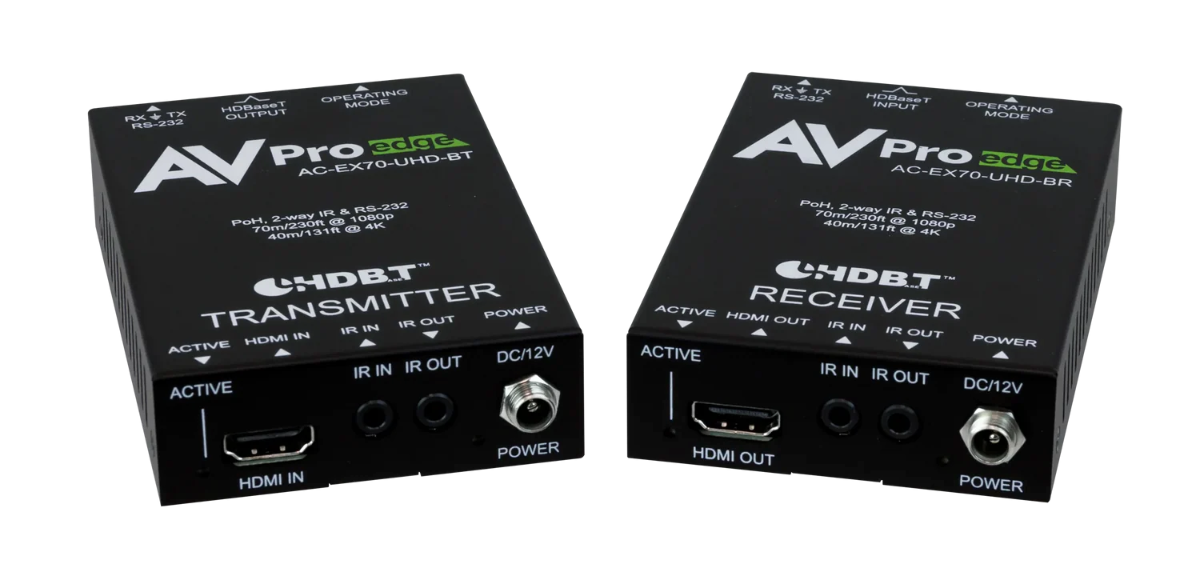

AVPro Edge AC-EX70-UHD-BKT
HDBaseT (CAT6) Extender Kit 4K60 4:2:0 Max
Description
The AVPro Edge AC-EX70-UHD-BKT is a low-feature HDMI extender kit for straightforward jobs. It is capable of passing1080p signals up to 70 meters (230 ft) and 4K signals up to 40 meters, at up to 4K60 4:2:0 or 4K30 4:4:4. It is simple to install and works best with SDR signals. VESA resolutions up to DCI 4K (4096x2160) are supported.
The kit is a pragmatic choice when a budget is tight and advanced features are not needed. It leaves out Ethernet, ARC, eARC, USB, audio extraction, I-Pass IR and longer 4K distances, which are found on other AVPro Edge models. IR and RS-232 are bidirectional, and the kit's bidirectional power lets you power either end where an outlet is available.
Important limits apply. This product is sold as a matched kit and must be paired with its companion unit; it will not work with other HDBaseT solutions and is not for use as a transmitter or receiver for any matrix switch. If you need I-Pass IR, step up to the AC-EX70-UHD-KIT. For HDR and 4:4:4 content, choose the 18 Gbps AC-EX70-444-KIT, and for audio return, see the AC-EX70-UHD-ARC.
Key Features
- Reach: 70 m at 1080p and 40 m at 4K over Cat 6a.
- 4K60 4:2:0 or 4K30 4:4:4: best suited to SDR video.
- Bidirectional IR and RS-232: control sources or displays from either end.
- Bidirectional power: power the transmitter or receiver.
- Simple install: readily available category cable, no configuration needed.
- Matched kit: not for use with matrix switchers.
Design and Installation Notes
Video details: the kit supports up to 4K60 4:2:0 and 4K30 4:4:4, VESA resolutions up to DCI 4K (4096x2160), and YUV and RGB color spaces. Which extender should you buy? Choose this kit for budget-minded SDR runs, the AC-EX70-UHD-KIT when you want I-Pass IR, and an 18 Gbps ICT model when you need 4K60 4:4:4 or HDR.
Typical Applications
Works for classrooms, offices and retail displays with straightforward HDMI extension needs. See all HDBaseT kits.
Frequently Asked Questions
Does the AC-EX70-UHD-BKT support HDR?
It works best with SDR signals. For HDR and 4:4:4 at 18 Gbps, choose an ICT model such as the AC-EX70-444-KIT.
Can I use it with a matrix switcher?
No. It must be used as a transmitter and receiver kit and is not for use with matrix switches.
Does it include I-Pass IR?
No. I-Pass is available on the AC-EX70-UHD-KIT.
How far can it extend 4K?
Up to 40 meters at 4K and 70 meters at 1080p over Cat 6a.
