AtlasIED WPD-MIX42RT
Wall Plate Input Select Switch, Volume Control 10K w Indicator

Description

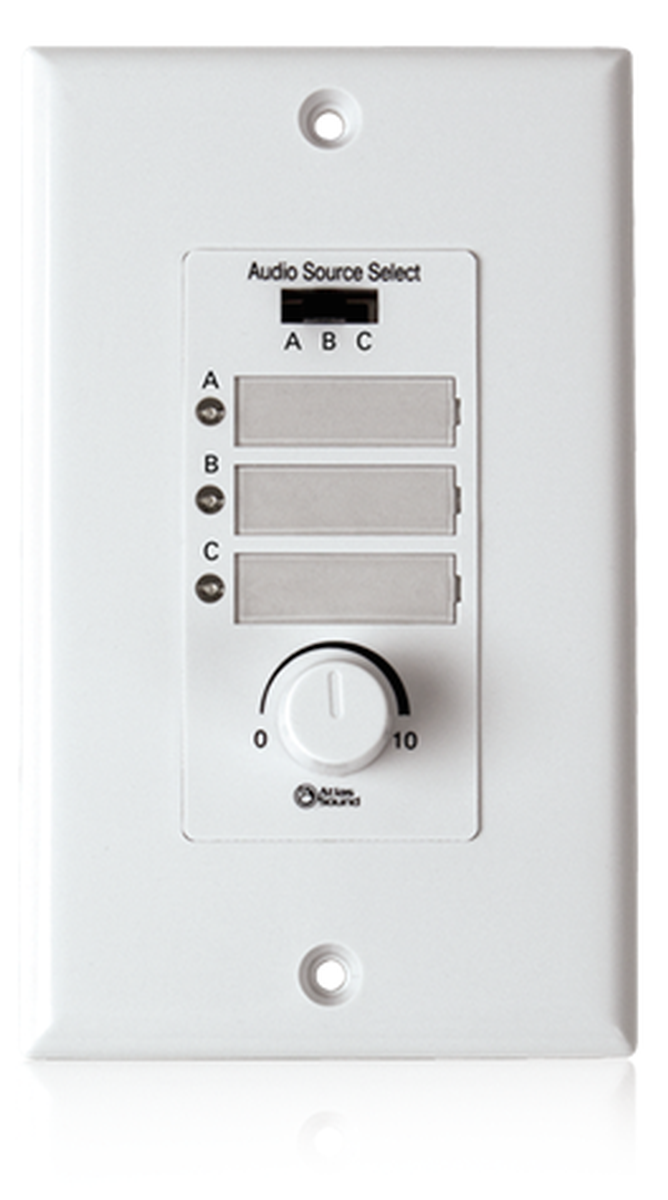

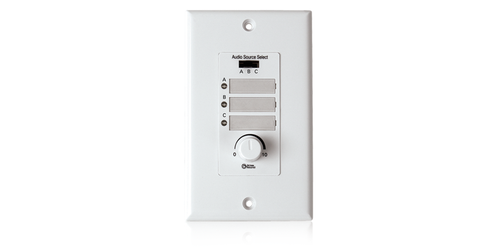

Atlas Sound's WPD-MIX42RT is a Decora-style wall plate designed for use with Atlas Sound's TSD-MIX42RT mic/line mixer. The WPD wall plate controls the mixer remotely, enabling users to use the audio source slide selector and source volume controls to impact the audio in an AV environment. This wall plate indicates its status via LED indicators. This wall plate can override audio to allow announcements and pages to be made over the audio system.

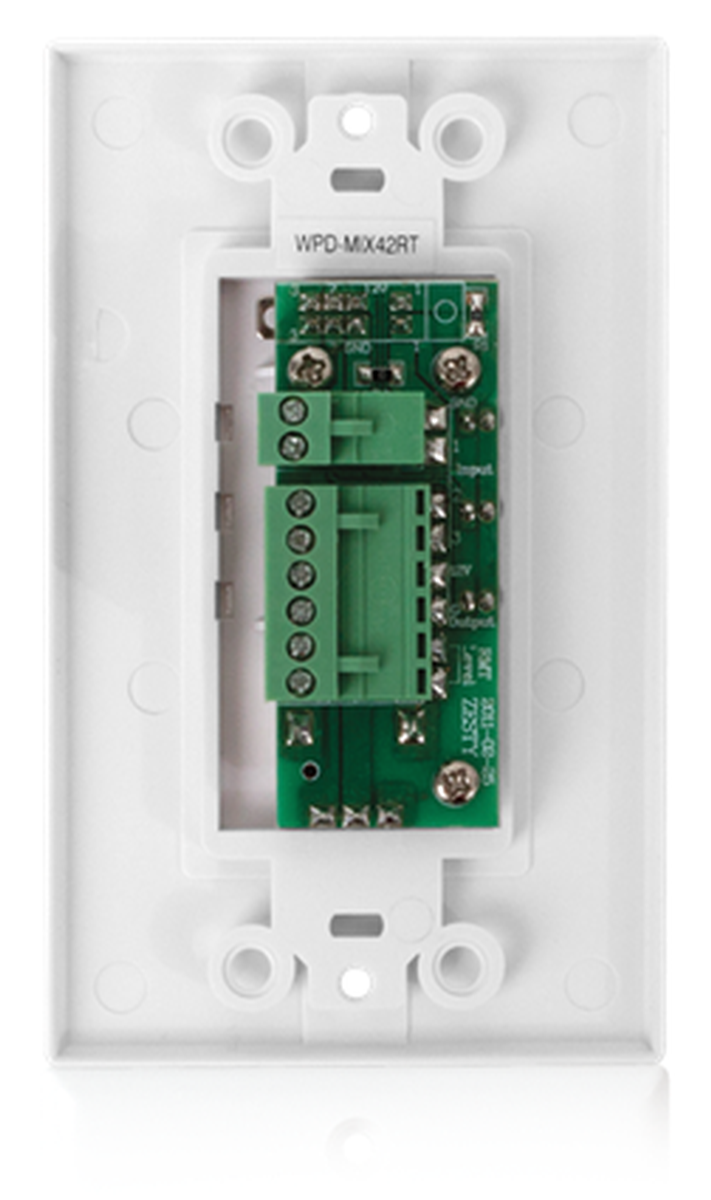

This wall plate is a single-gang electrical outlet featuring an 8-conductor interface connection with a 4-position removable Phoenix-style connector as well as 2-position Phoenix-style connectors. Other key features of this wall plate include the following:

• Remotely activates TSD-MIX42RT
• Input select slide switch
• Level control via on-board 10kOhm potentiometer
• System status indicator (red)
• 8-conductor interface connection
• Label guard

Specifications

• 8-conductor interface connection
• Level control: Via on-board 10kOhm potentiometer
• Label guard: Allows for clean, custom function identification
• Input select slide switch
• Removable 4-position Phoenix-style connector, 5.08mm pin spacing, qty 1
• Removable 2-position Phoenix-style connector, 5.08mm pin spacing, qty 2
• Height: 4.5"
• Width: 2.5"
• Depth: 0.24"
• Maximum tested distance: 200 feet, 22-gauge wire
• Pin 1: Ground
• Pin 2: Input 1 control
• Pin 3: Input 2 control
• Pin 4: Input 3 control
• Pin 5: +12VDC for status indicator
• Pin 6: GND for status indicator
• Pin 7: Remote level port
• Pin 8: Remote level port
• Warranty: 1 year
