AtlasIED TSD-DA13
1x3 Audio Distribution Amplifier

Part #: TSD-DA13
Satisfaction Guaranteed!
MSRP: $257.99
Our Price: $207.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top TSD-DA13 Specifications
  • Description: 1 x 3 Mic/Line Distribution Amplifier
  • Chassis Color: Black
  • Chassis Material: Aluminum
  • Inputs
"Great product. Came as promised. Top quality."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

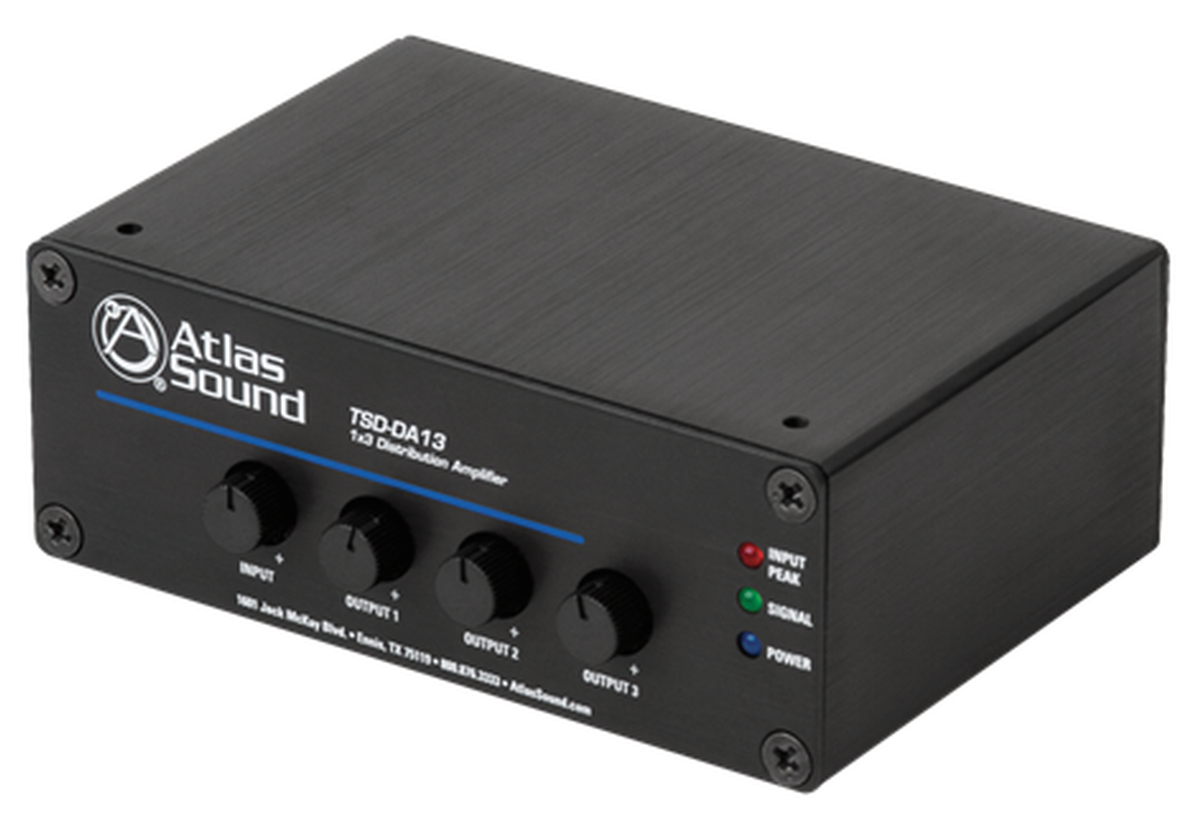

Atlas Sound introduces the TSD-DA13 is a 1x3 distribution amplifier that distributes balanced mic or line-level sources to three isolated variable outputs. This high-quality distribution amp features a defeatable 3dB low cut filter at 125Hz. It also features a dual-summing RCA line level input as well as 3 mic/line level outputs.

The TSD-DA13 features isolated outputs, which prevent cross-talk and ensures that mismatched input impedance are resolved. This distribution amplifier requires a separately purchased power supply, however, multiple TSD units can be powered via a single power supply. The TSD requires 60mA of power. Other key features of the TSD-DA13 include the following:

  • Switchable 24V Phantom P=power
  • High gain (50dB), low noise mic preamp
  • Summed dual RCA input
  • 12dB/octave low cut filter @ 125Hz
  • High gain output for driving long balanced lines
  • Removable Phoenix-style I/O connectors
  • Separate ground connections

Specifications

  • Type: Qty 1, Unbalanced
  • Connection: RCA Left and Right Actively Summed
  • Impedance: 10K
  • Input Level: 316mV (-10dBV) = 2V (+6dBV) Balanced Output / Maximum Input 6V (15dBV)
  • Type: Qty 1, Balanced Mic or Line Selectable
  • Connection: Removable 3 Position Captive Screw 3.5mm Spacing
  • Impedance: 1.2K Balanced, 600 Unbalanced
  • Phantom: 24VDC Defeatable
  • Low Cut Filter 125Hz/12dB Defeatable
  • Line Input Level: 1V (0dBV) Balanced = 2V (+6dBV) Balanced Output / Maximum Input 6V (15dBV)
  • Mic Input Level: 46dB Gain 10mV (-40dBV) Balanced = 2V (+6dBV) Balanced Output / Maximum Input 40mV (-27dBV)
  • Outputs
  • Type: Qty 3, Balanced Mic, or Line Selectable
  • Connection: Removable 3 Position Captive Screw 3.5mm Spacing
  • Impedance: 300 Balanced, 150 Unbalanced
  • Line Output Level: 1V (0dBV) In = 2V (+6dBV) Balanced / Maximum Output 6V (15dBV)
  • Mic Input vs Output Level: 10mV (-40dBV) In = 80mV (-21dBV), Maximum Output 300mV(-10dBV)

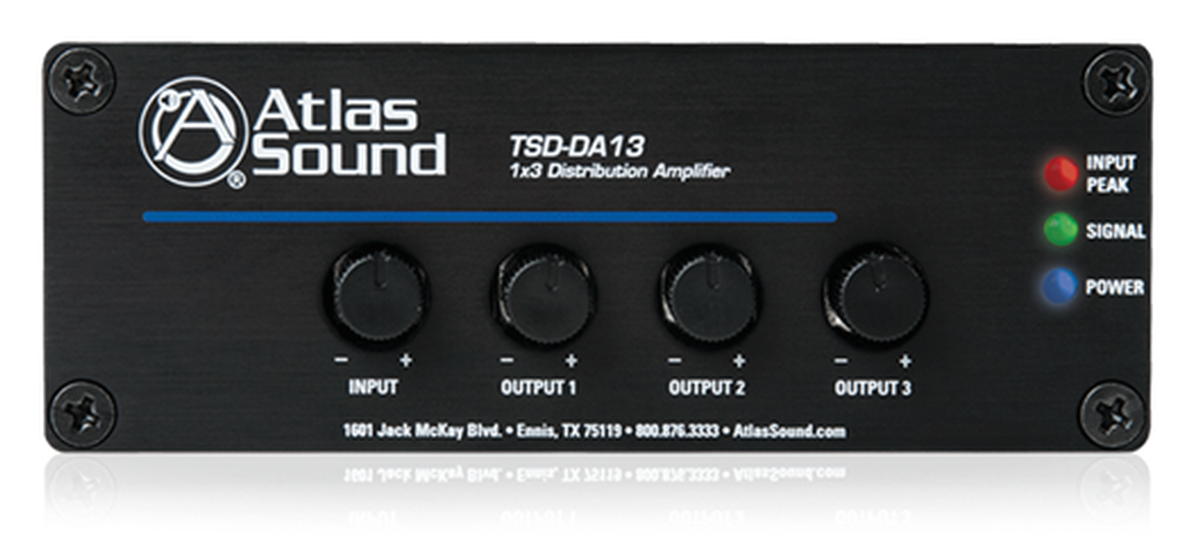

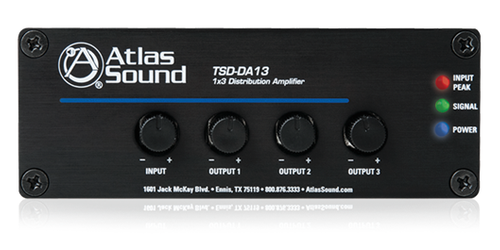

  • Controls
  • Input Level Control: Qty 1, Removable Knob with Security Cover
  • Output Level Control: Qty 3, Removable Knobs with Security Covers

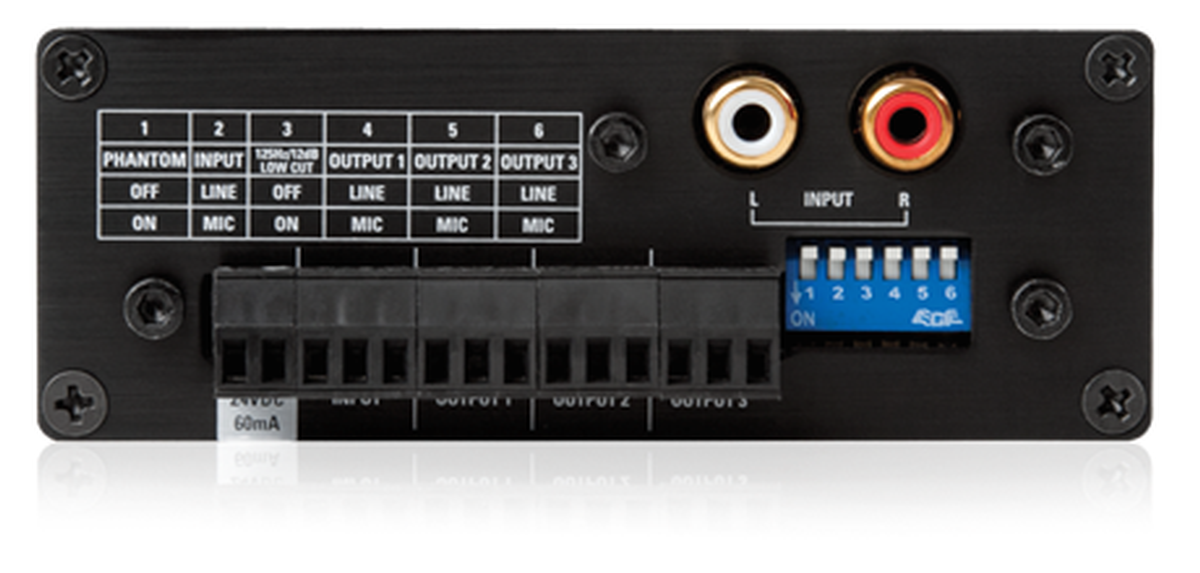

  • Dip Switch Function: Phantom Power 24VDC / Input Mic/Line Select / Input 125Hz/12dB High Pass Filter / Output Qty 3, Mic/Line Select
  • Indicators
  • Output Signal: Green, 25mV On Threshold
  • Output Peak: Red, -3dB Before Clip
  • Power: Blue
  • Electrical Frequency Response: 20Hz - 20kHz ( 1dB)
  • THD: .06% & 1kHz
  • Signal to Noise: Line to Line: 85dBV / Mic to Line: 78dBV / Line to Mic: 55dBV / Mic to Mic: 55dBV
  • Power Requirements: Voltage 24VDC
  • Power Consumption: 60mA
  • Power Consumption 1.4W Dimensions: 1.5" (39mm) x 4" (101mm) x 2.75" (70mm)
  • Weight: 6oz, .165kg
  • Included Accessories
  • Velcro: Industrial-Grade
  • Multi-Mount Plate: Qty 1, Includes (2) M3 x 4mm Screws Cable Retainers: Qty 2
  • Level Control Knobs: Qty 4
  • Level Control Security Covers: Qty 4
  • Optional Accessories
  • TSD 24VDC: Power Supply
  • TSD-RMK: 1 RU 19" Width Rack Mount Panel (Supports 4 TSD Units)
  • TSD-RMKHR: 1 RU Half Rack Width Panel (Supports 2 TSD Units)
  • TSD-RRMK Rear Rack Mounting Kit
  • Safety and Certifications
  • External Power Supply: cUL, CE, RoHS, TUV
  • Warranty: 3 years
