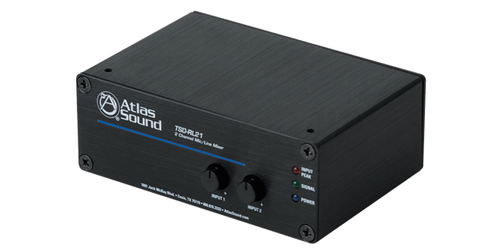

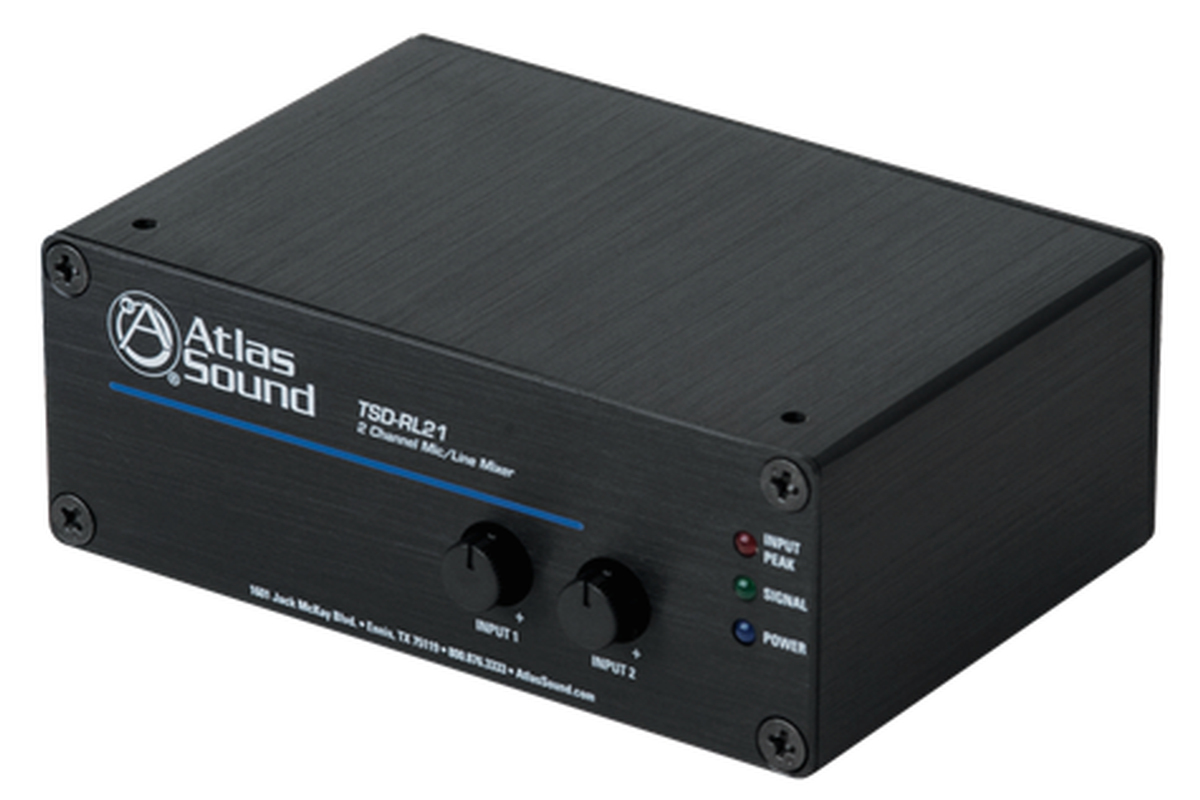

AtlasIED TSD-RL21
Two-Channel Mixer
- Description: 2 x 1 Mic/Line Mixer with Remote Level
- Chassis Color: Black
- Chassis Material: Aluminum
- Inputs
Description
Atlas Sound's TSD-RL21 is a two-channel mixer. This 2x1 mic/line mixer enables paging over intercom capability, which makes it ideal for malls, department stores, hospitals, and other settings that require an intercom system. The TSD-RL21 can be used alongside power amplifiers or remote mixers. It can be paired with a control wall plate (AAVC-10K) for remote control capabilities from the switch rather than the mixer.

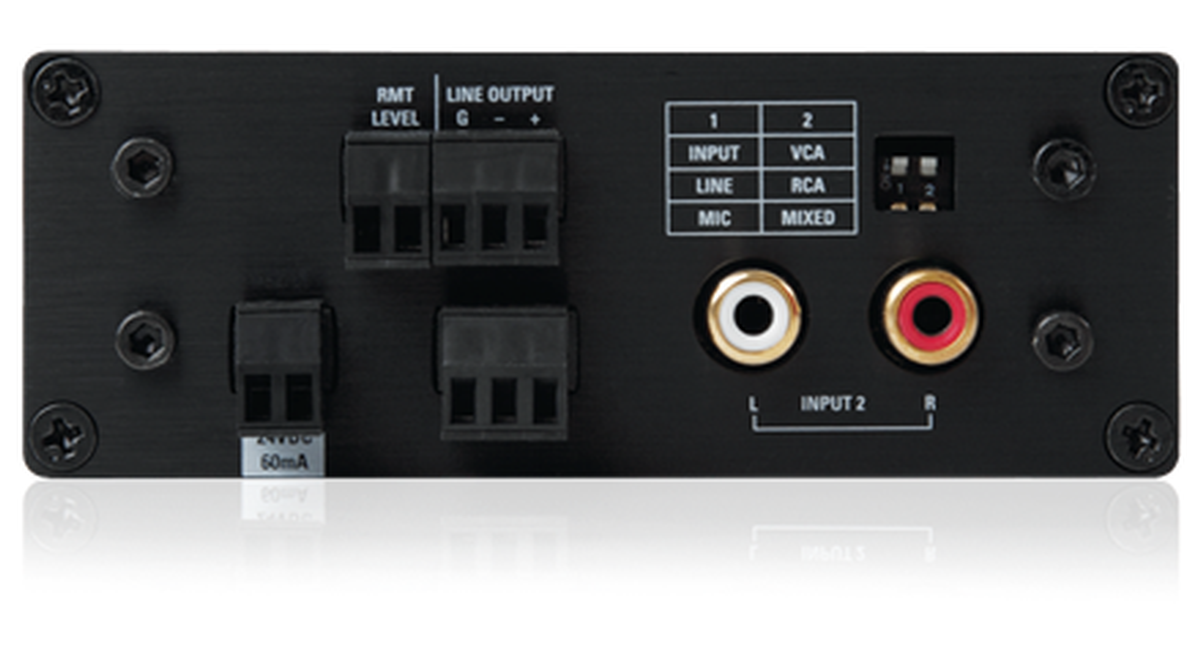

The TSD-RL21 is configurable: Configure channel 1 from the rear panel dip switch to accommodate mic or line level. Channel 2 features a stereo-summing RCA line level input. This mixer requires a separately purchased power supply, however, multiple TSD units can be powered via a single power supply and requires 60mA of power. Other key features of the TSD-MIX42RT include the following:
- 1 mic/line input
- 1 summing RCA line input
- Remote level control assignable mix bus or input 2 only
- Balanced mono line out
- Input and peak signal indicator LED
- High gain output for driving long balanced lines
- Removable Phoenix-style I/O connectors
- Security covers for front panel controls
- Energy efficient
Specifications
- Type: Qty 1, Unbalanced
- Connection: RCA Left and Right Actively Summed
- Impedance: 10K
- Input Level: 316mV (-10dBV) = 2V (+6dBV) Balanced Output, Maximum Input 1.6V (4.1dBV)
- Type: Qty 1, Balanced Mic or Line Selectable
- Connection: Removable 3 Position Captive Screw 3.5mm Spacing
- Impedance: 1.2K Balanced, 600 Unbalanced
- Line Input Level: 1V (0dBV) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 6V (15dBV)
- Mic Input Level: 46dB Gain 10mV (-40dB) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 40mV (-27dBV)
- Outputs
- Type: Qty 1, Balanced Line
- Connection: Removable 3 Position Captive Screw 3.5mm Spacing
- Impedance: 300 Balanced, 150 Unbalanced
- Line Output Level: 1V (0dBV) In = 2V (+6dBV), Maximum Output 6V (15dBV)
- 1Controls

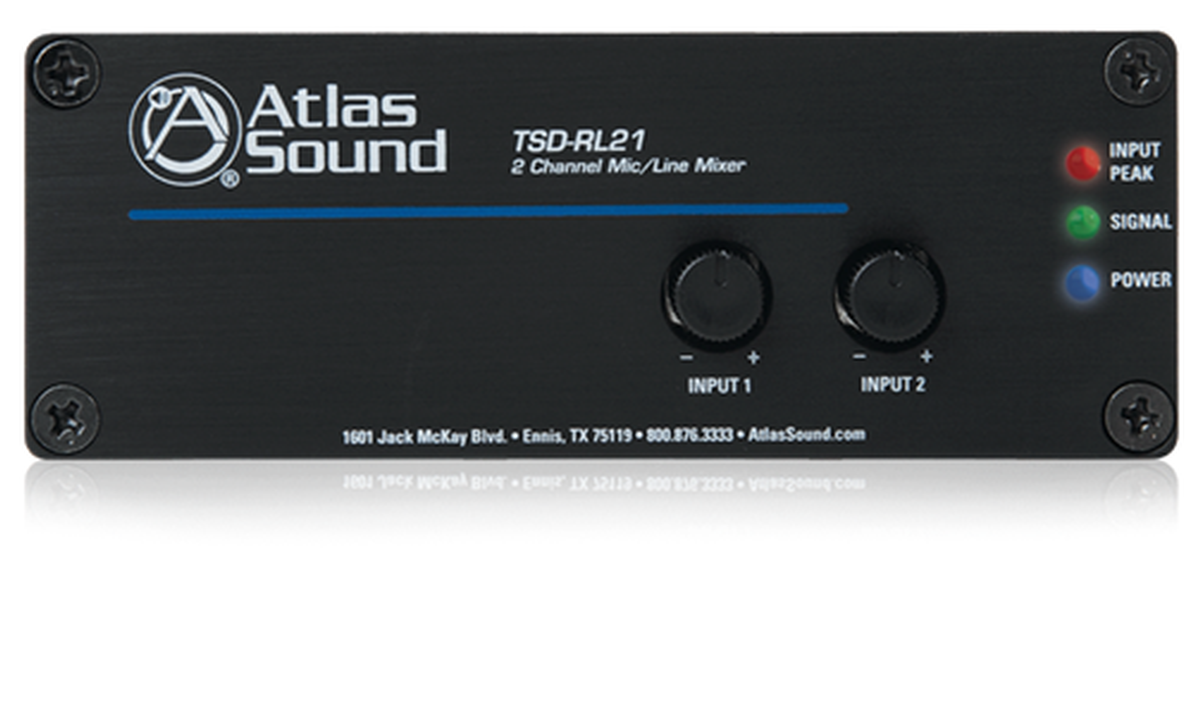

- Input Level Control: Qty 2, Removable Knobs with Security Covers
- Remote Level: Control Port 10K External Pot, Removable 2 Position Captive Screw 3.5mm Spacing
- Dip Switch Function: Input 1, Mic/Line Select / Remote Level Assign, Mix or Input 2 / Indicators
- Input Signal: Green, 25mV On Threshold
- Input Peak: Red, -3dB Before Clip
- Power: Blue
- Electrical
- Frequency Response: 20Hz - 20kHz ( 1dB)
- THD: .06% & 1kHz
- Signal to Noise: Line to Line: 85dBV / Mic to Line: 70dBV
- Mounting
- Velcro: Industrial-Grade, Included
- Brackets: Qty 2, Included
- TSD-RMK: Optional 1 RU Rack Mount Panel (Supports 4 TSD Units)
- Cable Retainer: Qty 2, Included
- Power Requirements
- Voltage: 24VDC
- Power Consumption: 60mA
- Power Consumption: 1.4W
- Dimensions: 1.5" (39mm) x 4" (101mm) x 2.75" (70mm)
- Weight: 6oz, .165kg
- Accessories
- TSD 24VDC: Power Supplies
- TSD-RMK: 1 RU Rack Panel
- Safety and Certifications
- External Power SupplyL: cUL, CE, RoHS, TUV
- Warranty: 3 years
