AtlasIED TSD-MIX32RL
3x2 Stereo Line Mixer with Remote Level

Description

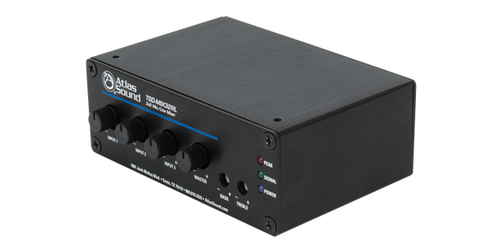

Atlas Sound's TSD-MIX32RL is a stereo line mixer featuring remote control capabilities. This mixer is able to on-board EQ via base (100Hz ±6db) and treble (10kHz ±6dB) controls. It's fitted with a preamp, which makes this mixer a good choice for applications that require multiple stereo line sources to be combined. This mixer can interface seamlessly with AtlasIED amplifiers, such as the TSD-DA13 or TSD-DA28.

This mixer requires a separately purchased power supply, however, multiple TSD units can be powered via a single power supply. This TSD unit has a 60mA power requirement. Other key features of the TSD-MIX32RL include the following:

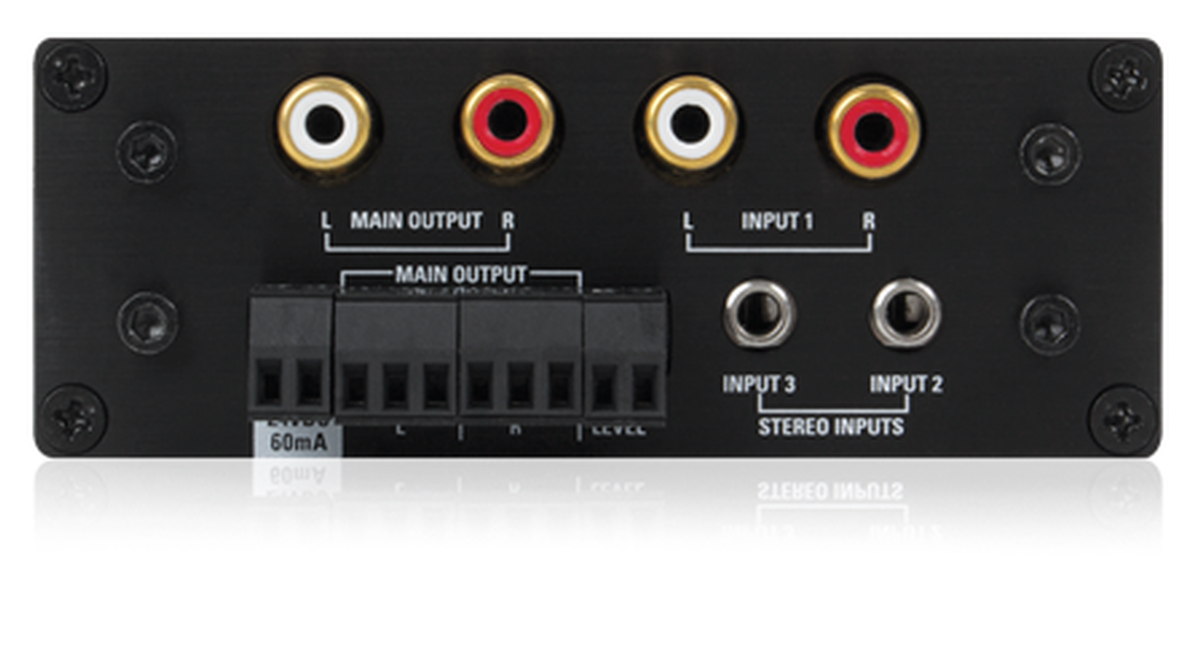

• 3 stereo unbalanced line inputs:1 set of RCA and 2 3.5mm
• Balanced left and right line outputs
• Unbalanced left and right line outputs
• Remote master level control
• High gain output for driving long balanced lines
• 3 Input signal indicator LEDs
• Output peak and signal indicator LEDs
• Separate ground connections

Specifications

• Type: Qty 1, Unbalanced RCA Left and Right
• Type: Qty 2, Unbalanced 3.5mm Stereo
• Impedance: 10k Balanced
• Unbalanced Line Input: 300mV (-10dB) = 1.5V (3dBV)
• Maximum Input: 1.5V (3dBV)
• Outputs
• Type: Qty 2, Balanced Line
• Connection: Removable 3 Position Captive Screw 3.5mm Spacing
• Impedance: 300 Balanced, 150 Unbalanced
• Maximum Output: Balanced 5V (14dBV)
• Type: Qty 2, RCA Unbalanced Line
• Impedance: 150 Unbalanced
• Line Output Level: 300mV (-10dBV) = 1.5V (3dBV)
• Maximum Output: Unbalanced 5V (14dBV)
• Controls

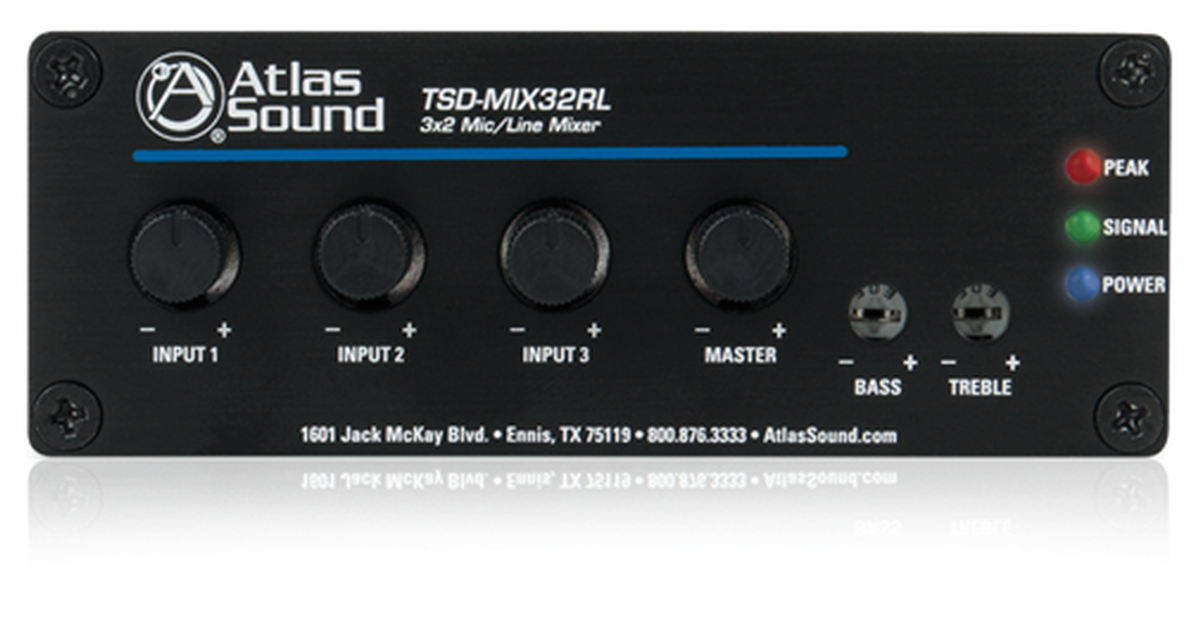

• Input Level Control: Qty 3, Removable Knobs with Security Covers
• Output Level Control: Qty 1, Removable Knob with Security Cover
• Bass Trim Front Panel (recessed): 6dB 100Hz
• Treble Trim Front Panel (recessed): 6dB 10kHz
• Indicators
• Input Signal: Green, 25mV ON Threshold, Qty 3
• Output Signal: Green, 25mV ON Threshold, Qty 1
• Output Peak: Red, -3dB Before Clip, Qty 1
• Power: Blue, Qty 1
• Electrical
• Frequency Response: 20Hz - 20kHz ( 1dB)
• THD: .06% @ 1kHz
• Signal to Noise: Line to Line: 85dBV
• Mounting
• Velcro: Industrial-Grade, Included
• Brackets: Qty 2, Included
• TSD-RMK: Optional 1 RU Rack Mount Panel (Supports up to 4 TSD Units)
• Cable Retainer: Qty 2, Included
• Power Requirements
• Note: All Current and Watt data is based on AC power consumption using the TSD-PS24V2500mA
• Power Supply
• Voltage: 24VDC, 60mA
• Power Consumption Current: 60mA
• Power Consumption: VA Watts 1.4W
• Dimensions: 1.5" (39mm) x 4" (101mm) x 2.75" (70mm)
• Weight: 6oz, .165kg
• Accessories
• TSD 24VDC: Power Supply
• TSD-RMK: 1 RU Rack Panel
• Safety and Certifications
• External Power Supply: cUL, CE, RoHS, TUV
• Warranty: 3 years
