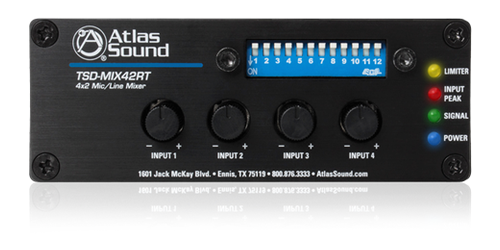

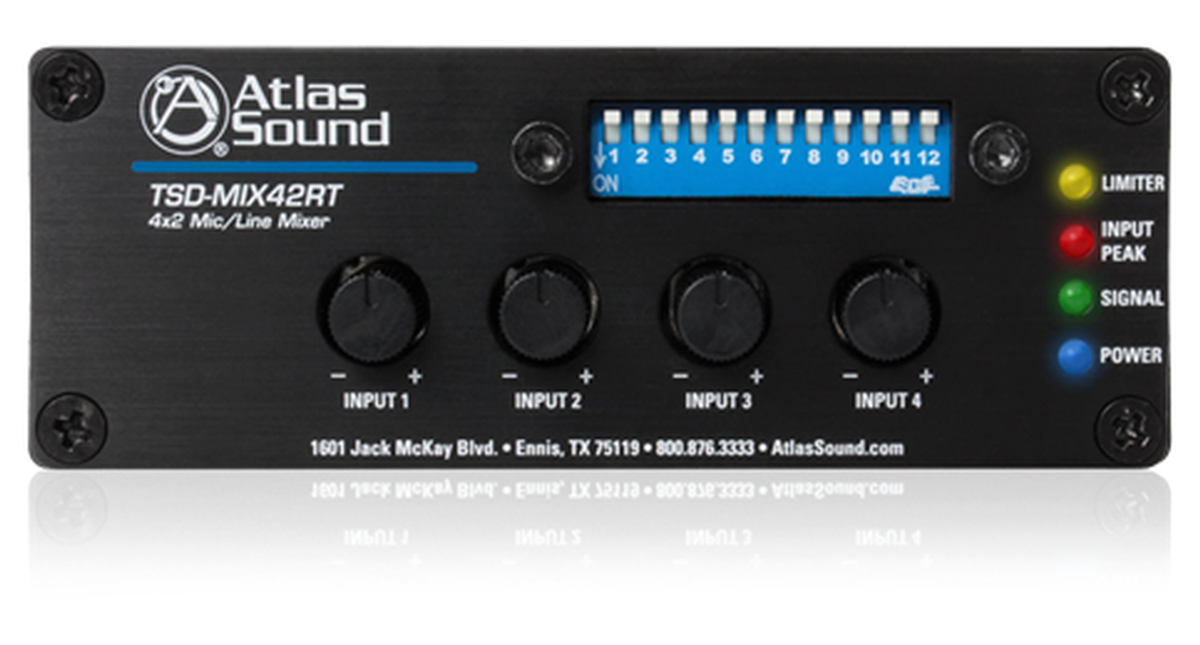

AtlasIED TSD-MIX42RT
4x2 Mic/Line Mixer with Priority Sense and Remote Control

Part #: TSD-MIX42RT
Satisfaction Guaranteed!
MSRP: $443.99
Our Price: $356.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top TSD-MIX42RT Specifications
  • Description: 4 x 2 Stereo Line Mixer with Priority Sense and Remote Level
  • Chassis Color: Black
  • Chassis Material: Aluminum
  • Inputs
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

Atlas Sound introduces the TSD-MIX42RT: a 4x2 mic/line mixer. The TSD-MIX42RT is specially designed for environments in which there is paging over intercom or priority music override. This mixer enables users to perform priority paging via VOX trigger on input 1 that mutes the other inputs.

This mixer features 1 mic/balanced line input and 3 stereo 3.5mm inputs. The TSD-MIX42RT also boasts a variable output limiter, which protects the system from distortion. It is also fitted with an internal mic preamp to protect the sound quality and clarity while operating silently and discretely. The TSD-MIX42RT features a 12dB/octave high-pass filter at 125Hz on the mic input. This prevents bass rumble and low-frequency feedback.

This mixer can be used alongside amplifiers, with digital signage, and are ideal fits in meeting rooms and luxury suits alike. The TSD-MIX42RT can also be used alongside the WPD-MIX42RT Decora-style wall plate, which features remote activation capabilities. The WPD wall plate is a single-gang size outlet that enables users to select audio sources.

This mixer requires a separately purchased power supply, however, multiple TSD units can be powered via a single power supply. Other key features of the TSD-MIX42RT include the following:

  • Stereo or mono configurations
  • Remote level control for WPD-VC10K wall plate control
  • Power supply sold separately

Specifications

  • Type: Qty 3, Unbalanced
  • Connection: 3.5mm Stereo
  • Impedance: 10k
  • Input Level: 316mV (-10dB) = 2V (+6dBV) Balanced Output, Maximum Input 1.6V (4.1dBV)
  • Type: Qty 1, Balanced Mic or Line Selectable
  • Connection: Removable 3 Position Captive Screw 3.5mm Spacing
  • Impedance: 1.2K Balanced, 600 Unbalanced
  • Phantom: 24VDC Defeatable
  • Low Cut Filter: 125Hz/12dB Defeatable
  • Line Input Level: 1V (0dBV) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 6V (15dBV)
  • Mic Input Level: 46dB Gain, 10mV (-40dB) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 40mV (-27dBV)

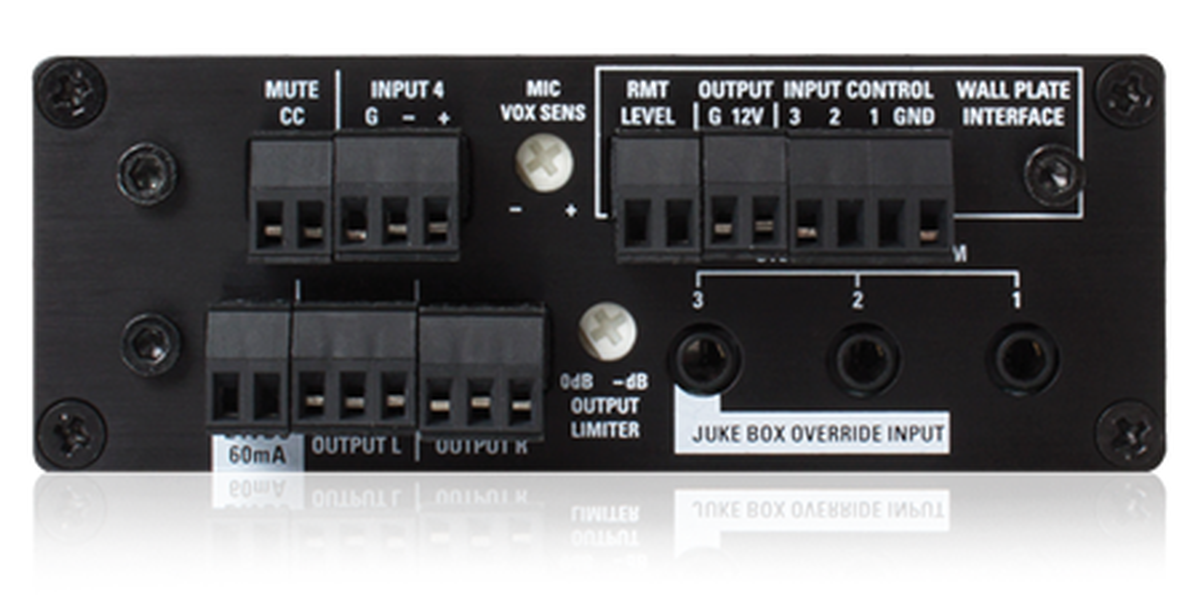

  • Outputs
  • Type: Qty 2, Balanced Line, Left and Right
  • Connection: Removable 3 Position Captive Screw 3.5mm Spacing
  • Impedance: 300 Balanced, 150 Unbalanced
  • Line Output Level: 1V (0dBV) In = 2V (+6dBV), Maximum Output 6V (15dBV)
  • Controls
  • Input Level Control: Qty 4, Removable Knobs with Security Covers
  • Mute CC: Contact Closure, Removable 2 Position Captive Screw 3.5mm Spacing
  • VOX Mute Sens: Trim Adjust for Mic Sensitivity
  • Output Limiter: Threshold Adjust
  • Remote Level Control Port: 10k External Pot, Removable 2 Position Captive Screw 3.5mm Spacing
  • DC 12V Output: 12V DC to power wall controller LED, Removable 2 Position Captive Screw 3.5mm Spacing
  • Wall Controller Interface: Connects to optional WPD-MIX42RT wall controller, Removable 4 Position Captive Screw 3.5mm Spacing
  • Note: Juke Box Override will not work when Remote Wall Plate is activated
  • Dip Switch Functions
  • Dip Switch # 1: 24VDC Phantom Power
  • Dip Switch # 2: Input 4 Mic or Line Select
  • Dip Switch # 3: Low Cut Filter 125Hz
  • Dip Switch # 4: Juke Box Override
  • Dip Switch # 5: Juke Box Override Mute Hold Delay
  • Dip Switch # 6: Input 3 Mute Receive
  • Dip Switch # 7: Input 2 Mute Receive
  • Dip Switch # 8: Input 1 Mute Receive
  • Dip Switch # 9: Outputs Left and Right Stereo/Mono
  • Dip Switch # 10: Remote Level Master/Inputs 1,2,3
  • Dip Switch # 11: Wall Plate Activation Note: Juke Box Override will not work when Remote Wall Plate is activated
  • Dip Switch # 12: Not Used
  • Indicators
  • Input Signal: Green, 25mV ON Threshold, Qty 1
  • Input Peak: Red, -3dB Before Clip, Qty 1
  • Limiter: Red, Limiter Activation, Qty 1
  • Power: Blue, Qty 1
  • Electrical
  • Frequency Response: 20Hz - 20kHz ( 1dB)
  • THD: .06% @ 1kHz
  • Signal to Noise: Line to Line: 85dBV / Mic to Line: 78dBV
  • Output Limiter: Threshold Adjust 50mV Minimum Output to No Limit
  • Mounting
  • Velcro: Industrial-Grade, Included
  • Brackets: Qty 2, Included
  • TSD-RMK: Optional 1 RU Rack Mount Panel (Supports up to 4 TSD Units)
  • Cable Retainer: Qty 2, Included
  • Power
  • Voltage: 24VDC, 60mA
  • Power Consumption Current: 60mA
  • Power Consumption VA Watts: 1.4W
  • Dimensions: 1.5" (39mm) x 4" (101mm) x 2.5" (70mm)
  • Weight: 13.4oz, .3kg
  • Accessories
  • WPD-MIX42RT: Wall Plate Input Select Switch, Volume Control
  • TSD 24VDC: Power Supply
  • TSD-RMK: 1 RU Rack Panel
  • Safety and Certifications
  • External Power Supply: cUL, CE, RoHS, TUV
  • Warranty: 3 years
