40W 2" Voice Coil Compression Driver 70V

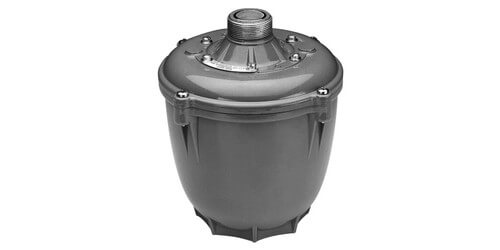

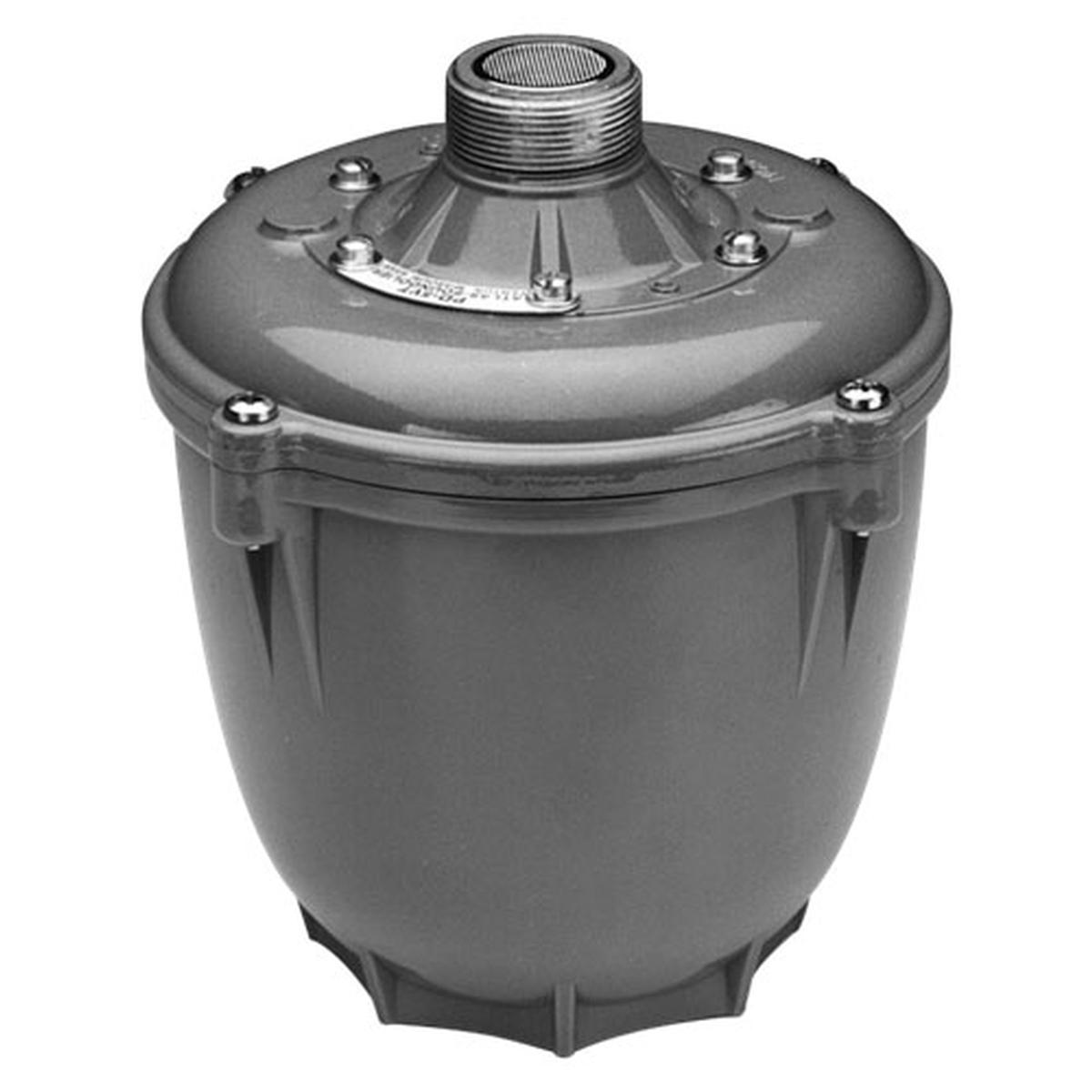

PD-5VT Compression Driver with 70.7V-40W Transformer made by Atlas Sound is a 40-watt driver with 2" voice coil. The unit is equipped with a ceramic magnet and includes a built-in, varnish-impregnated, tropic-sealed, multi-tap 70.7 volt line-matching transformer, (also adaptable to 25 volt audio system operation) which offers a selection of terminals for matching to the appropriate impedance and power taps.The PD-5VT has a plane wave frequency response of 190 - 4,200 Hz (+5dB). This durable compression driver mounts easily to large format horns that terminate in the standard 1 3/8"-18 male coupling thread. Model PD-5VT is equipped with corrosion-resistant, screw type, wiring terminals which are protected by a transparent impact-resistant plastic cover. The protective cover also provides strain relief for interconnecting cable. Units are finished in grey, baked epoxy.
- Power Taps 2.5, 5, 10, 10, 20, 40W @ 70.7V
- Power Rating 40W
- Sensitivity 111.2 (avg) 190 - 4,200 Hz (+5dB)
