AMX DXF-RX-MMD
DXLink Fiber HDMI Receiver Module with Smartscale and HDCP

Manufacturer SKU: FG1010-562
Satisfaction Guaranteed!
MSRP: $1,720.00
Our Price: $1,634.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $15 Off!
Top DXF-RX-MMD Specifications
  • Dimensions (HWD) 1" x 8 3/4" x 5 1/5" (2.54 x 22.12 cm x 13.08 cm) DxLink Fiber Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A)

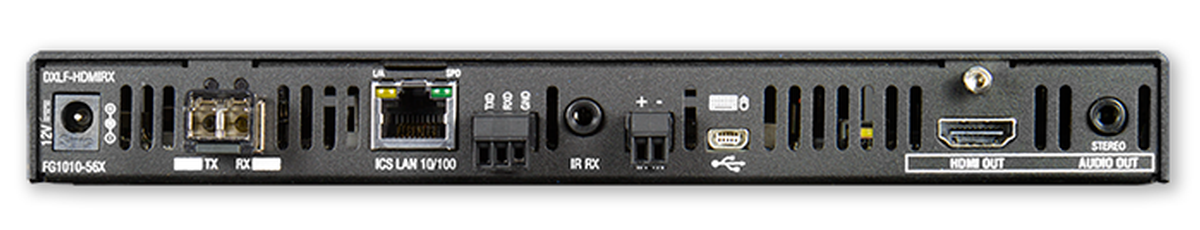

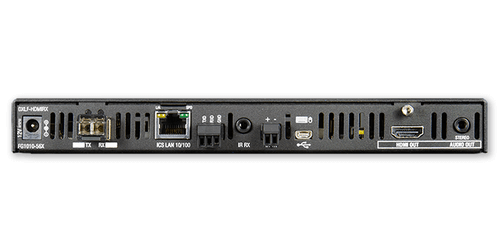

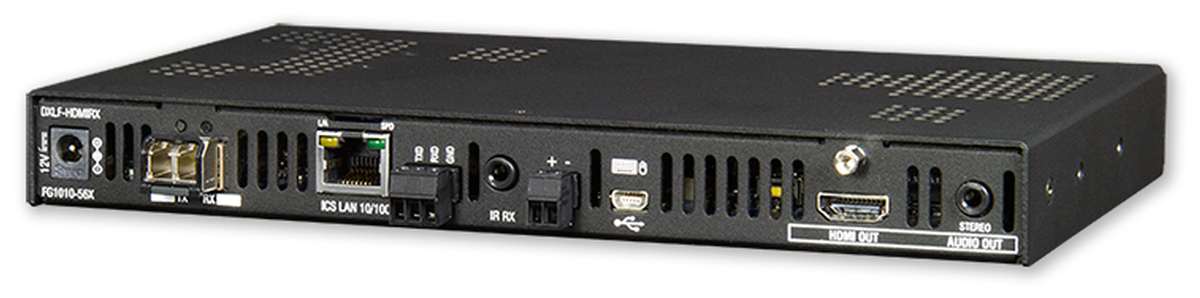

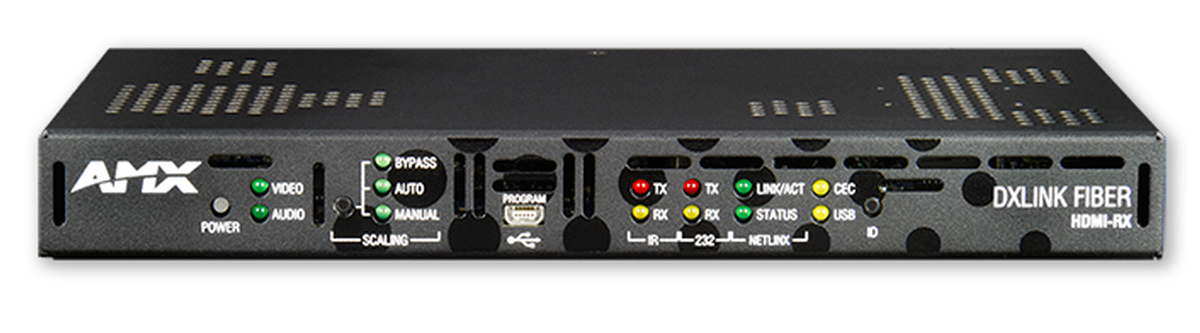

  • Fiber Cable Length: 300m (984 ft) USB (HID) (1) USB Mini A/B Connector ("DEVICE") Front Connectors Advanced Configuration Interface: (1) USB Mini-B Connector ("PROGRAM") Back Connectors Local Power: 2.1 mm DC Power Jack
  • DXLink Fiber Input: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A)
  • ICS LAN/Ethernet Port: (1) RJ-45 Connector HDMI Compatible Formats: HDMI, HDCP, DVI HDMI Resolution Support Progressive Resolution Support: All progressive resolutions between 480p and 1920 x 1200 @ 60 Hz via automatic SmartScale query of the display's preferred DID Detailed Timing Definition
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The DXLink HDMI Fiber Receiver features SmartScale technology to deliver HDMI with HDCP. The DXF-RX-MMD automatically scales each connected display, alleviating any integration challenges that can occur when sources and displays have different resolutions. It accepts audio, video, control, and Ethernet over multimode fiber up to 985 feet. Mount the low-profile DXLink Fiber Receiver behind a display or above a ceiling mounted projector and control it using the built in RS-232 or IR ports. Monitor display settings and send IR control signals to the Enova DGX Digital Media Switcher with integrated NetLinx control back to the source device.




Specifications

  • Interlaced Resolution Support: 480i, 576i, 1080i HDMI Audio Support Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels
  • Audio Resolution: 16 bit to 24 bit HDCP HDCP Support: Yes Stereo Audio Output Signal Types: Stereo Analog
  • Output Connectors: 3.5mm Mini-Stereo Jack Power Supply External, Included: Each HDMI RX ships with a desktop power supply with power cord, 2.5 A @ 12 V, Max 13.5 V Compatible AMX Products Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX-O-DXF-MMD, Enova DGX DXLink Mutimode Fiber Output Board, Duplex (FG1058-632) installed
