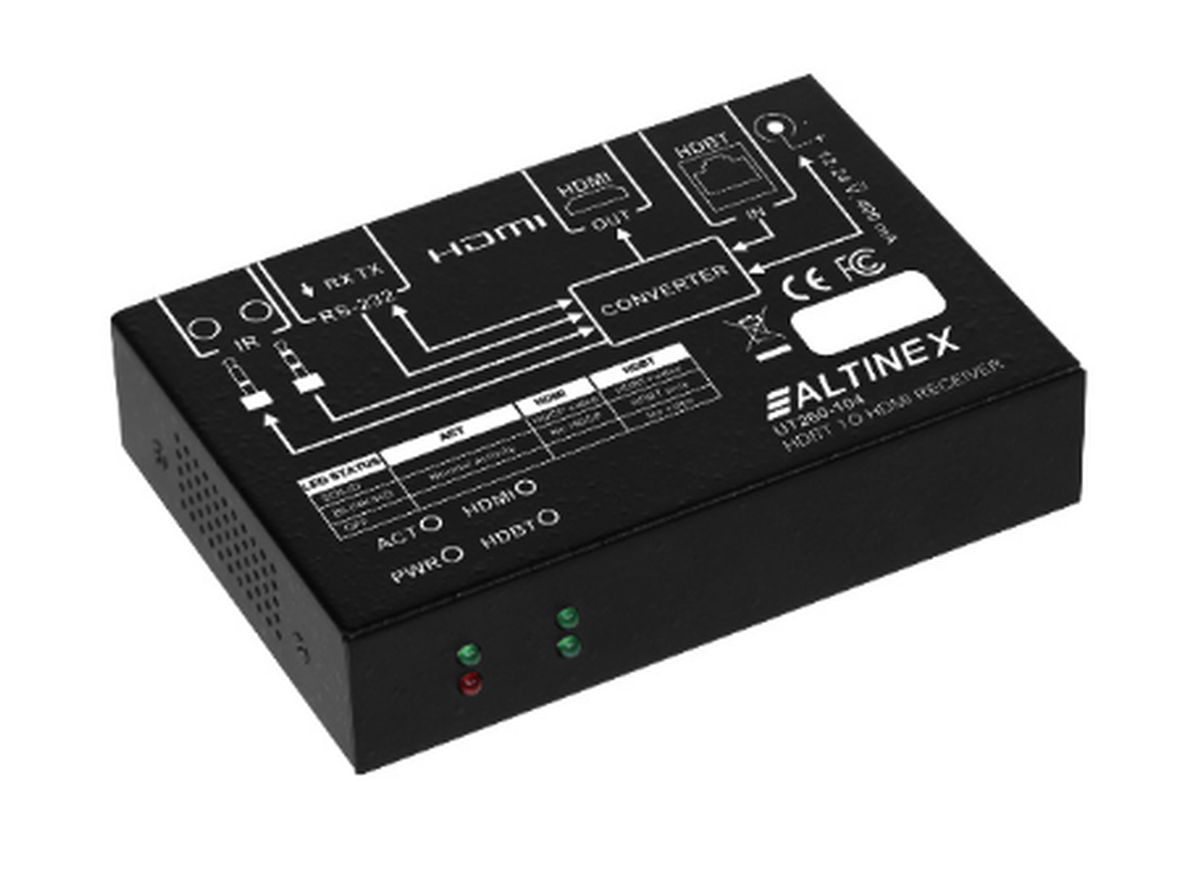

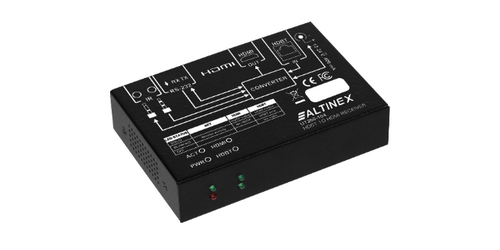

Altinex UT260-104
Under Table HDMI to HDBaseT Receiver, 1080p@60Hz, 2-Way RS232/IR

Part #: UT260-104
Satisfaction Guaranteed!
MSRP: $240.00
Our Price: $180.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $7 Off!
Top UT260-104 Specifications
  • HDMI resolution: 4K@30Hz or 4K@60Hz 4:2:0
  • Input: 1 CAT, 2 IR, 1 RS-232
  • Output: HDMI
  • Max Resolution Distance: 230' on 1080p@60Hz Color Depth: 48-bit
"Great product. Came as promised. Top quality."
Contact a product specialist!
Proudly supporting our customers since 2008


The UT260-104 from Altinex is a under table HDMI to HDBaseT receiver that can transmit HDMI signals up to 1080p@60Hz, 48-bit over one CAT 5e/6/7 cable. This device will support HDMI 4K@30 4:2:0 and 3D. It is HDCP compliant and has the ability to send Bi-directional RS-232 and IR.

Altinex's UT260-104 is a part of their Multi Video HDBaseT Cat Extender series, and features single side connections for HDMI, control, and power to allow for easier installations and provide a clean wiring rack mounting solution. The system was also designed to allow for it to be powered via a DC adapter from either side. Using a single CAT 5e/6/7 cable the receiver can be placed up to 230' away from the sender, and receive signals of 1080p60, 48-bit color depth.


  • Video Compliance: HDMI & 3D
  • HDCP Compliant
  • Status LED for all connection on front
  • All connectors on one side for easier installation
  • Bi-Directional RS-232 & IR
  • Power both TX & RX from either side with external wall power supply
  • Weight: 1.06lbs
  • Power Supply: 12V 1A
  • Warranty: 3 Years
