Altinex TNP329S
Tilt Up Table Box w/ 1 USB 3.0, 1 VGA, 1 HDMI, 1 Cat6, 2 AC
- Connections: 1 VGA, 1 Audio, 1 HDMI, 1 Cat6, 1 USB 3.0 and 2 power

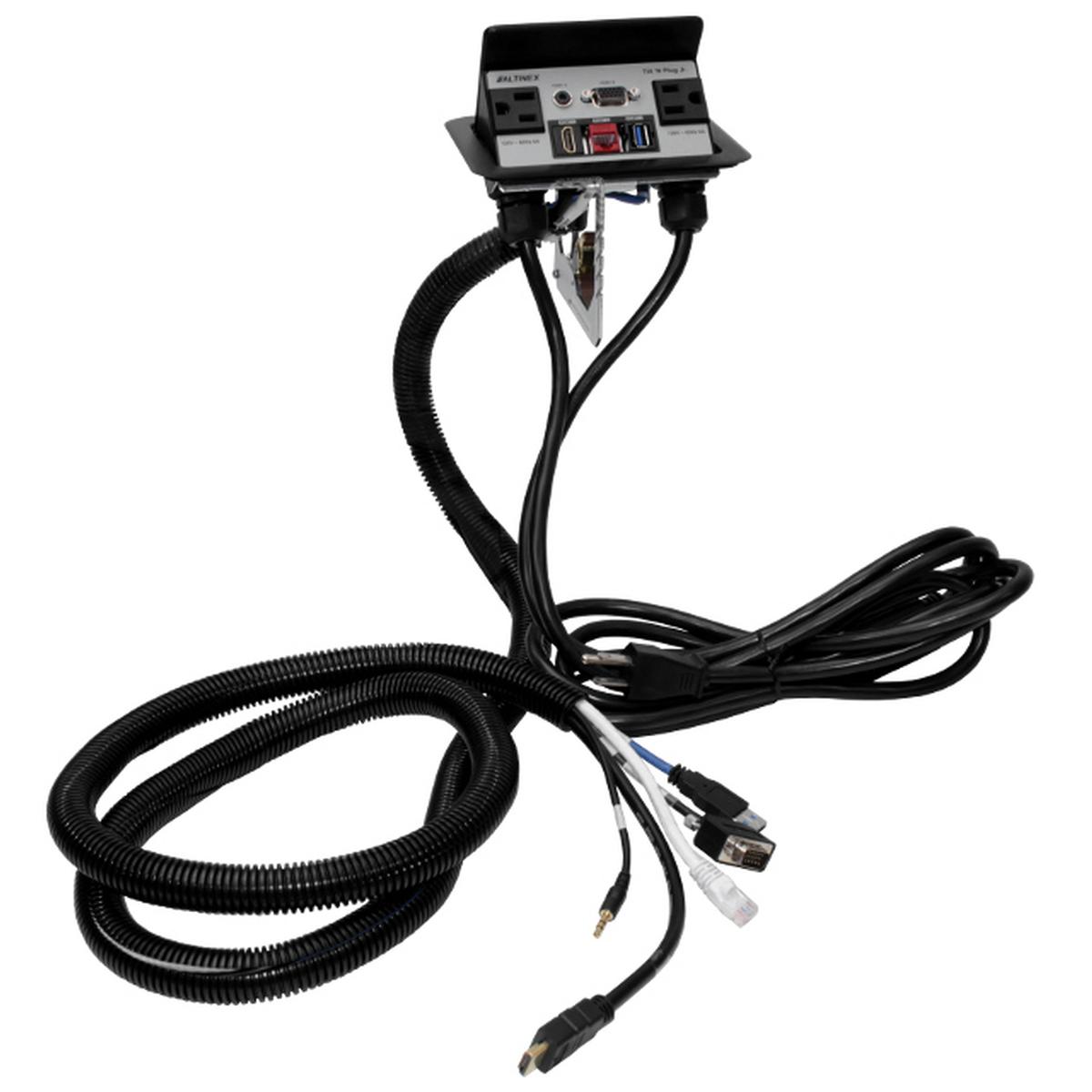

- Gender: Female at the box with 6' male ended AV and data cables under the table
- Power cable: Single 9'
- Mounting hardware included
-Gregory W.
Description

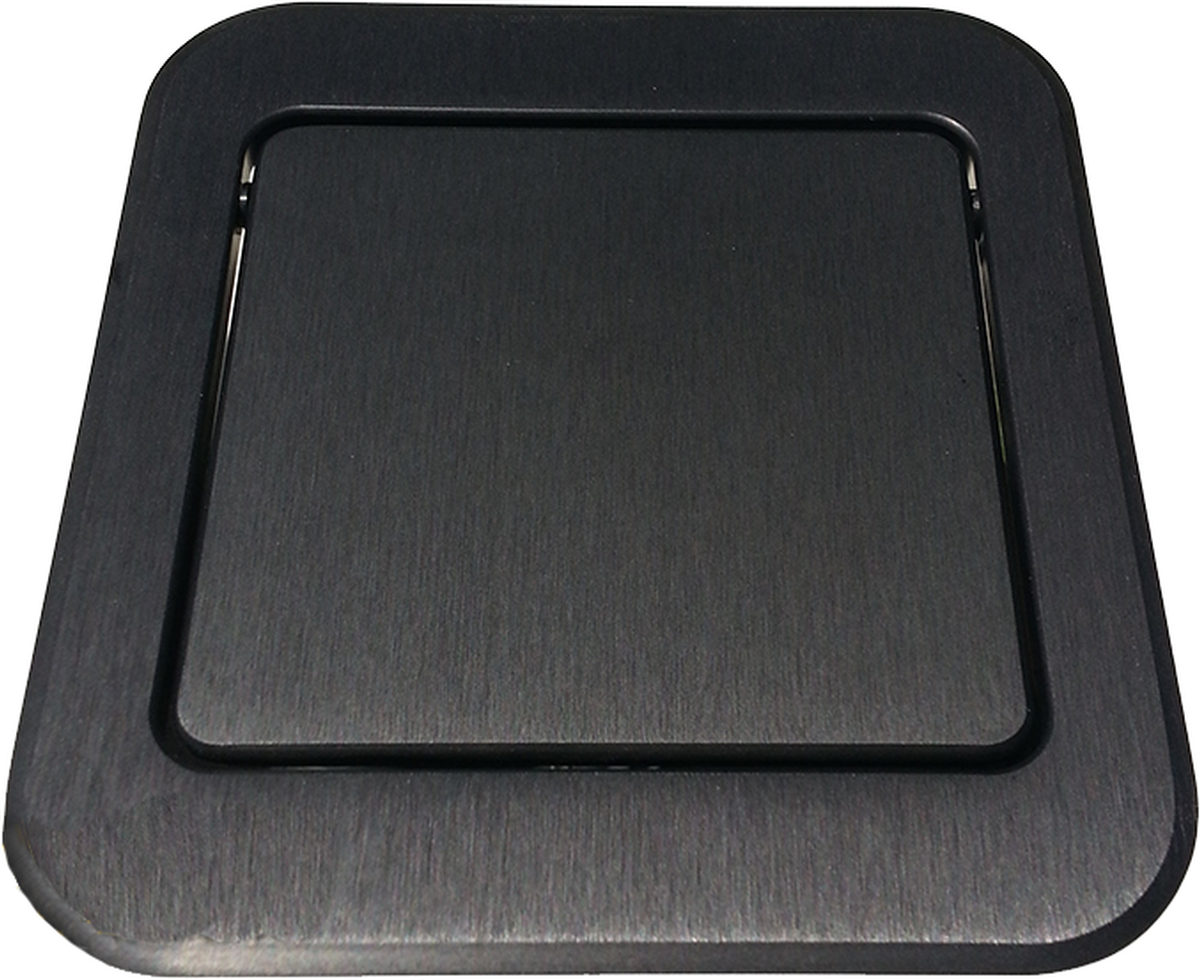

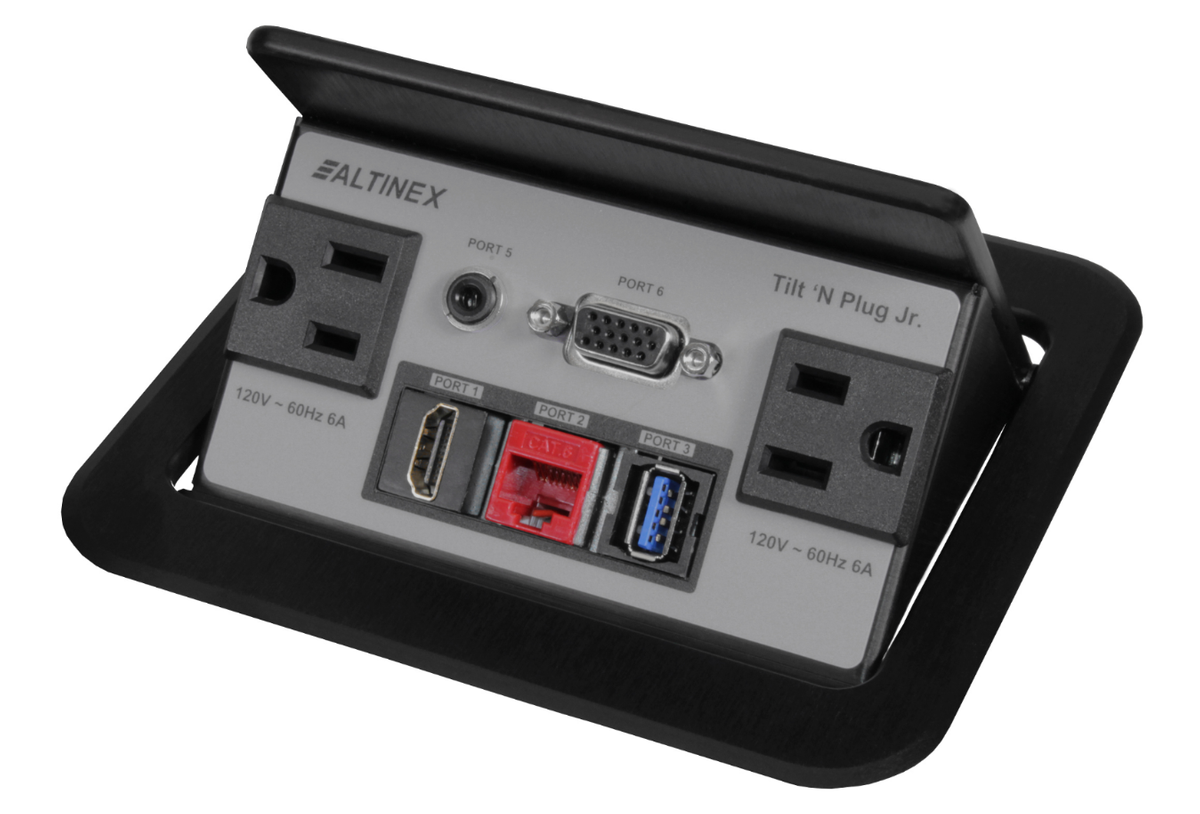

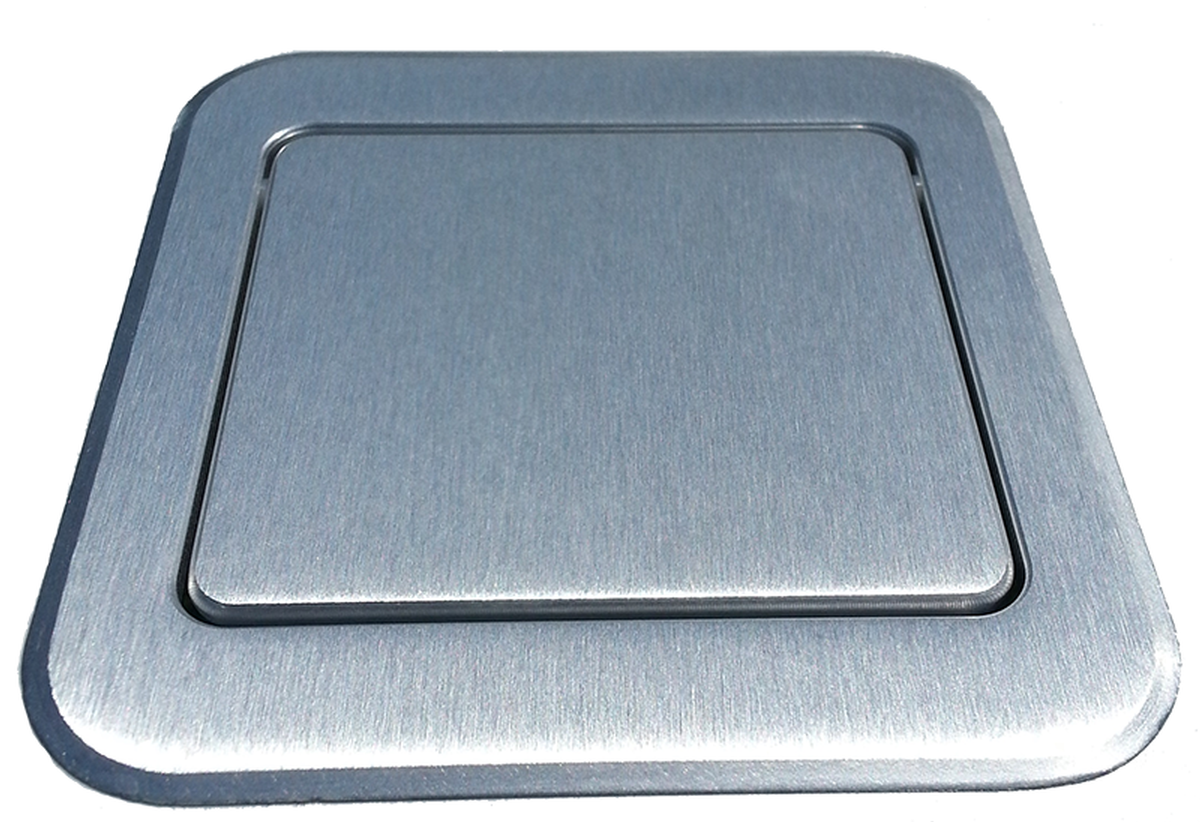

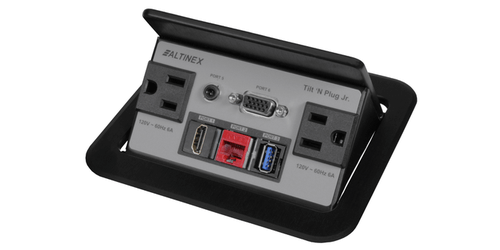

The Altinex TNP329S is a slightly larger version of the TNP128S that features a second power and USB 3.0 connection. The connections included are 1 VGA, 1 audio, 1 HDMI, 1 Cat6, 1 USB 3.0, and 2 power. All connections at the box are female, under the table are 6' male terminated cables with the power being 9' long. Choose from a gorgeous black anodized aluminum or silver anodized aluminum finish to compliment the look of any room.
The top tilts up via a gas spring, simply press the top and it smoothly tilts/pops up exposing your connections. When you are done just press the top till it locks flush with the table and looks hidden.

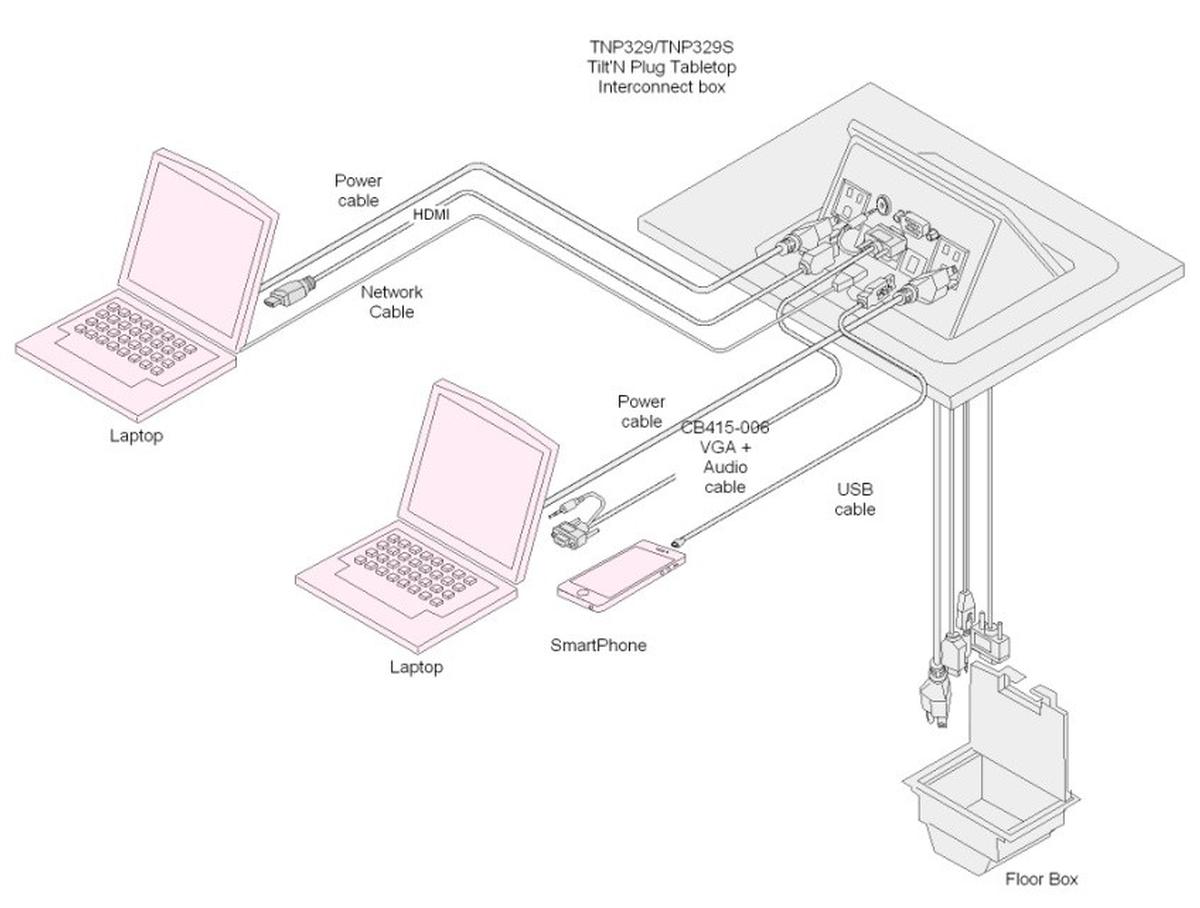

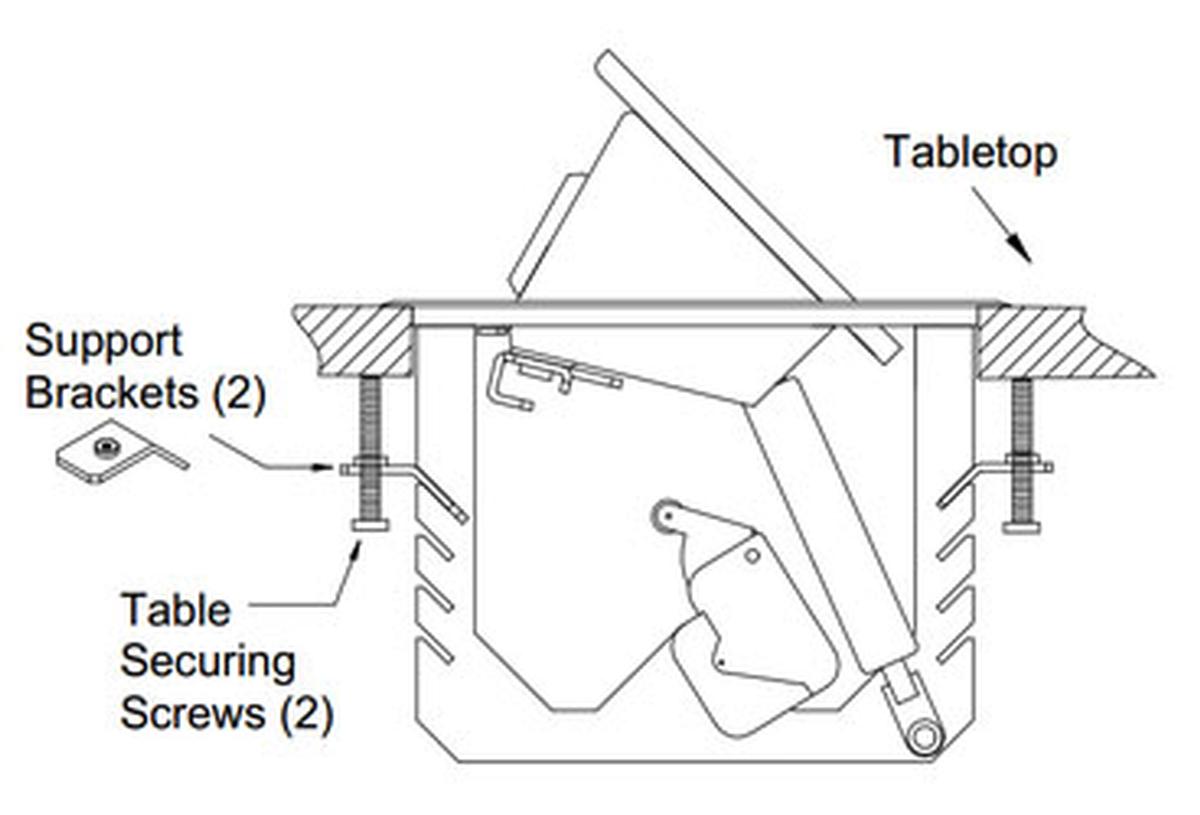

Installation is easy, cut your hole using the cutout template and drop the unit in the hole. Secure to the underside of the table with the included mounting hardware and you are done, you now have an elegant looking yet functional cable management and connectivity solution for you table. The Altinex TNP329S is a multi-format high quality table box designed for your conference room, boardroom, meeting room, training rooms, and lecture rooms.
Specifications
- Bezel dimensions: 5.7" x 5.2"
- Cutout dimensions: 5.3" x 4.8"
- Table thickness: .75" to 2.5"
- Depth under table: 5.2"
- UL and c-UL listed
- Warranty - Table box: 10 years, Gas spring: 1 year
