Altinex PNP517C
*Customizable* Dual Sided Pop Up Tower, Uses Tabletop Surface

• 9 customizable connections on each side
• Fits nearly any tabletop
• Dual-sided access to AV/network/AC power connections
• 4 power cords (10' long)
• Simple, slide-in installation
• Opens/closes by pressing on top
• Gas spring lift mechanism

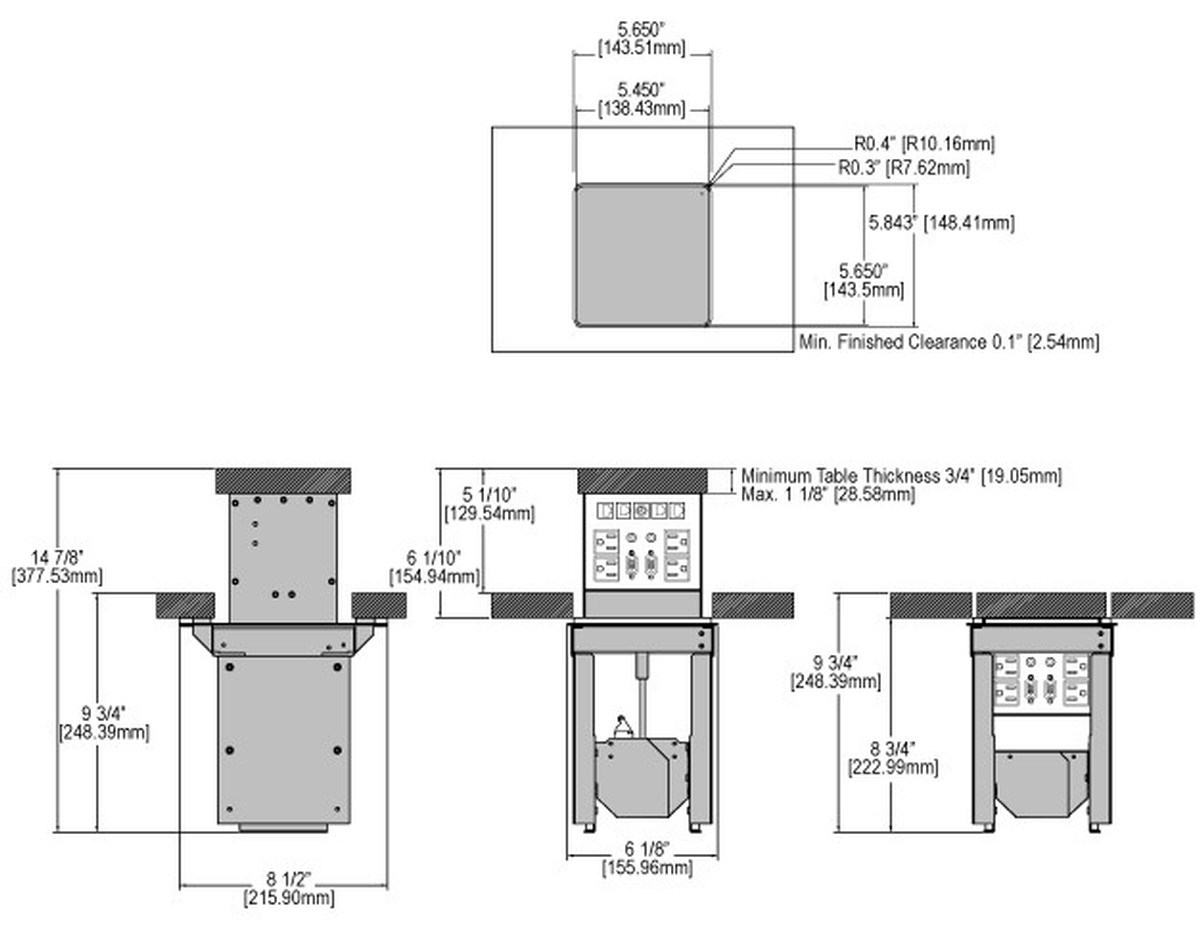

• Table thickness: .75" to 1.125"
• Cutout dimensions: 5.85" x 5.65"
• Will lift up to 1.4lbs
• Depth below table: 6.12
• Includes mounting hardware

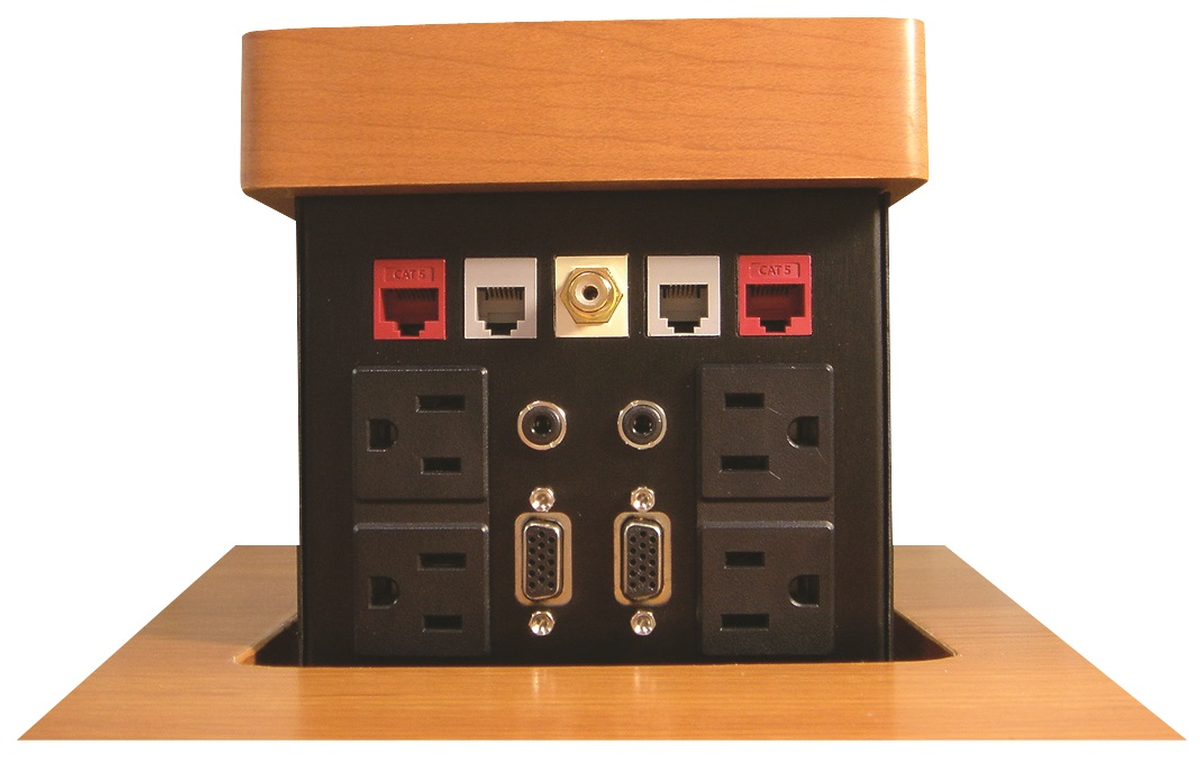

The Altinex PNP517C tabletop box "Pops Up" from the conference table providing access to connectors and when pressed back down is concealed flush with the tabletop surface. The PNP517 uses your own tabletop cutout (up to 1.4 lbs) as the top making it the “professionals choice” allowing you to have a seamless look in your conference room table.

The PNP517C is customizable, each side comes standard with 4 power and 9 customizable connections. Use our customizer to create your perfect table box.

Customization Instruction

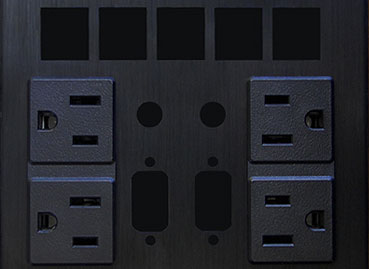

1. In the image of your custom unit (above), the Snap-Ins/Audio & D-Sub connectors that can be configured are shaded.

Example of a customizable snap-in

2. Click on each shaded area to pop up a box with the available options for the individual connector you selected. Click on the option you desire for the unit - it will be displayed on the unit after selection. You may click on a previously selected snap-in/connector to choose a different option. Note that if you want no connection in a slot, please click on the blank connector in the pop up box.

3. Click on each side's button to change the image to display the connectors for that side


Example of a product with two sides - the front side is selected.

4. Upon completing customization of your product, a dialogue box will pop up informing you that customization is complete and your product is ready to be added to your cart.

Downloads:

• Altinex PNP517C Specifications (PDF)
• Altinex PNP517C Manual (PDF)
• Altinex PNP517C Additional Information (PDF)
