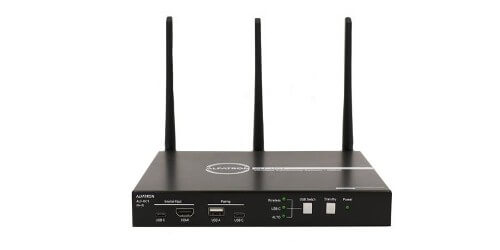

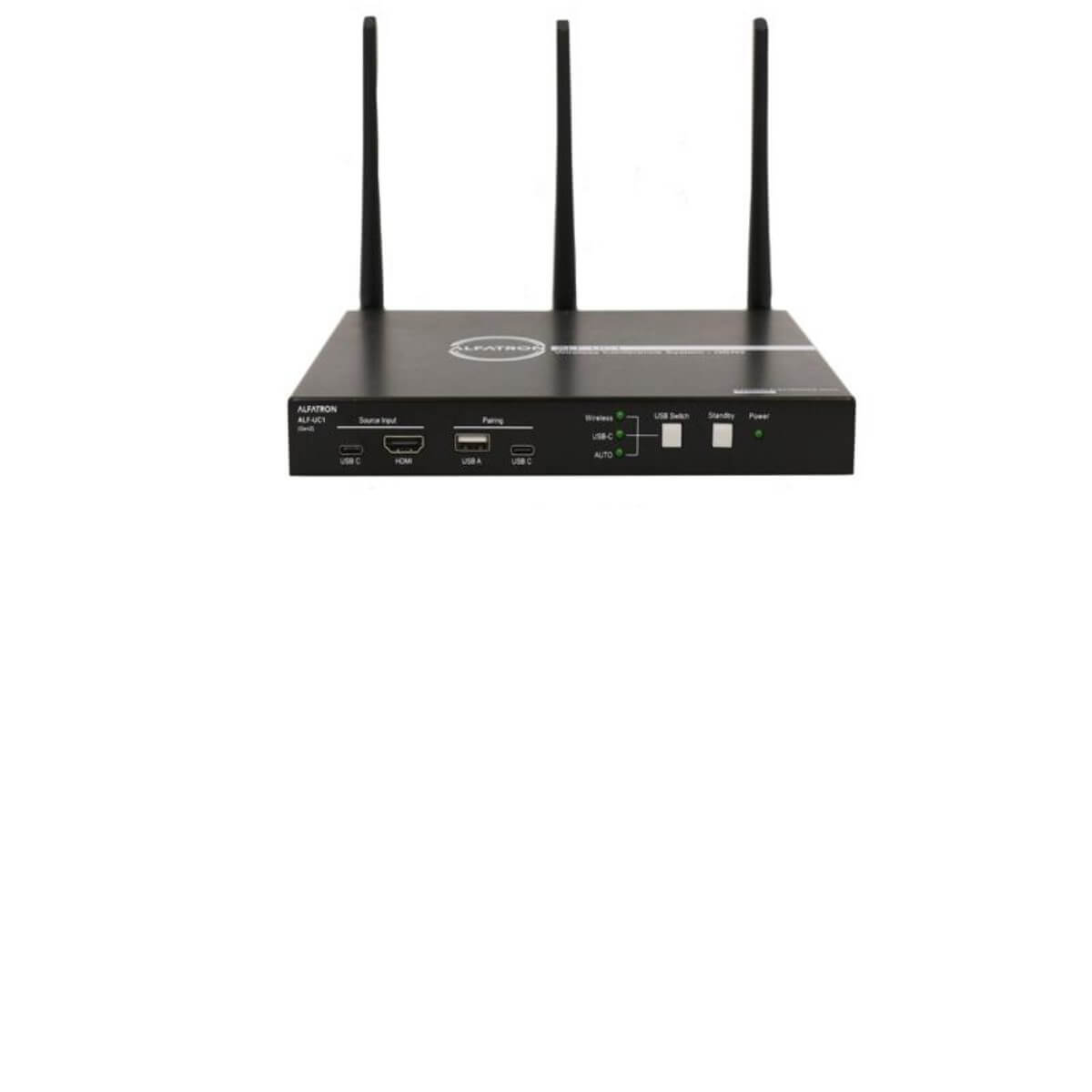

Alfatron ALF-UC1 (GEN2)
Wireless Presentation Switcher with Matrix and Multiview Dual Display Out

Description

The ALF-UC1(Gen2) is a 4K wireless conferencing system with two HDMI outputs and 4K optional dongles which makes connecting or participating within a meeting simple, with the touch of a button. Presenters (or even a series of presenters) can link your display with full-HD video and audio without the need for cables, converters or the need to be mindful of where connection plates may be in the room.

Specifications

• ALF-HDMI-D(Gen2) and ALF-USBC-D(Gen2) Dongle input resolutions 4k30
• Airplay, Miracast and Chromecast resolutions 1080p60

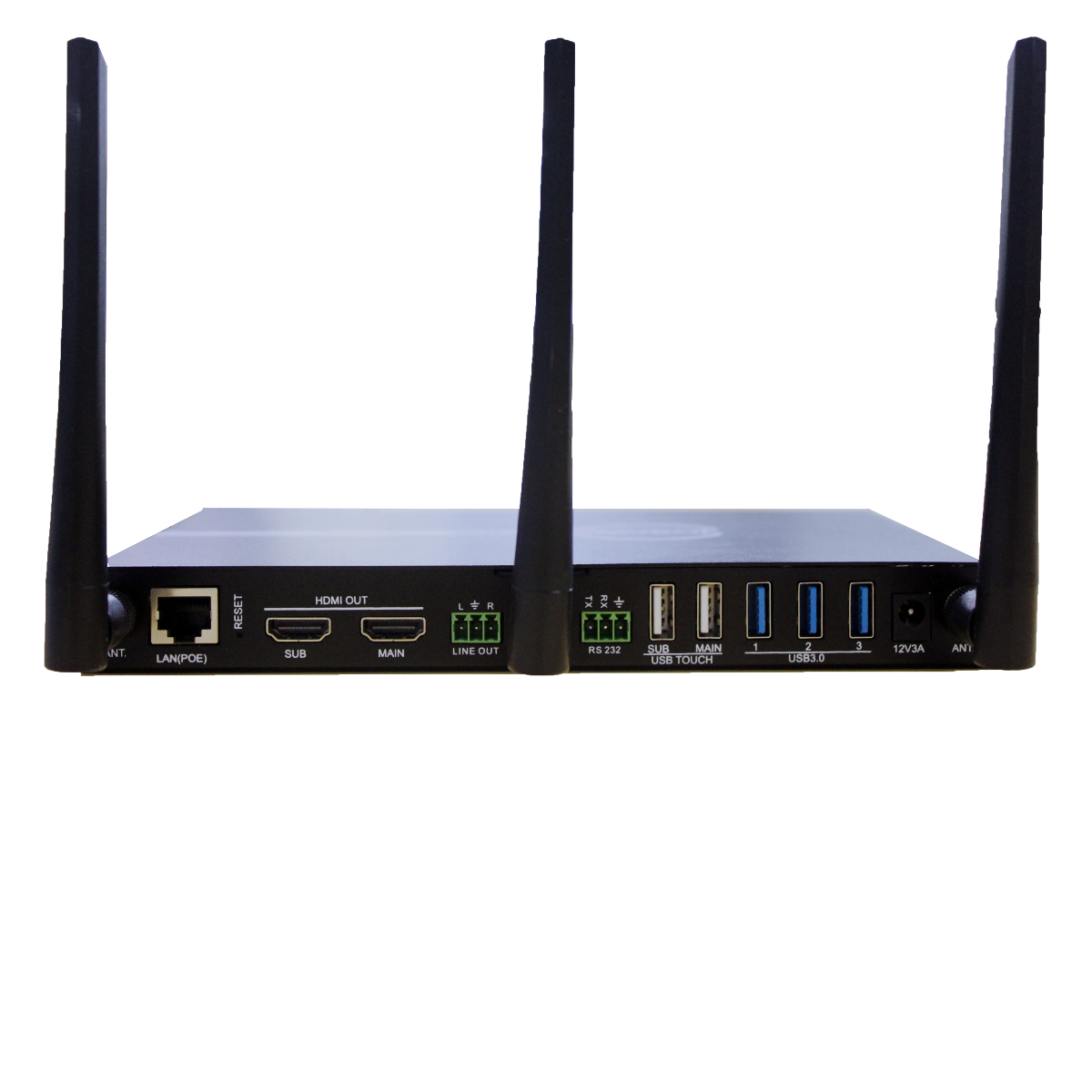

• Unit supports up to 3 x USB-A 3.0, 1 x Type USB C (2.0 Pairing), 3 x USB-A 2.0 (touch and pairing)
• Audio outputs HDMI, Phoenix connector, USB.
• Supports all major operating systems Windows, MacOS, Android, IOS.
• Plug-and-Play solution with Wireless USB drivers required
• WIFI Data rate is WIFI IEEE 802.11 b/g/n/ac
• WIFI 2.4GHz and 5GHz supported
• Lan port is a 1Gbs speed
• Latency under 100ms, Minimum 20s
• Local screens share visible connect persons from the Alfatron application showing you on your screen whatever is being presented in the room and also allows this to be shared into a VC call as a screen share, allowing far side participants to see other screens shared in the room without the local person being on the VC call.
• Control method is Web GUI, Telnet, RS232, Front buttons.

Downloads

• Alfatron ALF-UC1 (GEN2) Specifications (PDF)
