 Home > Matrix Switchers -> HDMI In - HDBaseT Out -> 8X8 -> Avenview -> SW-HBT-C6IRLT-8X8E 8X8 HDMI/DVI over HDBaseT Lite Matrix Switch, HDCP 1.1

Avenview SW-HBT-C6IRLT-8X8E
8X8 HDMI/DVI over HDBaseT Lite Matrix Switch, HDCP 1.1

Part #: SW-HBT-C6IRLT-8X8E
Satisfaction Guaranteed!
Our Price: $4,999.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $10 Off!
Top SW-HBT-C6IRLT-8X8E Specifications
  • Inputs: 8 HDMI/DVI, 9 IR Receiver, 1 RS-232, 1 RJ-45 , 1 Mini USB Type B (For firmware updates)
  • Outputs: 8 CAT5e/6/7, 9 IR Blaster
  • Supported Resolutions: Up to 1080p@60, WUXGA, and 3D
  • Audio Support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008

Description

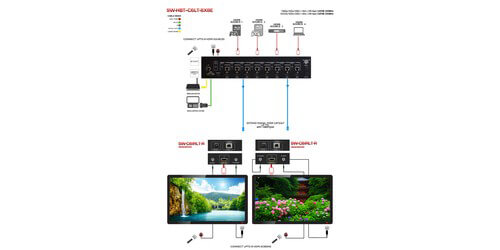

The Avenview SW-HBT-C6IRLT-8X8E is a 8x8 HDMI/DVI Matrix Switcher that has been designed to accept Full HD 1080p and WUXGA 1920x1200 @60 Hz signal. Users have the option to choose from up to 8 DVI/HDMI sources to output up to 8 connected displays over CAT5/6 cable that can be installed up to 196' away from the device. The HDBaseT outputs also allow for easy installation of future requirements or technology changes, these inputs will future-proof your audio video needs. Not only does this device support the transmission of video signals, but can also transmit multi-channel digital audio and bi-directional control via IR to four displays for a true digital experience over a single CAT5e/6/7 cable. This matrix switcher supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. For a seamless matrix switching control feature this device can function via a WEB GUI or LAN with any device that supports browser applications, for example iPad, Android device or windows 8 touch device. In addition to IP Control (Telnet & Web GUI support) this unit supports control through RS-232, remote control, and on-panel control. Making the SW-HBT-C6IRLT-8X8E a great solution for use in retail businesses, digital signage type applications, or in bar and restaurants. External and internal EDID settings are equally supported in this 2 U rugged enclosure device and comes backed by a 3 year limited warranty from Avenview.

Specifications

  • Video Bandwidth: 6.25Gbps
  • HDMI, HDCP1.1 and DVI compliant
  • Range: 196' using CAT5e/6/7
  • Control: RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
  • Supports 3D signal display dependent upon the output display EDID settings
  • Bi-directional IR from input and output locations
  • Power Supply: 24V , 6.25A DC
  • Power Consumption: 60W
  • Weight: 9.9lbs
  • Dimensions (L X W X H): 17.2"x 10"x 3.7"
  • 2 U size design
  • Warranty: 3 Years Limited

Q & A

This product has no questions - ask one!

Ask a Question

Reviews

There are currently no reviews for this product.

Write a Review
