Tilt/Pop Up Tabletop Box w/ 2 Power & 2 Cat6 - Black or Silver

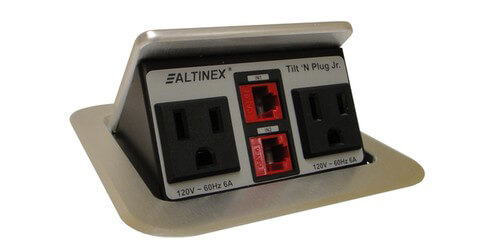

The Altinex Tilt 'N Plug Jr TNP151 installs flush in your table but when pressed tilts and pops open via a gas spring. The TNP151 provides 2 Cat6 and 2 AC power connectors. The data cables are 6' long with male terminated ends while the power is 9' and only one cable. You can choose from black anodized aluminum or silver anodized aluminum colors for the same price.

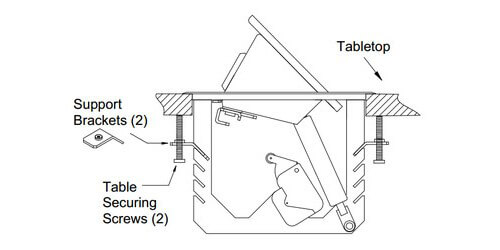

Installation is rather simple, cut your hole using the cutout template and drop in the box. Use the included thumb screws on the underside of the table, they use pressure to secure the box so no screws are required. The Altinex TNP151 is a high quality table box with a super thin bezel that provides power and data.
Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.
- Connections: 2 power and 2 Cat-6

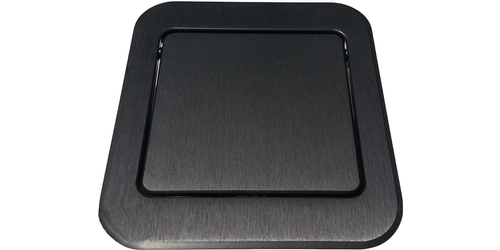

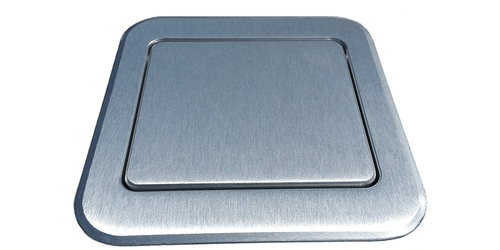

- Color: Black anodized aluminum or silver anodized aluminum
- Mounts flush into tabletop
- Auto-tilts/pops open/closes by pressing on top panel
- Dual network & AC power connectors

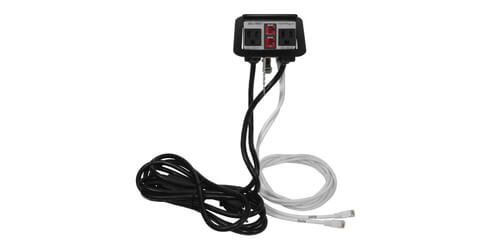

- 1 power cord (9' long)
- Two 6' male terminated data cables pass through to the underside of the table
- Bezel dimensions: 4.6" x 4.9"
- Cutout dimensions: 4.2" x 4.5"
- Table thickness: .75" to 2.25"
- Depth under table: 3.53"
- UL listed
- Mounting hardware included
- Warranty - Table box: 10 years, Gas spring: 1 year
