Pop Up w/ 4 Power, 1 HDMI, 1 USB, and 2 Cat6

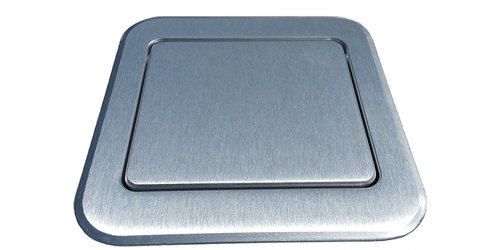

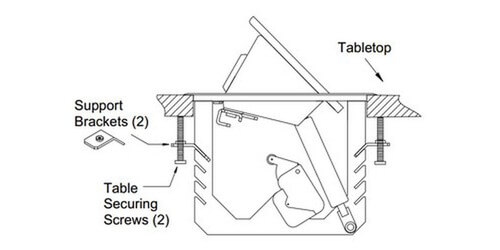

The Altinex TNP510-AC4D is a 4 power outlet full size Tilt N Plug from Altinex. When closed Tilt N Plugs create a modern appearance in any table top, to open press the top and the gas spring tilts the unit open exposing your connections. The unit ships with the most popular connections already installed with 6' cables including, (1) passive USB-A, (1) HDMI, and (2) CAT-6 connector, while the (4) AC power outlets have two total 9' cables coming out of the box. Simply drop in the hole into your table top and secure to the underside of your table with the included mounting hardware, the cables drop below to be plugged into your floor box or coupled to.
Choose between black anodized aluminum or silver anodized aluminum color.
- Color: Black anodized aluminum or silver anodized aluminum
- Connections: 4 Power, 1 HDMI, 1 passive USB-A, 2 Cat6
- A/V cables are 6' in length with male ended matching terminations, there are two 9' power cables
- Bezel dimensions: 7.86" x 6.53"
- Cutout size: 7.46" x 6.13"
- Depth under table: 6.53"
- Table thickness: .75" to 2.5"
- UL/C-UL Listed
- Pop-up dampening for smooth operation
- Includes: Mounting screws/brackets
- Warranty: 10 years on entire box and connections including leaf spring
