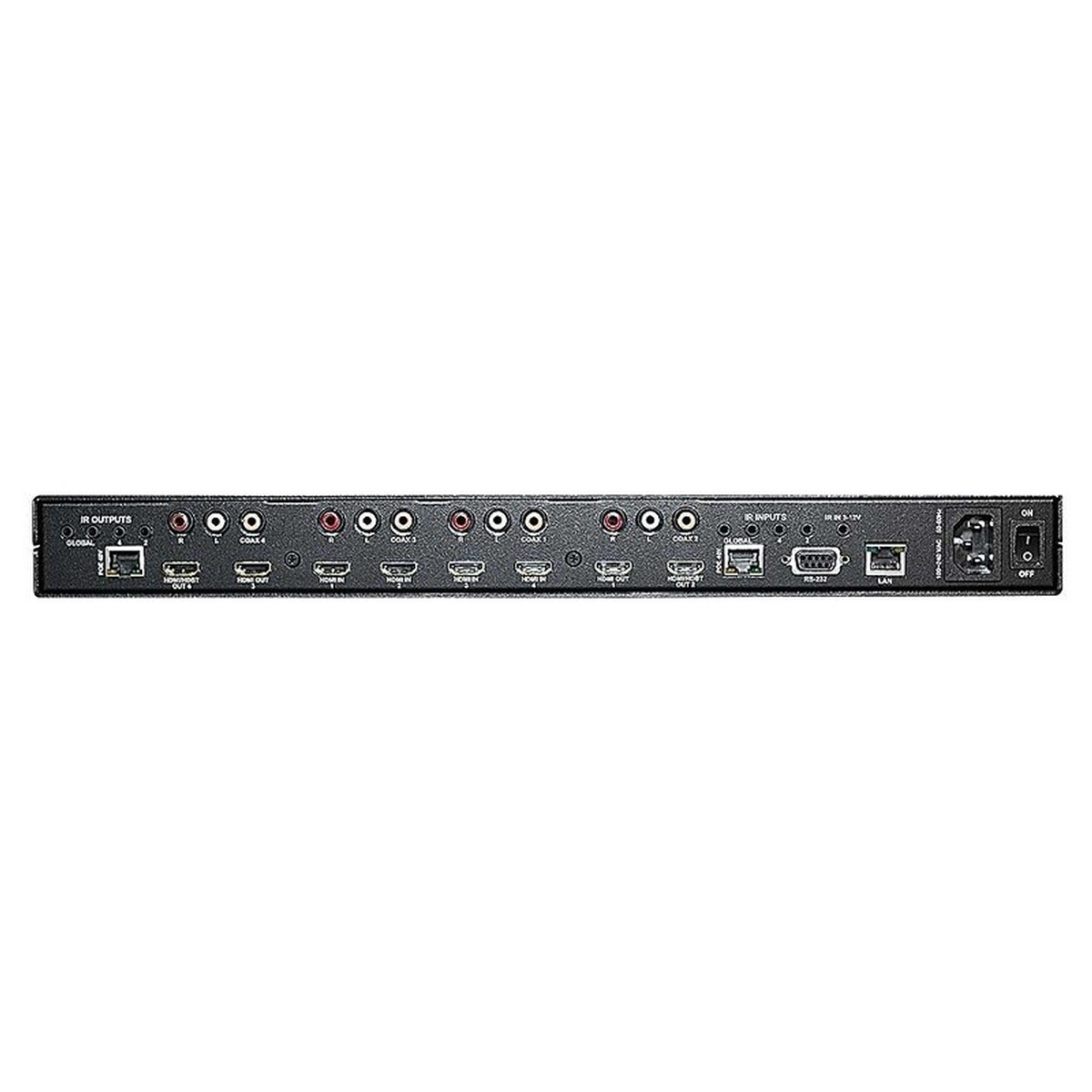

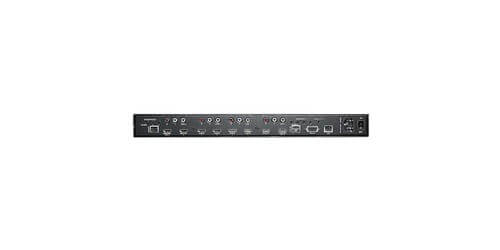

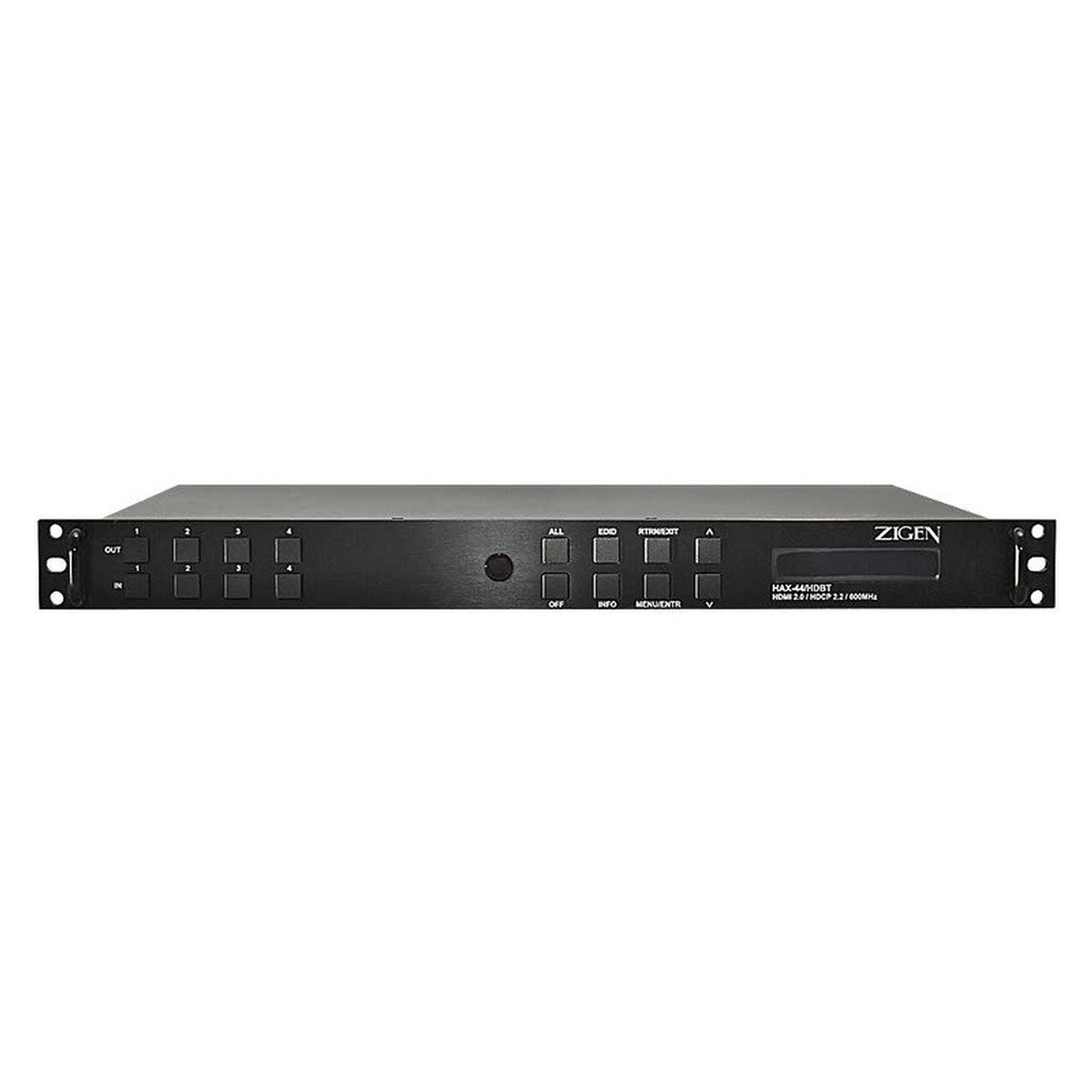

Zigen HAX-44/HDBT
HDMI 2.0 & HDCP 2.2 4x4 HDMI Matrix Switcher w/ 2 HDBaseT Out

Description

The Zigen HAX-44/HDBT is a 4x4 4K HDMI matrix switcher that has HDMI 2.0 inputs and outputs, the matrix is also HDCP 2.2 compliant to handle the latest in copy protection.  The switcher can handle 4K UHD up to 2160P60 4:4:4.  Output ports 2 and 4 on the matrix are mirrored HDBaseT outputs that can send your signal to up to 2 optionally purchased receivers over Ethernet.  The matrix has your audio covered as well and can handle uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio.  The matrix has integrated digital and analog audio de-embedding with individual volume control for each output.

The matrix can be controlled via bi-directional RS-232 and IR, there is an IR remote included as well.  A LAN port provides a web GUI that allows users to switch, manage EDID, and firmware updates.  All these features come in a compact 1 RU chassis that can be used in any residential or commercial application where you need to switch between UHD content.

Specifications

• HDMI Resolution: 4K UHD 2160P60 at 4:4:4 8-bit
• HDBaseT Resolution: 4K UHD 2160P60 at 4:2:0 pixel 8-bit
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• LAN: Web GUI interface
• Advanced EDID management
• Bandwidth: 18Gbps HDMI, 10.2Gbps HDBaseT
• Audio: Uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio
• Integrated IR sensor plus 3.5mm jack and remote control
• Bi-directional IR plus IR routing on all ports
• Bi-directional RS-232 Control switch or integrate 3rd party control
• SPDIF (coax) and PCM (L/R) ports for audio de-embedding of each output
• Pass through: CEC, 3D
• Size: 1 RU
• Weight: 3lbs
• Includes: Power cord, remote contro
• Warranty: 3 years

Downloads

• Zigen HAX-44/HDBT Manual (PDF)
