ZeeVee ZHDMPUNL
ZyPerUHD and ZyPerHD Unlimited Management Platform

Description

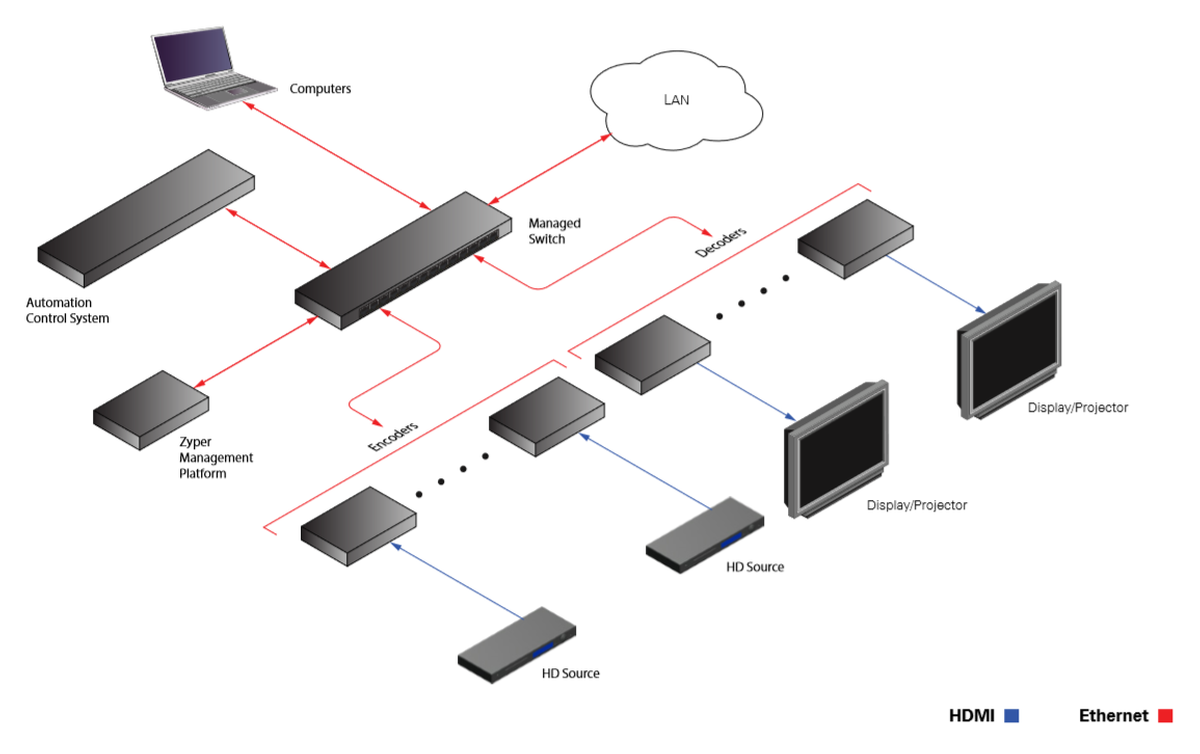

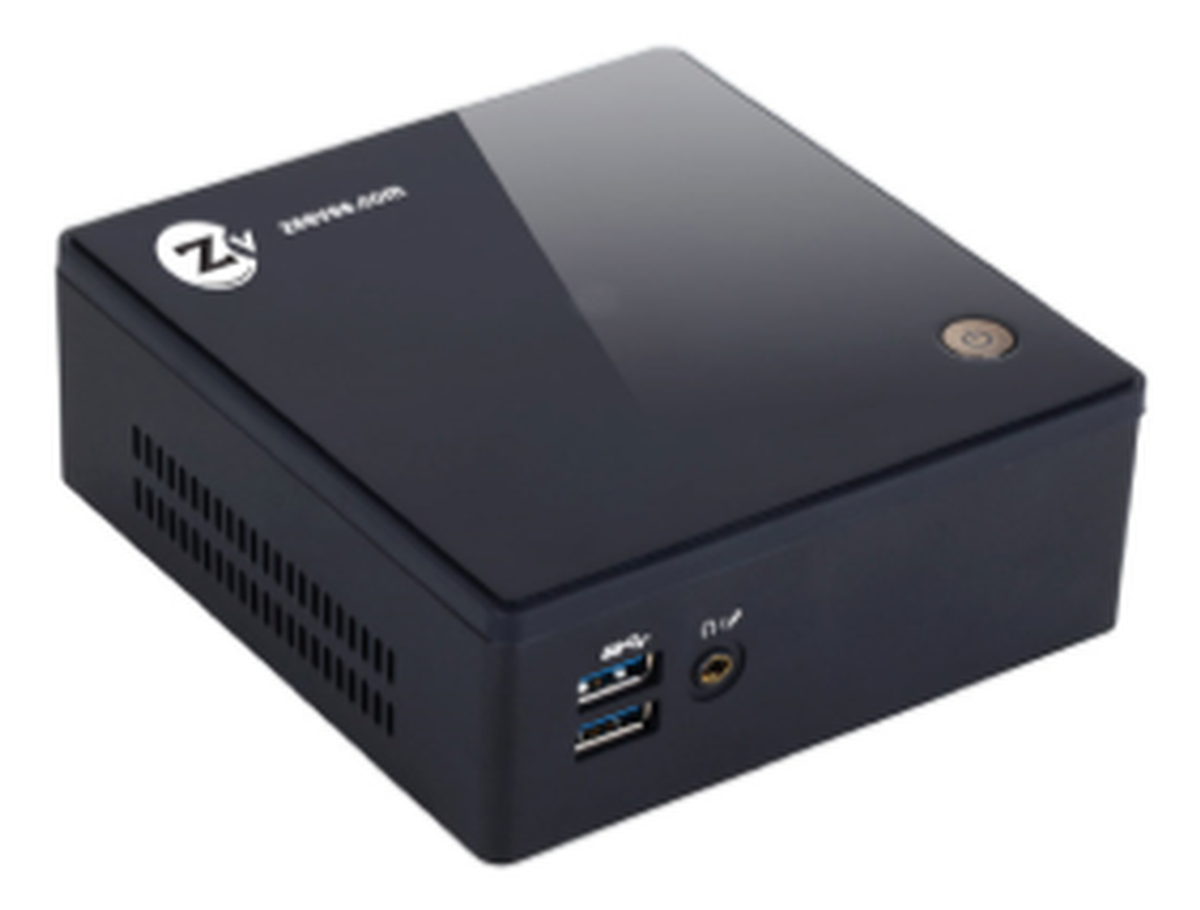

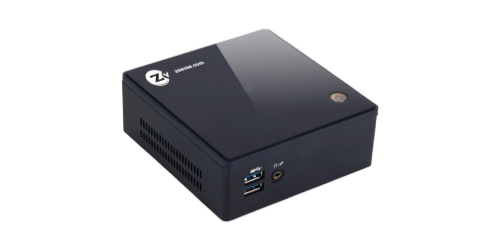

Go configure: ZeeVee has the ultimate management system for you. The Zyper Management Platform (ZMP) and the MaestroZ user interface make up your configuration toolbox. It automatically discovers all Zyper encoder and decoders in your AV over IP environment using plug-and-play technology. The ZMP comes on an NUC mini-PC that can configure and manage an unlimited number of encoders and decoders.

The MaestroZ interface allows you to independently route control, audio, and video signals. The operating system is a Linux-based program that is maintenance-free and comes with support and upgrades to the OS. With real-time monitoring of the system, you can easily see alerts for any devices, sources, or displays that go offline. Video walls are easy to configure with the ZMP, allowing you to create a video wall up to 5x5.

The ZMP is compatible with all ZyPer4K, ZyPerUDH, and ZyPerHD products.

Specifications

• 1 x RJ45
• 1 x 5V DC
• 1 x Kensington lock slot
• CPU: Intel Celeron Processor 3205U
• Operating System: Linux Ubuntu 14.04
• Internal Storage: 64 GB SSD
• LAN: Gigbit LAN (Realtek RTL8111G)
• Internal Memory: 8 GB
• Power Supply Input: 100~240 VAC
• Power Supply Output: 19 V DC, 3.42 A
• VESA: VESA bracket included, supports 75x75 and 100x100mm
• Dimensions: 4.25"x1.33"x4.5"
• Warranty: 2 years

Downloads

• ZeeVee ZHDMPUNL Manual (PDF)
• ZeeVee ZHDMPUNL Management Platform Quick Start Guide (PDF)
