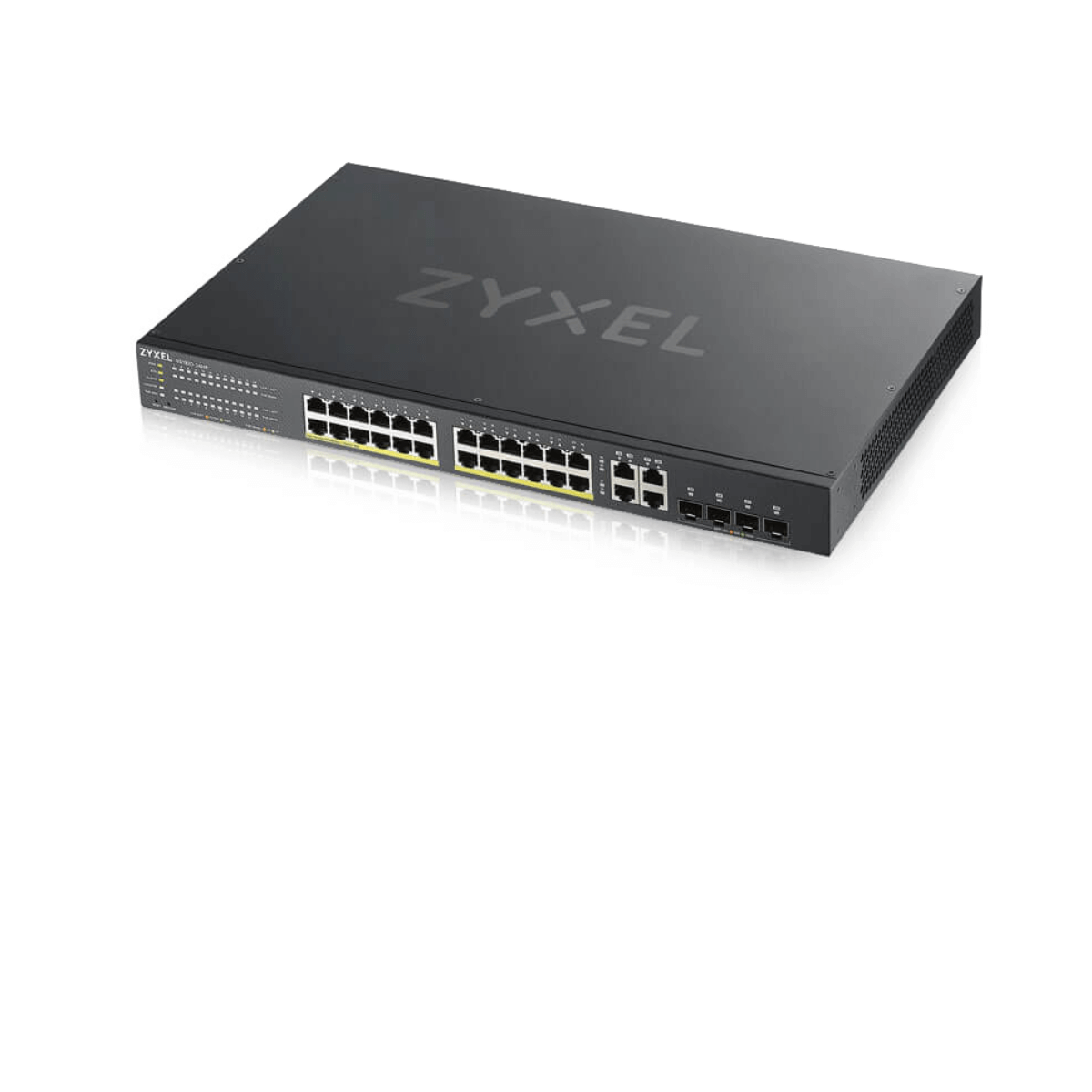

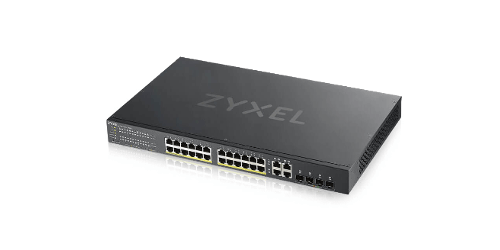

WyreStorm ZYX-GS1920-24HP
Zyxel 1GbE 24-port Switch for NetworkHD 100, 200 & 400

Description

Now from Wyrestorm the ZYX-GS1920-24HP brings convenience to your installation, WyreStorm now offers a number of pre-configured Zyxel switches for use with NetworkHD™ 100, 200 and 400 series. When purchased through WyreStorm, select Zyxel switch models are ready to go, creating the ultimate plug-and-play AV over IP solution. Whether the job calls for a large multi-switch topology or a simple single switch design, WyreStorm offers the right switch for the application.

Features:

• Pre-configured for NetworkHD with the following enabled:
• IGMP Snooping v2
• IGMP Snooping Immediate Leave
• IGMP Snooping Querier
• IGMP Filtering
• 24 x 1GbE PoE RJ-45 ports
• 4 x 1GbE SFP uplink ports
• Total PoE Budge: 375w
• Supports PoE 802.3af & 802.3at
• 802.1Q static VLANs/dynamic VLANs: 4 K/4 K
• Port-based VLAN
• Protocol-based VLAN
• IP subnet-based VLAN
• 802.1x
• SNMP v1, v2c, v3
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.3ad LACP

Specifications

• Supports PoE 802.3af & 802.3at

Downloads

• WyreStorm ZYX-GS1920-24HP Specifications (PDF)
