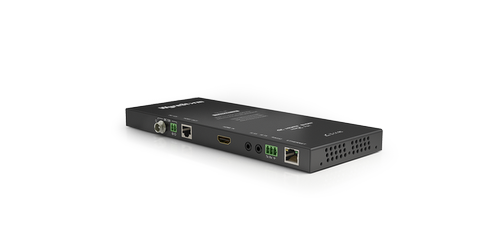

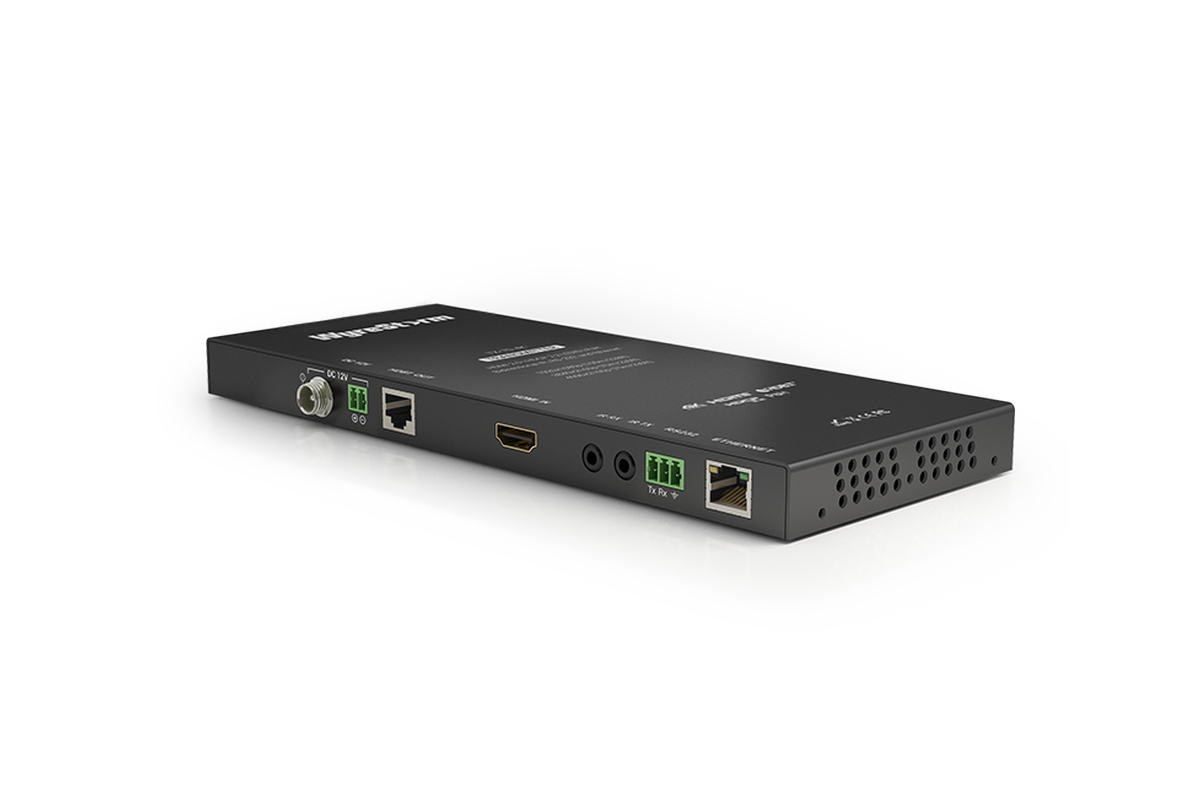

WyreStorm TX-70-4K
4K UHD HDMI, HDBaseT Transmitter - 230'

Part #: TX-70-4K
Satisfaction Guaranteed!
Our Price: $543.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $20 Off!
Top TX-70-4K Specifications
  • Inputs: 1x HDMI In: 19-pin HDMI type A female
  • Outputs : 1x HDBaseT Out 8-pin RJ-45 female
  • Video Resolutions: Up to 4K60 4:4:4 Range: 4K up to 230' using Cat 6a/7
  • Compliance: HDMI 2.0 and HDCP 2.2
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

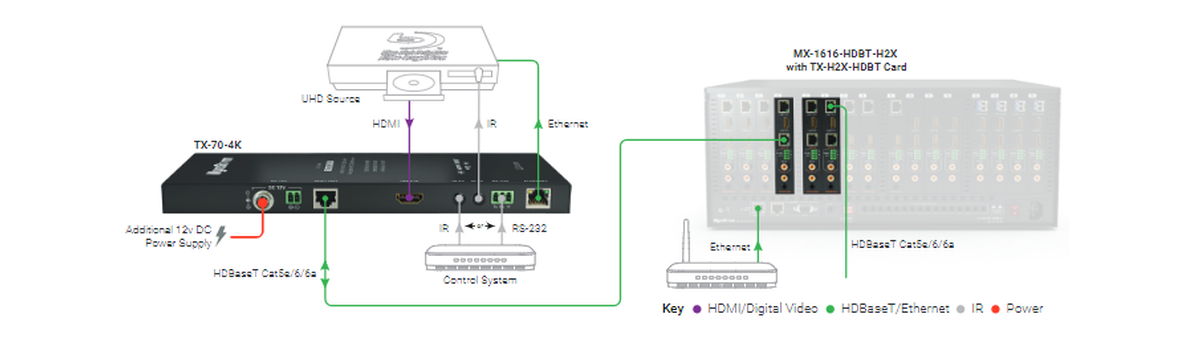

The Wyrestorm TX-70-4K is a HDBaseT Transmitter with PoH, 4K, and HDCP 2.2. The TX-70-4K extender offers users the ability to send high-quality 4K UHD with HDR signals up to 230ft to a compatible receiver and up to 328ft at 1080p resolutions, with multi-channel audio, control, ethernet, and PoH. This audio and video signal transmitter features 2 control options: it can handle both bi-directional IR and RS-232, when used with compatible devices. This device would ideally be used when wanting to send high resolution HDMI signals via HDBaseT at lengths greater than that of standard HDMI cabling. Making the TX-70-4K a perfect addition for use in Education, Government, Corporate, or Residential type applications.

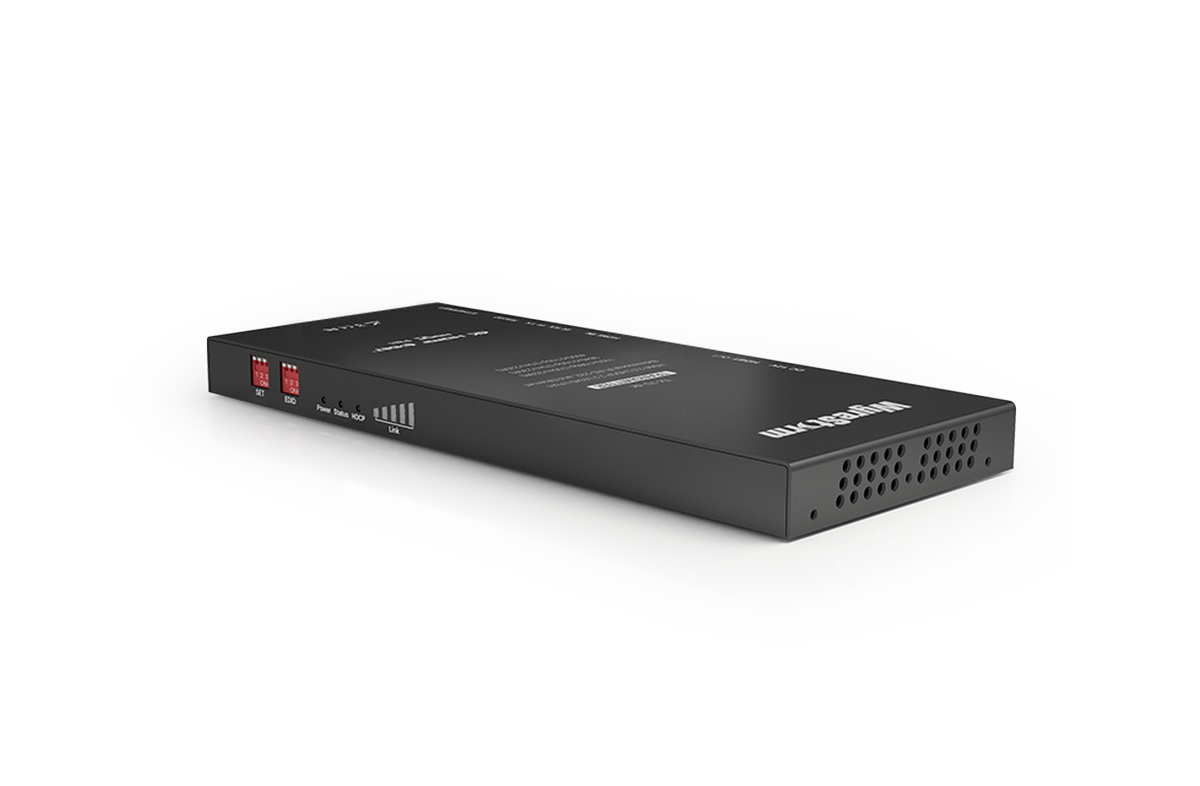

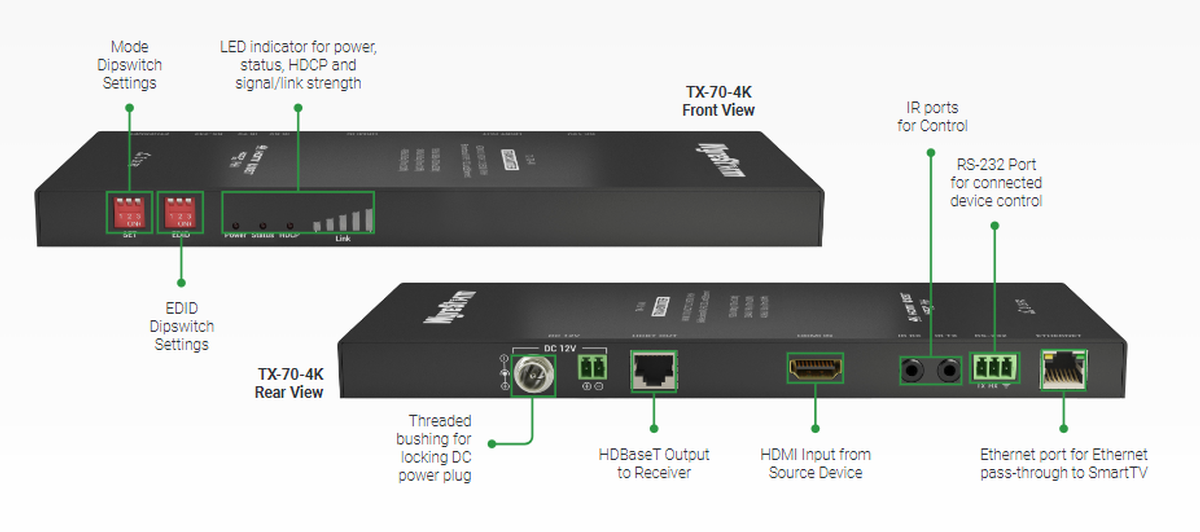

The Wyrestorm TX-70-4K Transmitter comes fully-loaded with feature rich capabilities. It is housed in a low-profile chassis to allow for convenient installation in limited space installs. There are Visual LED indicators for power supply, signal status for display connection, HDCP in signal, and Link between HDBaseT devices. On-Board EDID Management allows for 2 methods of EDID communication. Installers can easily select EDID passthrough from the connected screen/projector, or for added flexibility, choose to use one of the embedded options.

Primary Features of the Wyrestorm TX-70-4K Include:

• 4K UHD Signal Transmission up to 230ft
• HDMI v2.0 with HDCP 2.2
• Automatically adjusts feedback, equalization and amplification of signal
• Full 3D compatibility up to 1080p
• Transmits discrete wide-band bidirectional IR control signal / routed serial commands
• Energy efficient universal power supplies included
• Mounting brackets and IR connections included

Specifications

  • Control: Ethernet, IR, and RS-232
  • Output Video Encoding : HDBaseT Class A
  • Audio Formats: 2ch PCM | Up to DTS-X and Dolby Atmos
  • Power Supply: Input: 100~240V AC 50/60Hz | Output: 12V DC 2A
  • PoH: 48V 15.4W
  • Max Power Consumption: 26.5W
  • Dimensions (HxWxD): 1 x 8.5 x 3.5"
  • Weight: 1.14lbs
  • Included Accessories: 1x 12V DC 2A Power Supply (US/UK/EU), 1x 2-pin Phoenix Connectors, 1x 3-pin Phoenix Connectors, 1x Wide-band IR Emitters, 1x Wide-band IR Receivers (30-50KHz), 2x Mounting Brackets (1pr for TX and 1pr for RX), 1x Quickstart Guide
  • Warranty: 5 Years
