WyreStorm SWX-100-IW-US

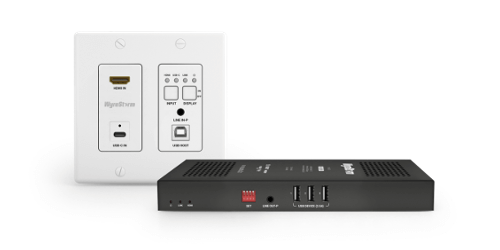

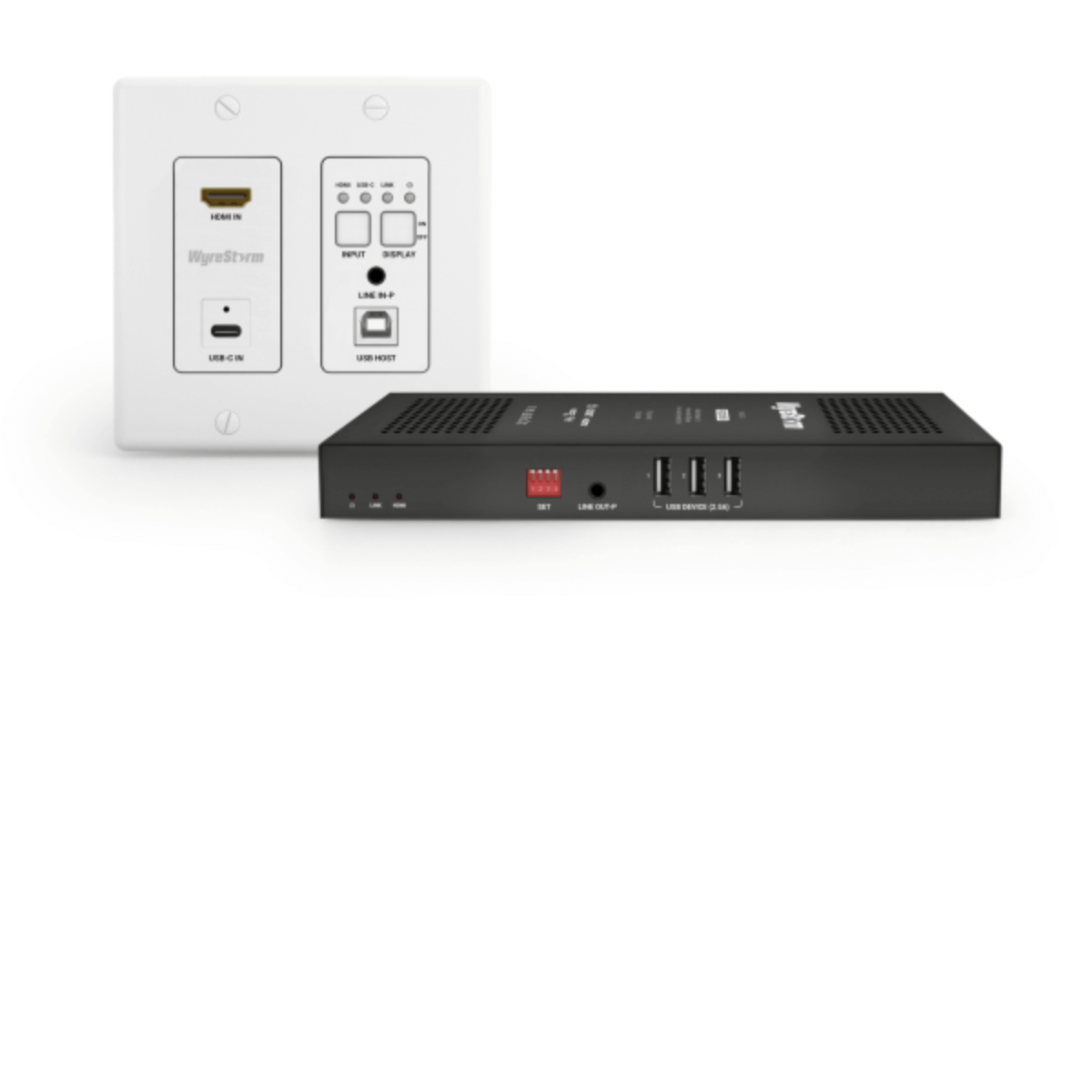

In-Wall Kit with the SW-120-TX3-US Transmitter and RX3-100 Receiver

Description

Introducing HDBaseT 3.0 Bundled Kits! Simplify your setup with Wyrestorm's all-in-one 4K60 4:4:4 HDBaseT 3.0 packages and experience uncompressed 4K60 AV up to 100m!

Specifications

• HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• USB 2.0 passthrough offering 300Mbps transfer and HID extension
• Features USB-C charging of up to 60 watts (with compatible PSU, not included)
• Supports independent analog audio lane (pass-through) transmitter to receiver
• Bidirectional RS-232 and CEC pass-through communication
• Shared RS-232 port
• API control or passthrough to RX
• Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
• Bidirectional PoH
• RX3-100:
• HDBaseT 3.0 Receiver supporting
• Uncompressed content up to 4K@60Hz 4:4:4 8bit
• HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
• HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• USB 2.0 passthrough offering 300Mbps transfer and HID extension
• Features 3x USB device ports
• Supports independent lane analog audio pass-through from transmitter to receiver
• Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)

Downloads

• WyreStorm SWX-100-IW-US Specifications (PDF)
• WyreStorm SWX-100-IW-US Manual (PDF)
