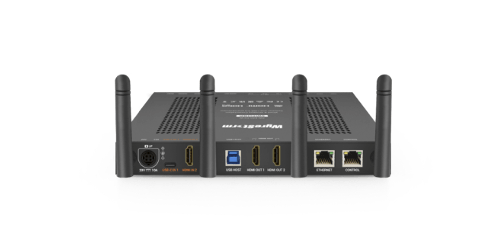

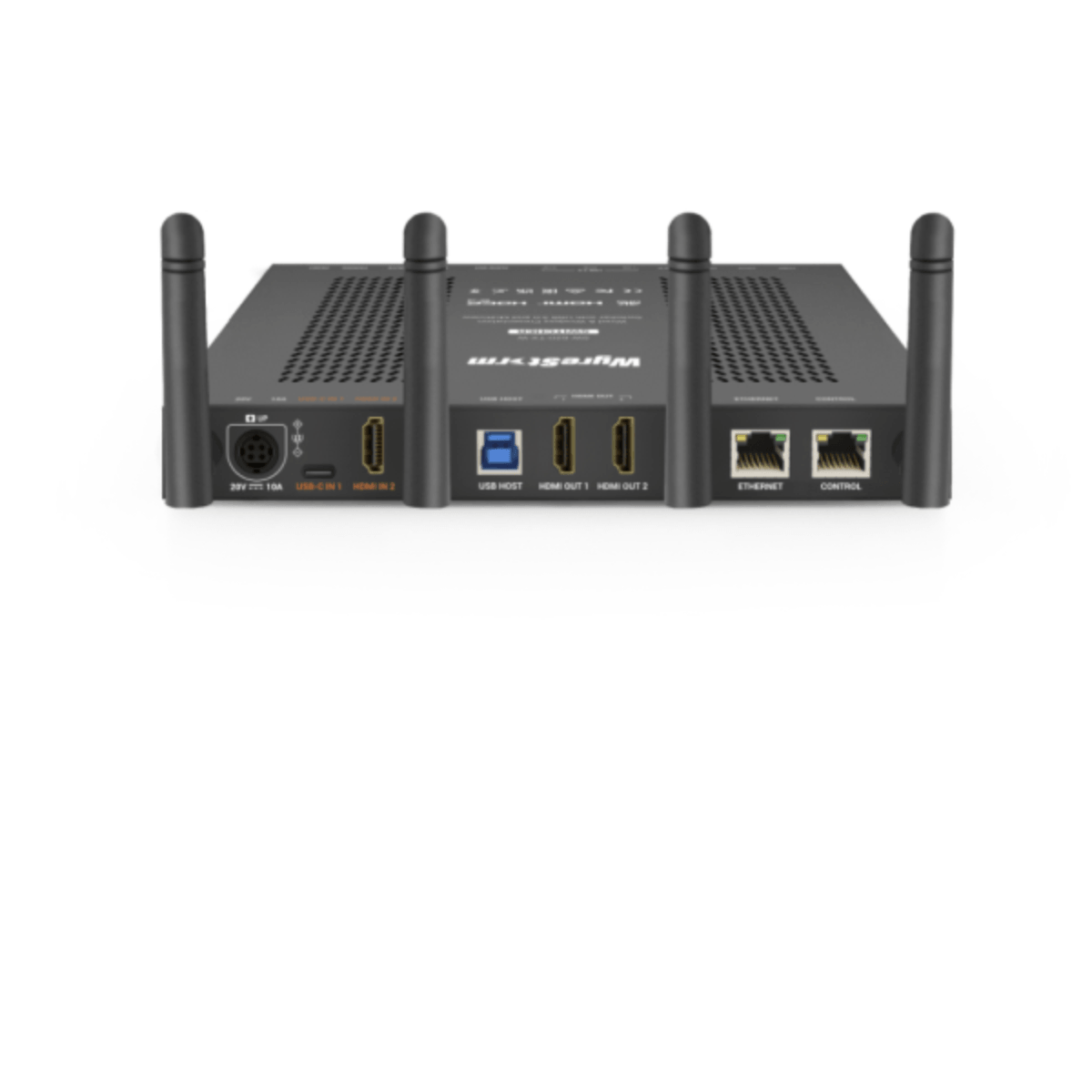

WyreStorm SW-620L-TX-W
4K Presentation Switcher with 2-Inputs, advanced USB-C integration, Multi-Stream Transport, Multiview & Wireless Casting
Part #: SW-620L-TX-W
Satisfaction Guaranteed!
Our Price:
$1,067.00
Top SW-620L-TX-W Specifications
- Supports up to 4K@30Hz video resolution on a HDMI input, 4K@60Hz video resolution on a HDMI output 1 and, 4K@30Hz on HDMI output 2, ensuring superior visual quality for your presentations.
- Offers multiple control methods, including RS232, Telnet, and a user-friendly Web UI, allowing for convenient management and configuration of the switcher.
- Features automatic switching modes such as last-in-first-out, ensuring the most relevant input source is always displayed.
- Implemented MST capabilities over USB-C. This means the USB-C input can send extended or duplicated desktop video, with a maximum input resolution of 4K@30Hz, to both HDMI outputs.
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The SW-620-TX-W is an advanced presentation switcher, tailored to meet the dynamic requirements of modern meeting spaces and conference rooms. This model offers quite a few important upgrades. Key improvements include one USB-C inputs with 100W PD and MST support for receiving dual video signals. The switcher now features an upgraded USB 3.0 switcher, further enhanced by support for wireless host through the APO-DG2. This addition allows for less cable clutter and cleaner installations.
Specifications
- Provides the ability to switch USB and video signals independently, offering greater flexibility in managing connected devices.
- Includes a balanced audio de-embedding port for connecting to audio equipment, ensuring high-quality audio output.
- Dual RJ-45 ports support Ethernet functionality in transparent mode, where it acts as a normal switch or isolated mode where control port is isolated.
- Supports firmware updates via the Web UI and offers multiple methods to restore factory settings, ensuring the device stays up-to-date and easy to troubleshoot.
- USB-C ports support 100W Power Delivery, allowing for efficient charging of connected devices.
- Supports up to Dual-View in Multiview mode, when single display is used
- Compatible with mainstream audio DSPs and video bars, including brands such as Q-SYS, Shure, Biamp, Extron, Yealink, Logitech and more. For details, please refer to the USB compatibility list.
- Compatible with Microsoft Teams Rooms(MTR), like Lenovo ThinkSmart Core Gen 1/2 devices.
Reviews
There are currently no reviews for this product.
