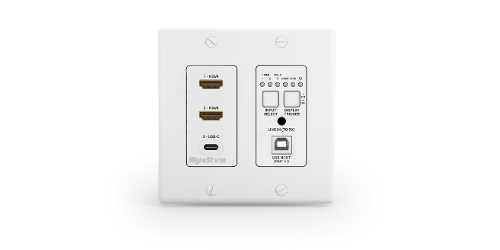

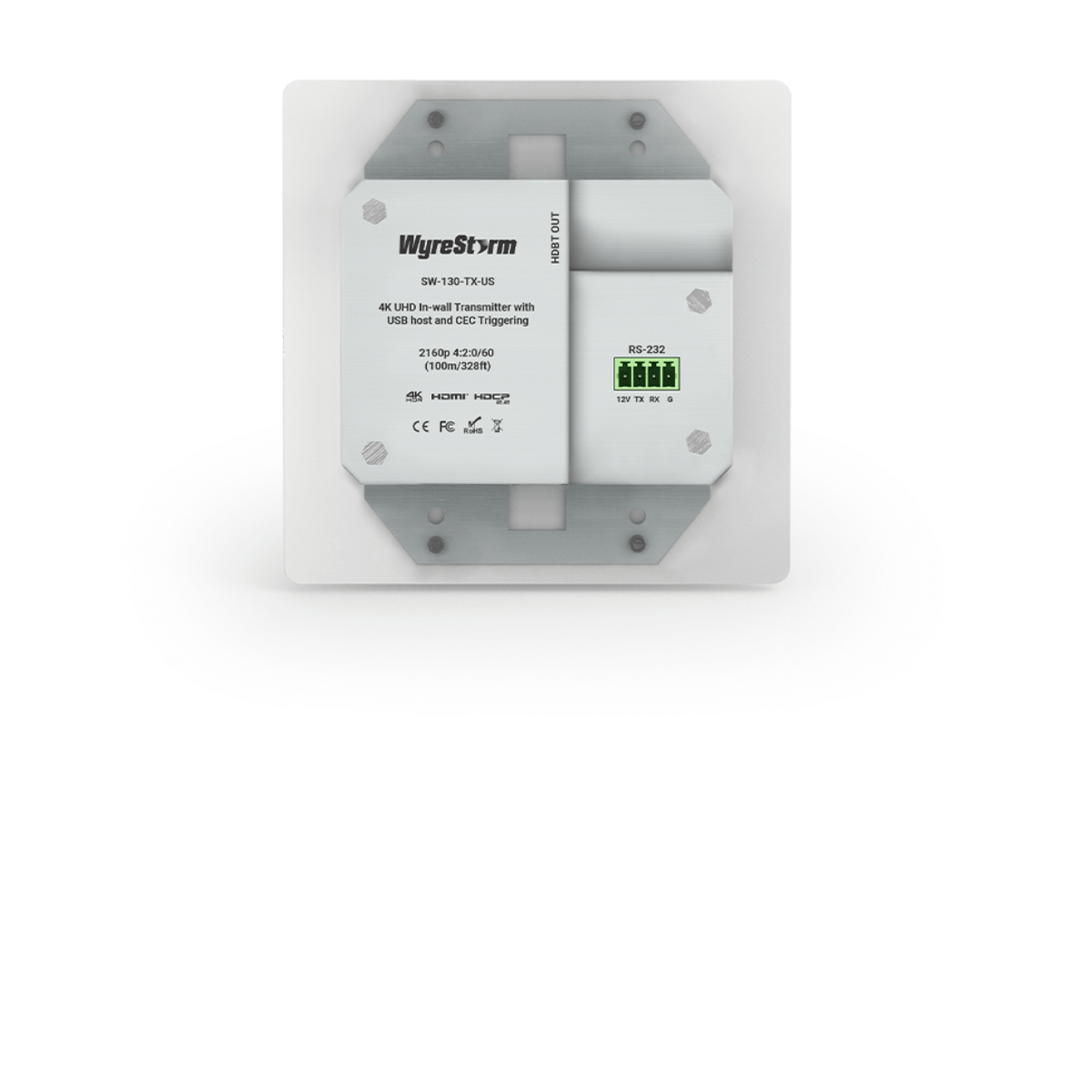

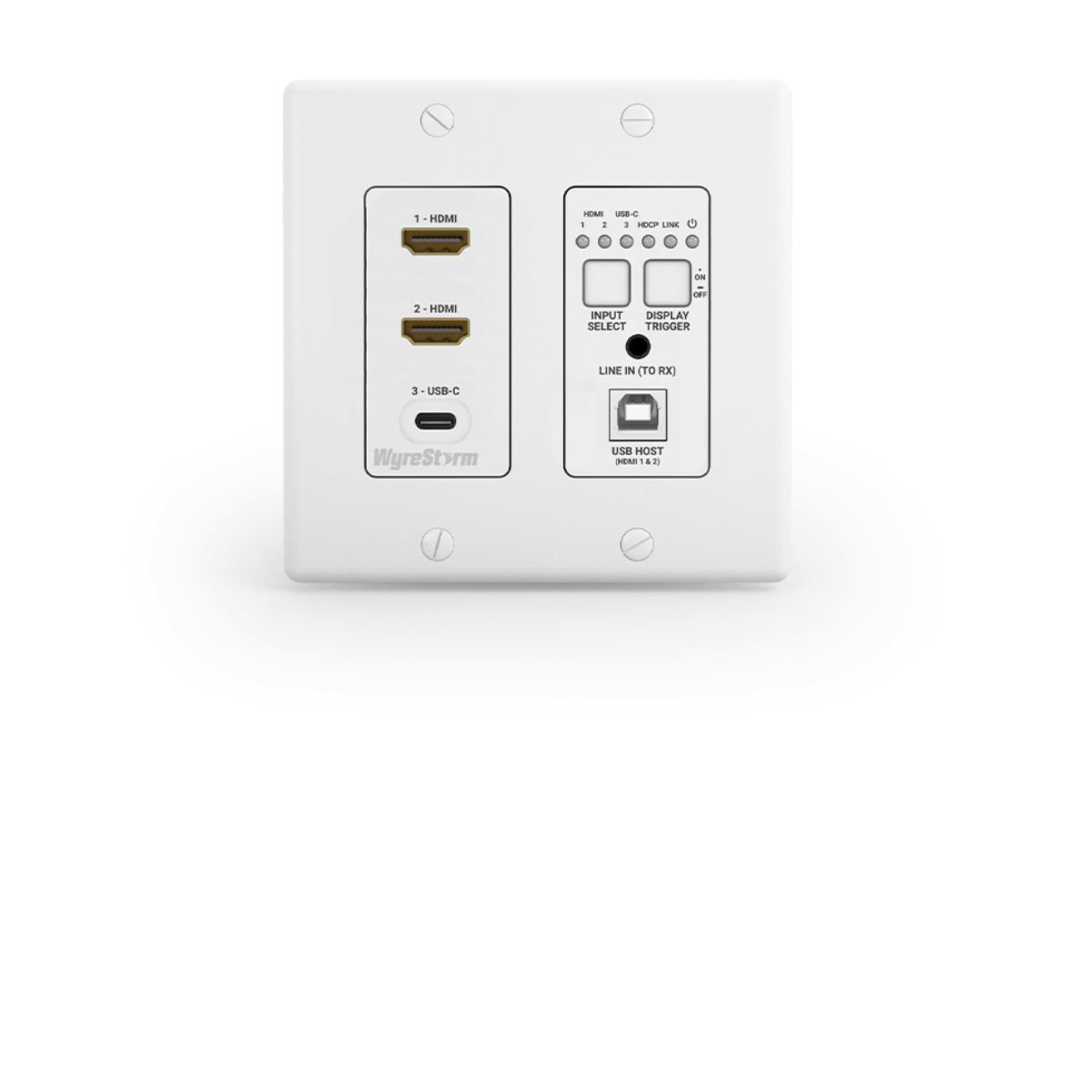

WyreStorm SW-130-TX-US
3-Input In-wall HDBaseT Transmitter - 4K Resolutions

Part #: SW-130-TX-US
Satisfaction Guaranteed!
MSRP: $852.60
Our Price: $809.97
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $50 Off!
Top SW-130-TX-US Specifications
  • Transmission Encoding: HDBaseT Class C | PAM16 Encoding
  • End to End Latency :10 s
  • Maximum Transmission Bit Rate: 10.2Gbps
  • Video Inputs: 2x HDMI In: 19-pin type A, 1x USB-C In: USB 3.1c Audio/Video (4.5Gbps)
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The Wyrestorm SW-130-TX-US is a 3 inputs and powerful HDBaseT transmission result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic or manual switching of 2 HDMI’s or USB-C and CEC power triggering via HDBaseT mean a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) and charging for the connected USB-C device.

Primary Specifications Include:

  • Professional HDBaseT switcher/transmitter for video conference or meeting rooms
  • 3-switchable inputs: 2 HDMI and USB-C supporting:
  • Content up to 4K/30 4:4:4 & RGB or 4K/60 4:2:0 8-bit
  • The latest HDR standards, including HDR-10 and Dolby Vision™ at 30Hz
  • HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
  • HD Multichannel audio up to DTS:X and Dolby Atmos™

Specifications

  • Outputs: 1x HDBT out: 8-pin RJ45
  • Maximum Pixel Clock: HDMI & HDBaseT: 340MHz
  • USB-C port supports alt-mode functionality for A/V and USB data
  • USB-C charging for connected devices up to 2A
  • Compatible with DVI-I and DP++ v1.3 signals from supported devices
  • Additional 2ch analogue audio input for sending separate stereo audio to RX
  • USB2.0 host port for connection of far-end devices such as webcams, smart touchscreens and microphones
  • Automatic or manual CEC triggering for compatible connected screens or projectors
  • Primary power supply via PoH from a supported receiving device (RX-700)
  • Additional power input via DC port on rear via 12v 1A PSU (not included). Port shared with RS-232 input
  • Control options include automatic switching, manual switching & CEC trigger and RS-232 control
  • Compatible with TS-280 touchscreen for control with 12v power outlet
  • White 2-gang decora fascia, removable
