WyreStorm MXV-0606-H2A v3
4K HDR 35m HDBaseT 6x6 Matrix Switcher

Description

Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0606-H2A v3 brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure signal integrity.

With 6 HDBaseT zone outputs and 4 mirrored HDMI outputs–which can be paired with WyreStorm’s hybrid HDMI cables or any extender–and CEC triggering for all 10 connected screens, the MXV-0606-H2A enhances the offering for the modern home or commercial installation.

Use with RXV-35-4K for 35m/115ft transmission of 2160p 4:4:4/60

Specifications

• HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
• Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 35m/115ft

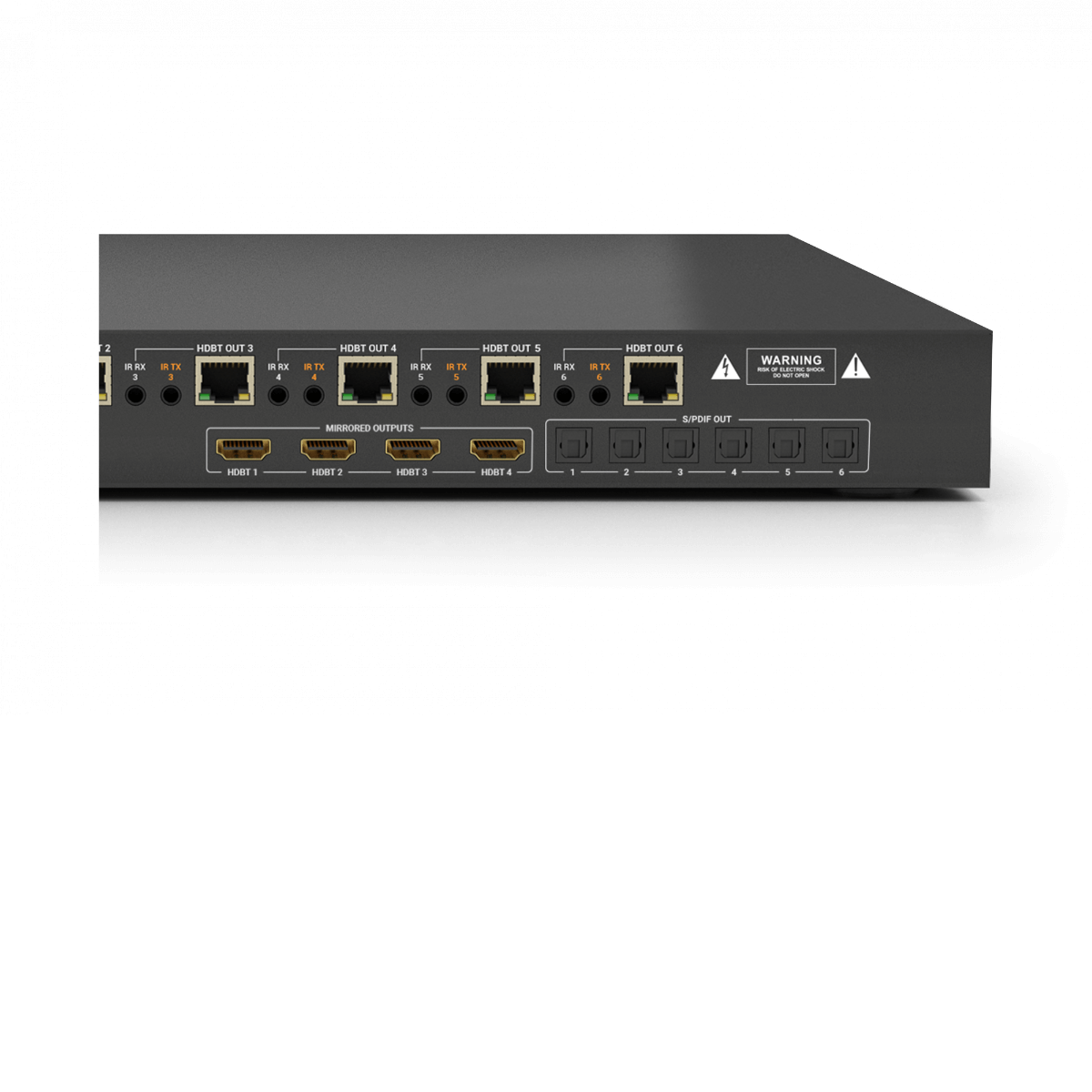

• 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional duplicate screens, projectors or AVRs, bringing the total number of connected displays to 12
• HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• 6 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical
• A/V Mute mode allows the routing of a signal to an output to be deactivated
• API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to read, copy, store or import EDID from connected devices
• Assign a different EDID to each connected source device

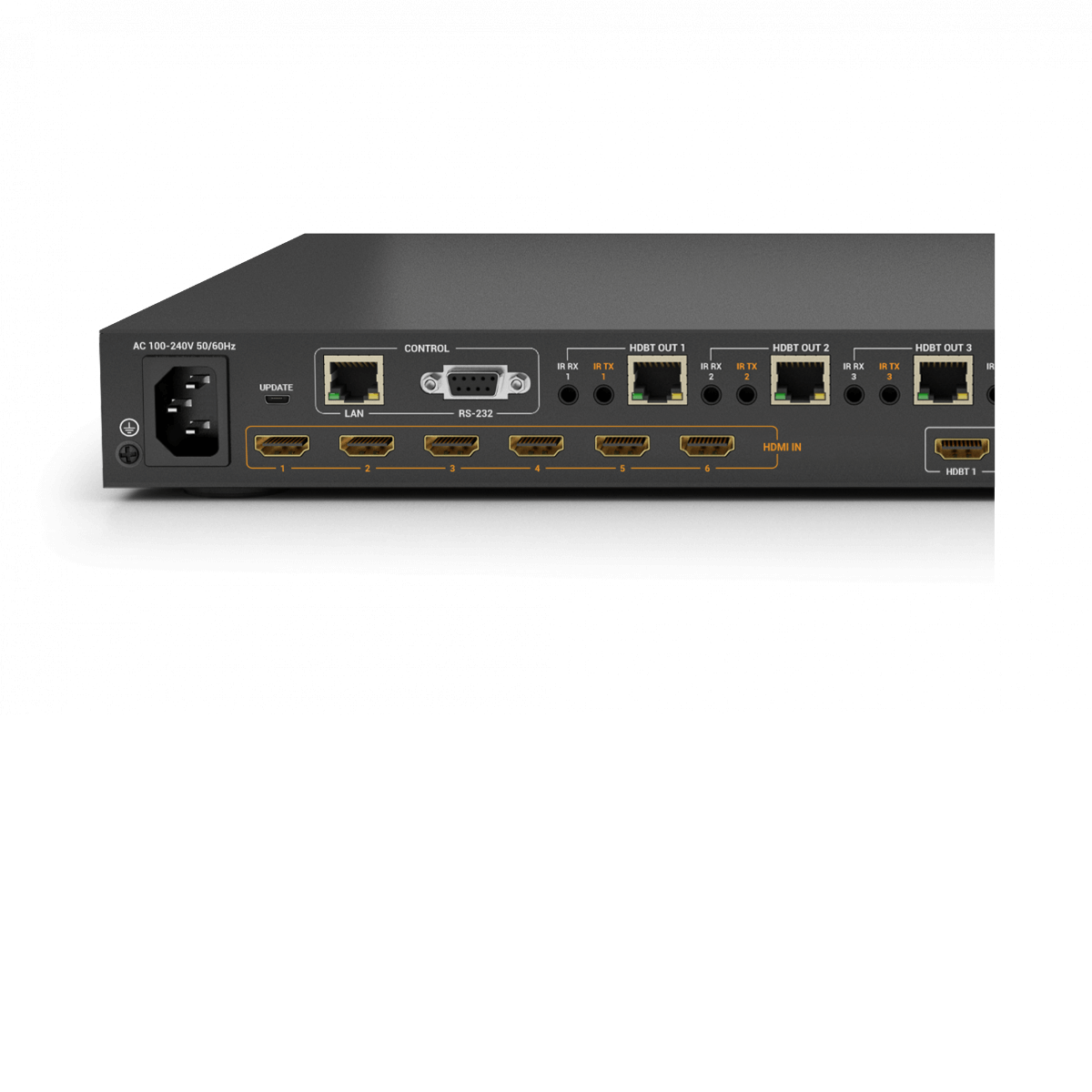

• Flexible control options front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI IR learning function allows source switching in a zone to be triggered by an IR command other than the default
• 3.5mm jack input for receiving local IR commands out of line-of-sight
• Simple switching matrix remote control included, which can be learned into a universal remote handset to allow the control of multiple devices from one handset
• Option for end-user WebUI switching interface

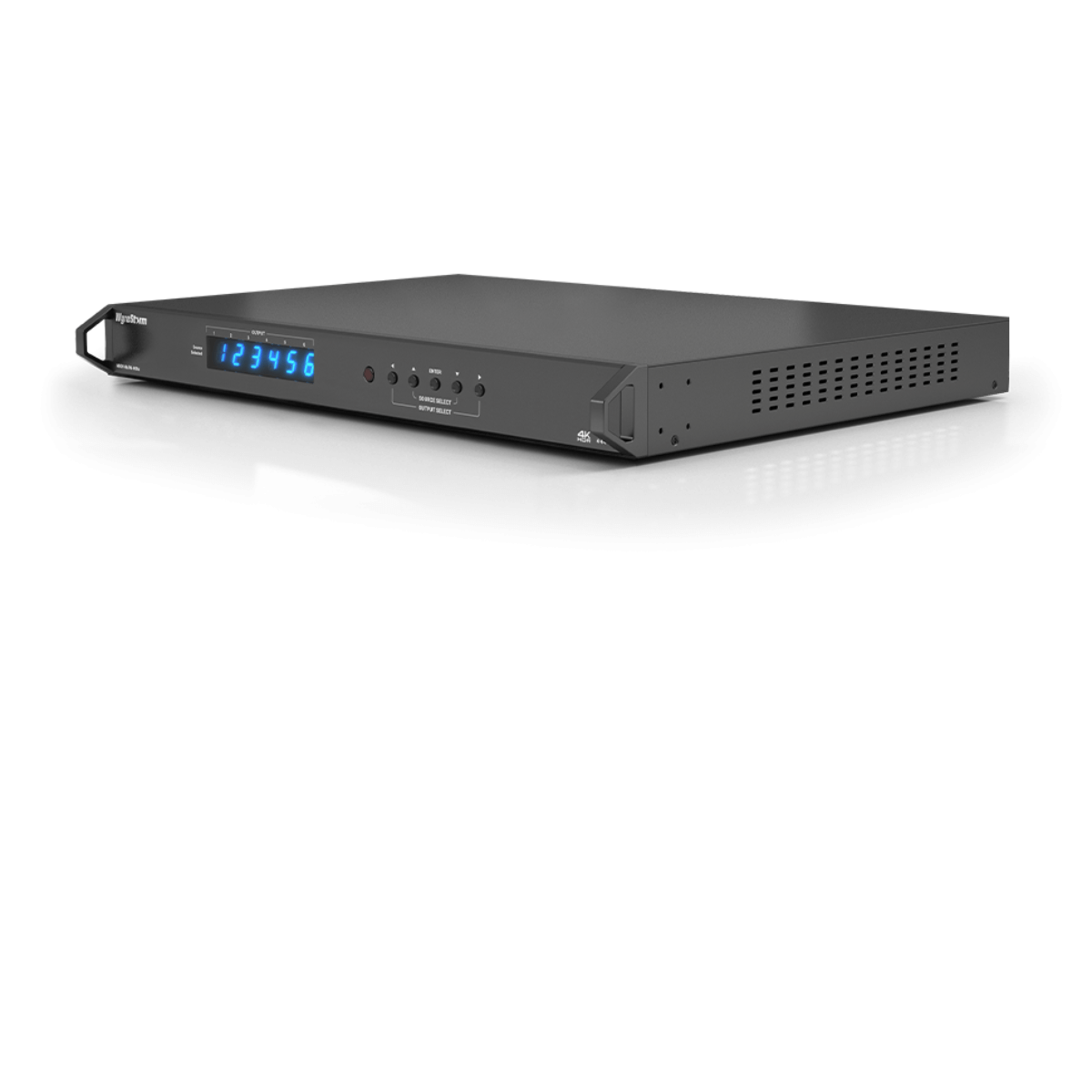

• Compact 1U chassis with adjustable depth rack mounting brackets included
• US, UK, EU & AU Power cables included
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables
• Automatic or API triggered CEC power triggers for all compatible connected screens or projectors
• *The ability to send custom CEC commands when standard CEC commands aren't compatible
• *RS-232 routing over HDBaseT allows discrete control of all connected display devices
• *Version 3 model required.

Downloads

• WyreStorm MXV-0606-H2A v3 Specifications (PDF)
• WyreStorm MXV-0606-H2A v3 Manual (PDF)
