Williams Sound PPA R38N
PPA SelectView FM Multi-Channel Receiver with OLED Display

Description

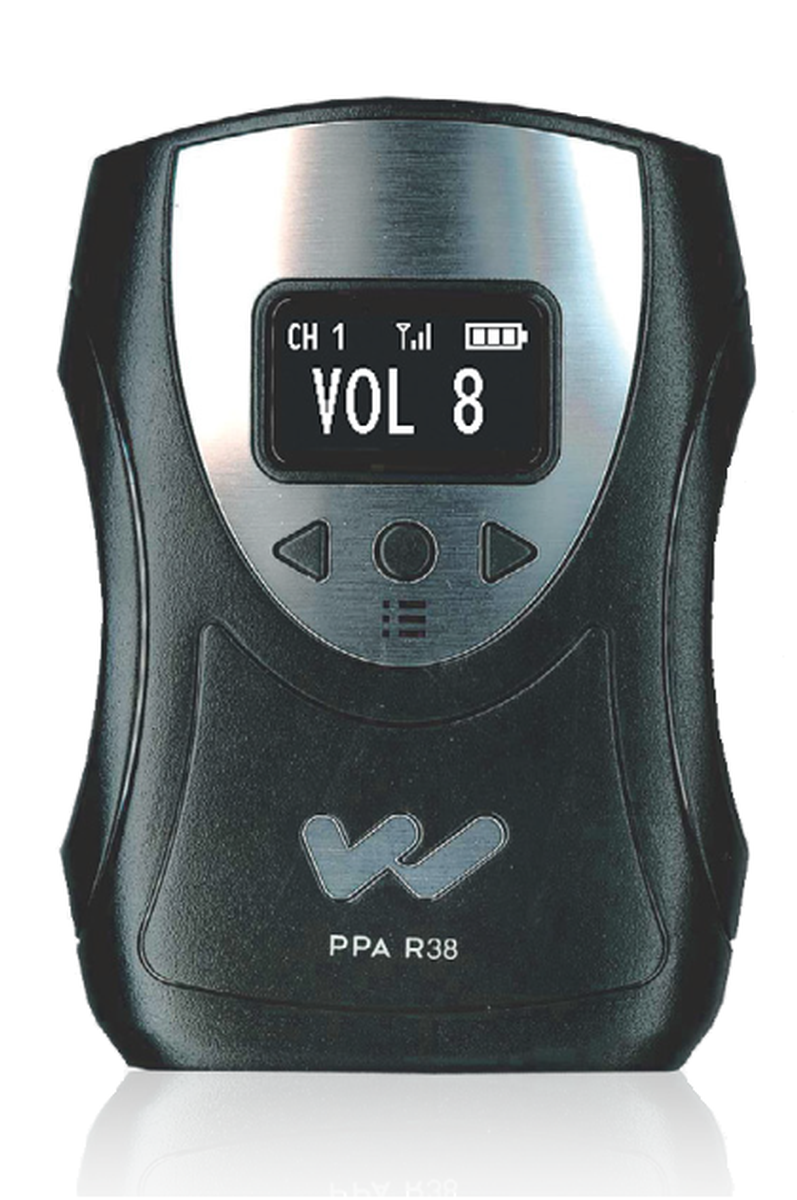

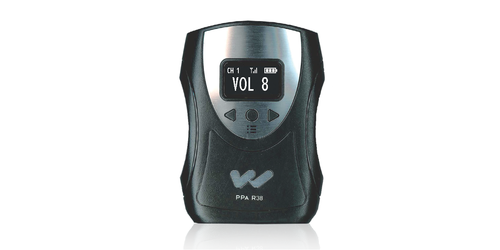

The PPA SelectView is Willaims Sound FM receiver featuring a high-resolution OLED screen. The OLED screen enables users to quickly view the receiver status and access all user settings. The receiver is compatible with the following transmitters: PPA T46, PPAT45, PPA T45NET, and PPA T27.

Key Features

• OLED high-resolution screen
• Access settings via on-screen menu – including all 17 wide-band channels
• Featuring stereo headphone jack
• Rechargeable or non-rechargeable batteries
• Digital volume controls
• 4-step battery level indication
• Display shows channel or frequency
• Step/seek function to increment channel manually, or seek to the next active channel
• Sleep Mode/Auto-Off saves battery power
• Soft Audio Turn-On

Specifications

• Battery Type: (2) AA Alkaline or (2) AA NiMH Rechargeable
• Battery Life: (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. / (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs
• Current Consumption: 52mA nominal
• Operating Temp. Range: 32 122 F (0 to 50 C)
• Channels: 17 Wideband, accessed via menu
• Operating Frequencies: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
• FM Deviation: 75 kHz
• De-Emphasis: 75 S
• Display Screen: 1" OLED
• Power Indication: Power button, backlit green Good battery strength glows solid / Low battery flashes
• Sensitivity: 2 V at 12 dB Sinad with squelch defeated
• Input Overload: 100 mV
• Frequency Response: 200 Hz 15 kHz, 3dB
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: Minimum 65 dB @ 1.0V
• Receive Antenna: Integral with earphone/headphone cord
• Audio Output: 35 mW max at 16
• Headphone Connector: 3.5 mm stereo jack, mono output for stereo or mono earphones/headphones
• Supplied Earphone: Stereo,earbud-type with foam cushion, 3.5 mm plug, 32
• Power Save Mode: Enters sleep mode after approximately 3 minutes of no RF signal
• Approvals: FCC, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories

Downloads

• Williams Sound PPA R38N Specifications (PDF)
