Williams Sound IR RX20
Infrared Receiver

Description

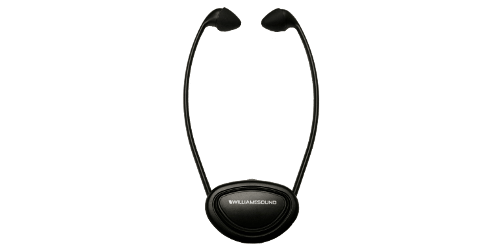

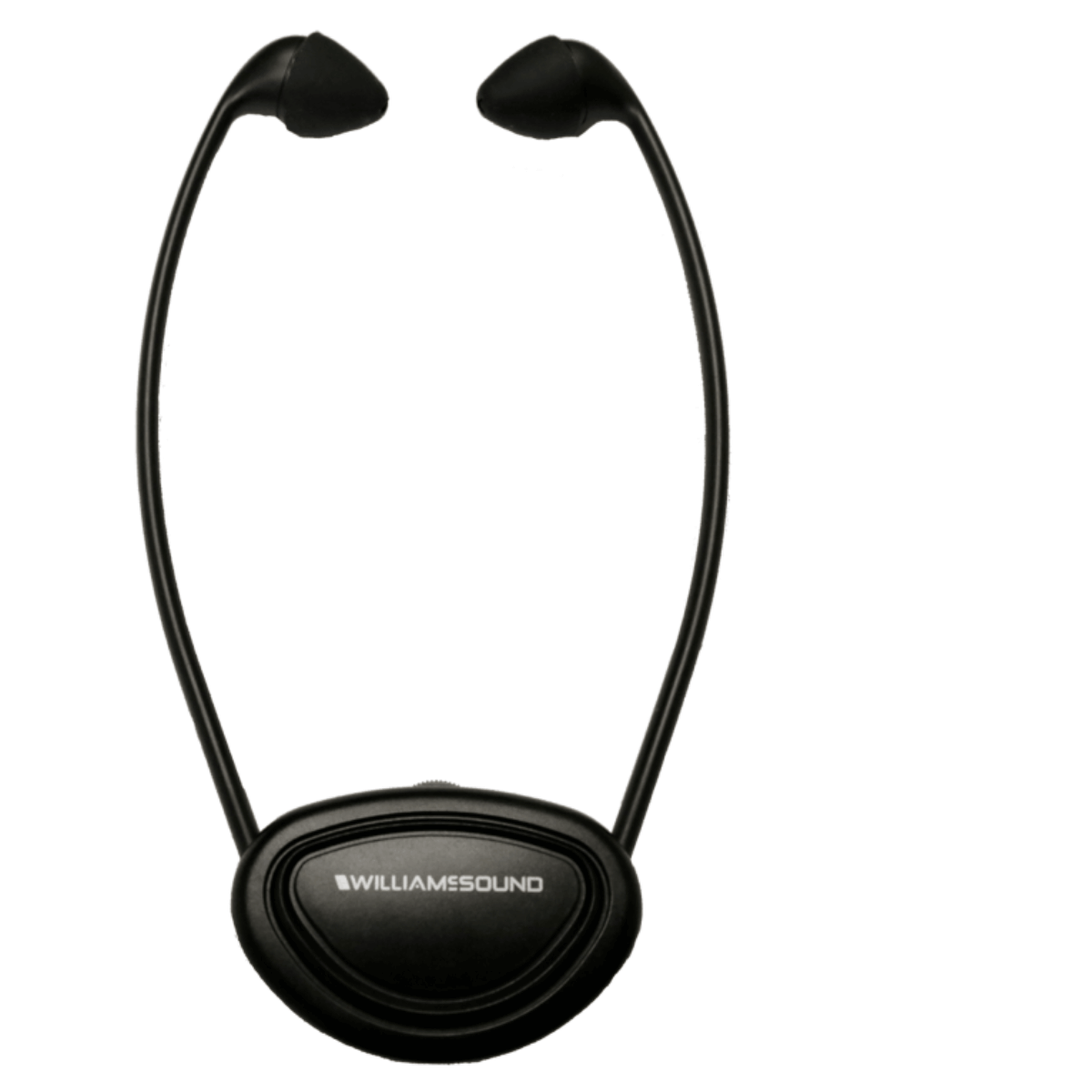

The IR RX20 is a comfortable, stereostethoscope -shaped infrared receiver.

Specifications

• Battery Charger: CHG 520
• Operating Temp: 32-122° F (0-50° C)
• Range: Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter
• Operating Frequency: 2.3 MHz or 2.8 MHz or stereo
• Frequency Response: 100 Hz to 12 kHz, ± 3 dB
• Signal to Noise Ratio: 60 dB at 10 m
• Controls: Volume control thumbwheel
• 3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power
• Acoustic Output: 120 dB MAX SSPL90 with 2 cc coupler
• Compatibility: Compatible with 2.3 MHz and 2.8 MHz IR transmitters
• Headphone Jack: 3.5mm stereo
• Ear pads: EAR 089
• Approvals: CE, RoHS, FCC, Canada, RCM, VCCI, WEEE
• Warranty: 5 years (90 days on battery)
