Williams Sound IR ME1
IR+ Combo
Manufacturer SKU: IR ME1
Satisfaction Guaranteed!
Our Price:
$3,430.00
Top IR ME1 Specifications
- Dimensions: 19" (W) x 1.75" (H) x 8.2" (D) (48.3 cm x 4.5 cm x 20.8 cm)
- Weight: 5.2lb. (2.4 kg)
- Color: Black
- Rack Mount: Single Rack Unit
"Quick and easy to find what I was looking for."
-Brandon K.
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

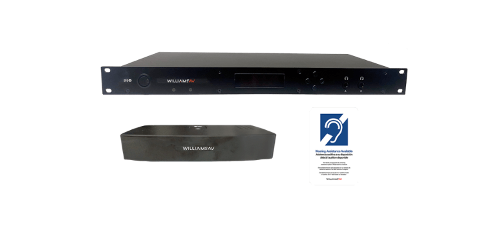

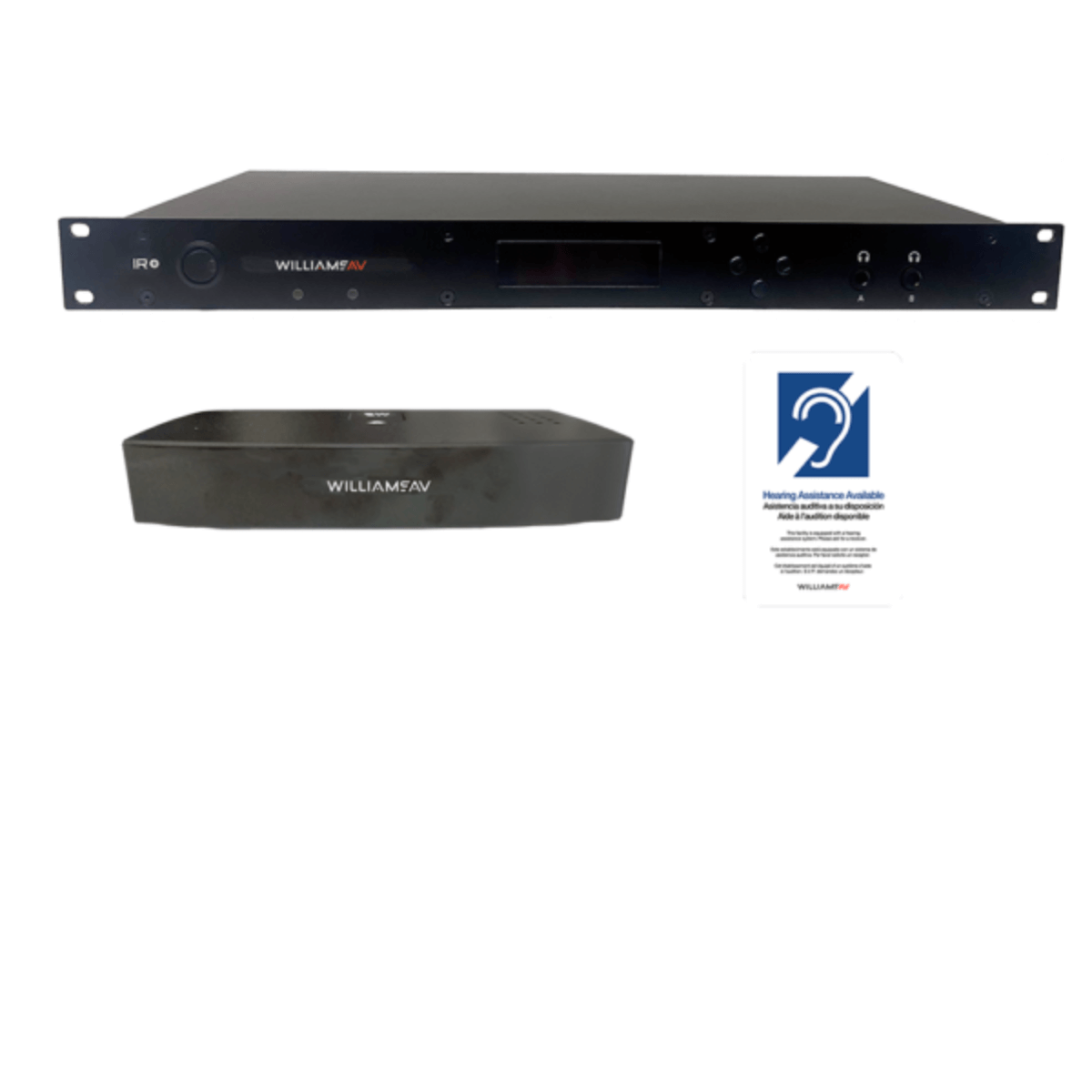

IR Plus system with emitter and ADA sign
Specifications
- Power Supply: International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive
- Power Switch: Rocker switch with LED
- Signal to Noise Ratio: 67 dB (typical)
- Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
- Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz
- Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response
- Total Harmonic Distortion: Less than 2%, electrical response
- Audio Processor Functions: DSP based
- Compression 1: 1, 1.5: 1, or 2: 1
- High-pass and low-pass filter frequency control
- Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
- Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing.
- Audio Input: (2x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
- Dante: Optional
- Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics
- Remote Configuration: Available through embedded website
- Headphone Output: (2) 1/4" headphone jacks on front panel for monitoring CH A and CH B audio inputs
- Emitter Output Jack: Four RJ-45 ports for CAT5e cables
- provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
- Operating requirements: 0-50ÂșC ambient temperature, non-condensing, non-corrosive atmosphere
- Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
- Warranty: 2 years on Modulator, 90 days on accessories
