Williams Sound DWS PCS 2 400
Digi-Wave Personal Communication System

Manufacturer SKU: DWS PCS 2 400
Satisfaction Guaranteed!
MSRP: $1,390.00
Our Price: $1,252.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $25 Off!
Top DWS PCS 2 400 Specifications
  • Dimensions: 4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
  • Weight: 3.3 oz (94 g) including battery
  • Color: Black/Silver (Front/Back)
  • Case Material: Black ABS plastic
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

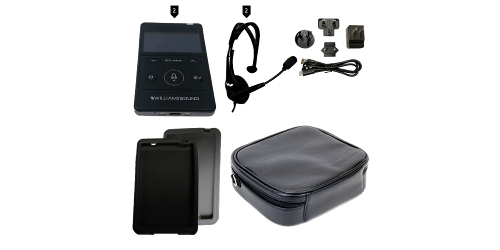

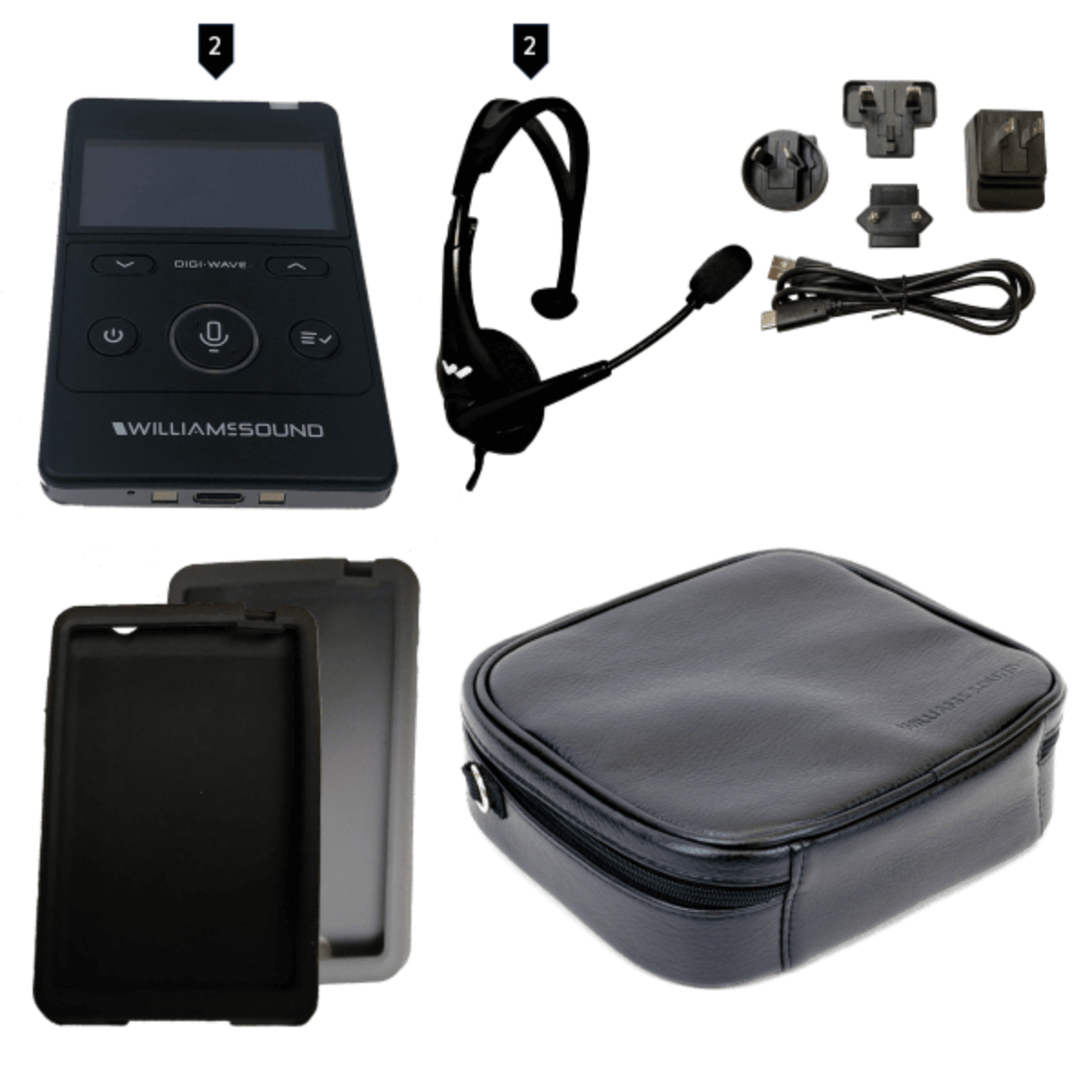

Digi-Wave Series 400 Personal Communication System

Specifications

  • Battery type: Lithium Polymer with smart charge built into transceiver
  • 1800 mAH
  • Battery life: Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
  • Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
  • Charge time: 5 hrs. approx.
  • System Voltages: OLED 14VDC
  • RF 5VDC
  • Logic 3.3 VDC
  • Operating frequencies: 2.4 GHz (ISM band)
  • 2402 ? 2476 MHz FHSS
  • Audio Frequency response (-3dB Level): Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz
  • SNR: 73 dB (A-weighted, default Rx volume with mic input )
  • THD: 0.1 % (Default Volume, 1kHz)
  • Microphone input: Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
  • Line Input: USB-C, Adjustable level
  • Headphone Output: 3.5 mm TRRS headphone jack
  • 25 mW, R 32 ohms
  • Audio Output: Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
  • Range: Up to 900 ft (274 m) (depending upon environmental conditions)
  • Modulation: FSK
  • RF Output: 19 dBm Typical
  • Security: 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
  • Side tone: -6 dB below volume, tone variation (Off, Low and High settings available)
  • Indicators: OLED
  • LEDs: Red LED around Talk button when enabled
  • Bi-color, changing green and red LED at top
  • Charging Connectors: USB-C
  • Two contacts for use with CHG 412
  • Compatible Receiver: DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
  • Operating Temperature Range: 14º to 113ºF (-10º to 45ºC)
  • Approvals: FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
  • Warranty: 2-years warranty against component failure and manufacturing defects. 6 months on the internal battery. See Full Warranty on the website for details.
