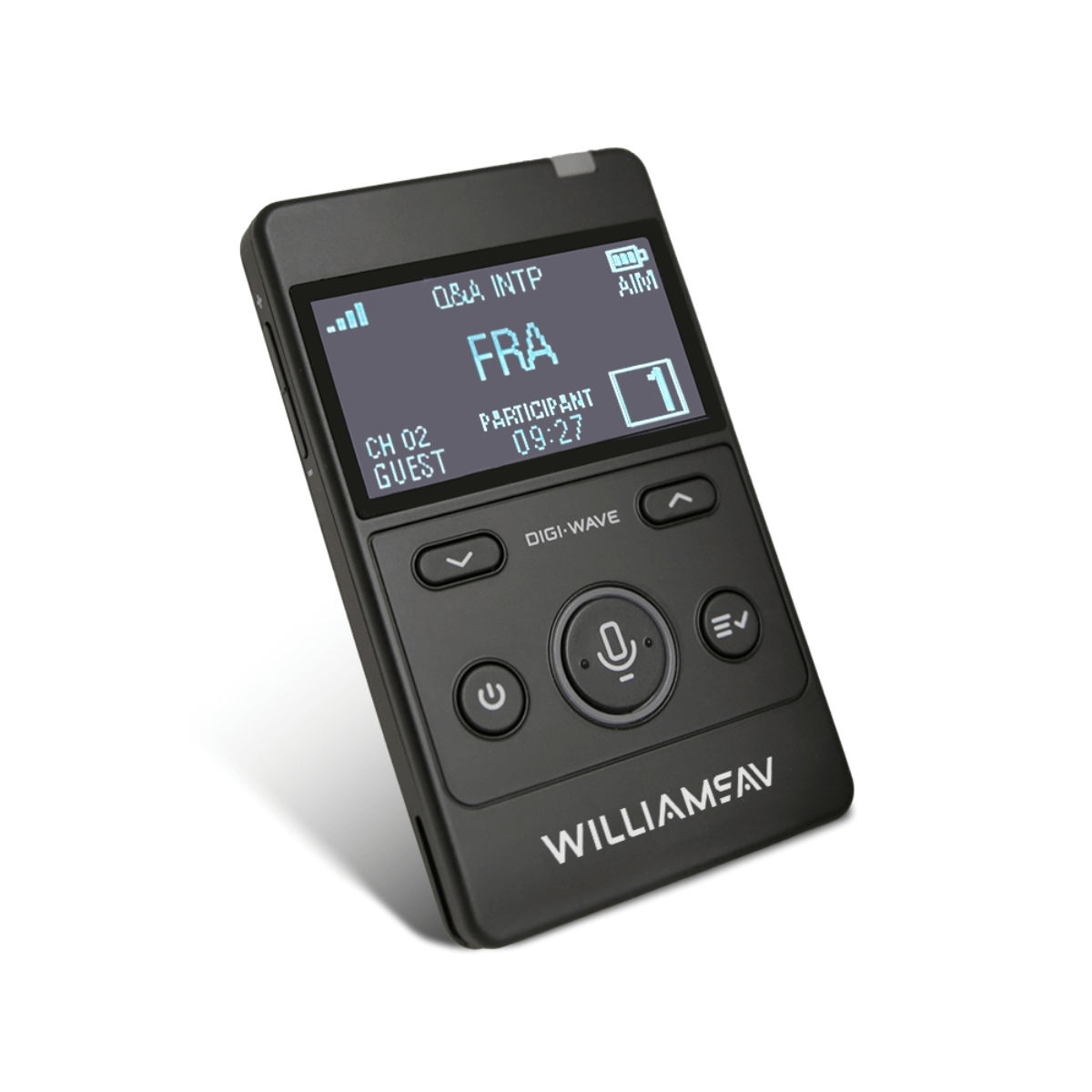

Williams Sound DLT 400-AIM
Digi-Wave AIM (Advanced Interpretation Module) Transceiver
Part #: DLT 400-AIM
Satisfaction Guaranteed!
Our Price:
$685.00
Top DLT 400-AIM Specifications
- Dimensions: 2.60"W x 4.22"H x 0.50"D
(66 mm x 107.3 mm x 12.6 mm) - Weight: 3.3 oz (94 g) including battery
- Color: Black/Silver (Front/Back)
- Case Material: Black ABS plastic
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Specifications
- Battery type: Lithium Polymer with smart charge built into transceiver
- 1800 mAH
- Battery life: Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
- Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
- Charge time: 5 hrs. approx.
- System Voltages: OLED 14VDC
- RF 5VDC
- Logic 3.3 VDC
- Operating frequencies: 2.4 GHz (ISM band)
- 2402 ? 2476 MHz FHSS
- Audio Frequency response (-3dB Level): Intercom Mode, Court Mode, INTP24 Mode, Q&
- A INTP: 100 ? 7,200 Hz
Other Modes: 100 ? 11,500 Hz - SNR: 73 dB (A-weighted, default Rx volume with mic input )
- THD: 0.1 % (Default Volume, 1kHz)
- Microphone input: Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
- Line Input: USB-C, Adjustable level
- Headphone Output: 3.5 mm TRRS headphone jack
- 25 mW, R 32 ohms
- Audio Output: Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
- Range: Up to 900 ft (274 m) (depending upon environmental conditions)
- Modulation: FSK
- RF Output: 19 dBm Typical
- Security: 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
- Side tone: -6 dB below volume, tone variation (Off, Low and High settings available)
- Indicators: OLED
- LEDs: Red LED around Talk button when enabled
- Bi-color, changing green and red LED at top
- Charging Connectors: USB-C
- Two contacts for use with CHG 412
- Compatible Receiver: DLR 400 RCH (with firmware 1.3.0 or greater)
- Operating Temperature Range: 14º to 113ºF (-10º to 45ºC)
- Approvals: FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
- Warranty: 2-years warranty against component failure and manufacturing defects. 6 months on the internal battery. See Full Warranty on the website for details.
