TechLogix TL-SMKIT-01
Share-Me Kit: Switcher, 2 HDMI Control Inserts, 2 HDMI Cables

Manufacturer SKU: 1002-9804
Satisfaction Guaranteed!
MSRP: $800.00
Our Price: $700.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top TL-SMKIT-01 Specifications
  • TL-SM3X1-HD Switcher Specifications
  • Video Input: 1 HDMI/MHL, 2 HDMI
  • Video Input Connector: 3 female HDMI
  • Input Video Signal: HDMI
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

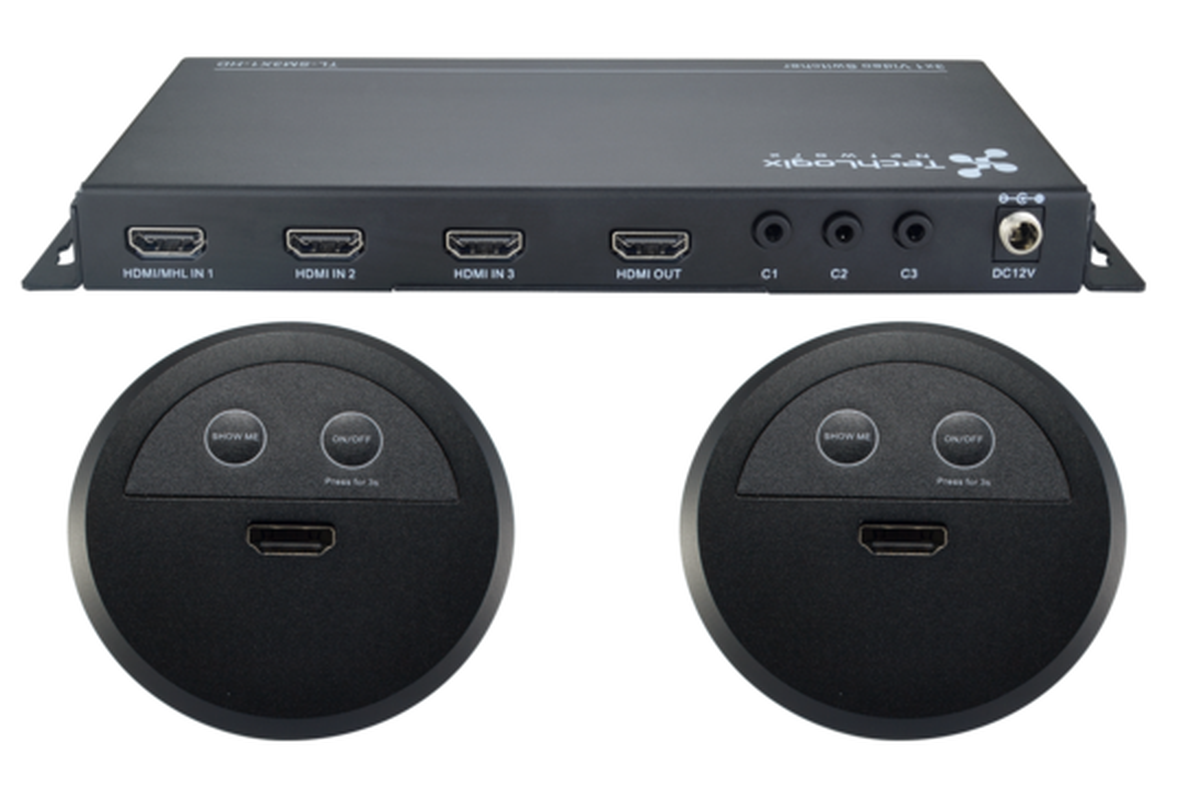

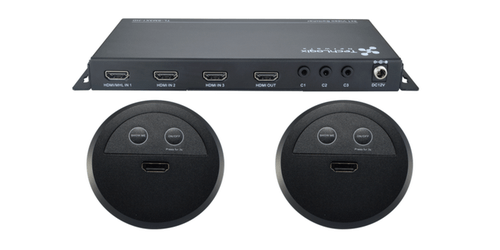

TechLogix introduces the Share-Me line of collaboration AV equipment, ideal for school or work environments. The TL-SMKIT-01 Share-Me kit includes the TL-SM3X1-HD switcher and 2 TL-SMG-HD HDMI control grommets, as well as 2 HDMI cables.

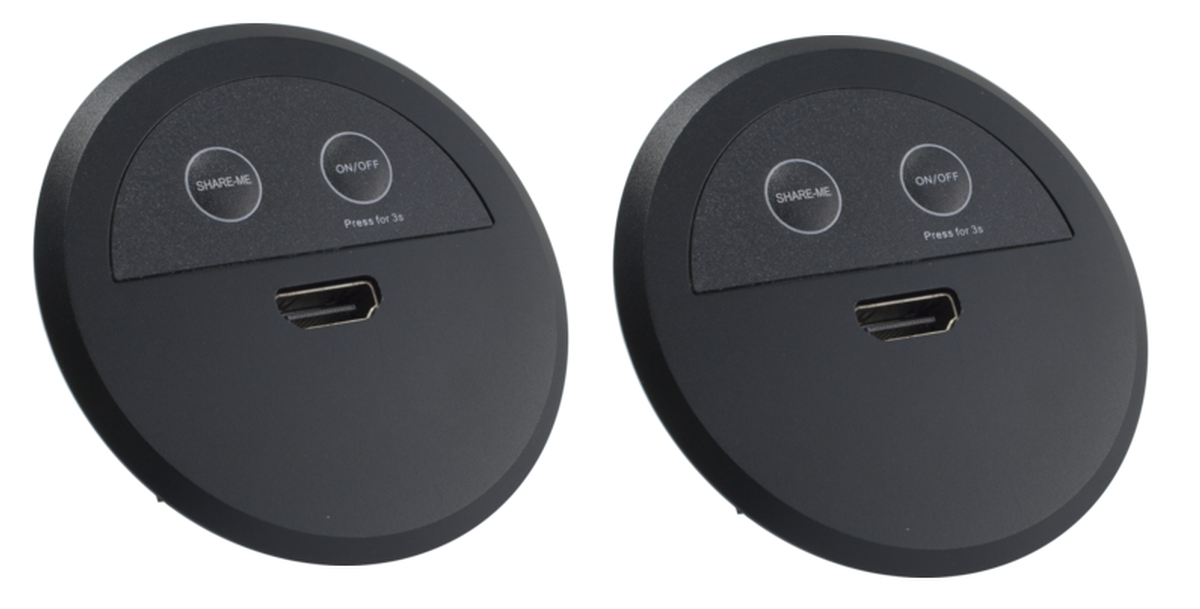

The TL-SMG-HD is a grommet control port with HDMI connection. These grommets are placed into presentation work surfaces and enable users to connect their own devices via HDMI and present the contents of their device to a display.

The TL-SM3X1-HD is a collaboration switcher featuring 2 HDMI inputs and 1 HDMI output. The TL-SM3X1-HD can be used in auto-switching or manual-switching mode. The auto-switching capability enables you to plug into the switcher and automatically set the input, where the manual switching capability requires a control command via the remote (IR) or from the front panel. The TL-SM3X1-HD can control displays as well, which allows On/Off commands to transmit from the unit to the display, saving you energy and extra steps.

Other key features of this switcher include:

  • HDMI video resolution up to 4K@30Hz 4:4:4
  • Compliance with HDMI 1.4 and HDCP 1.4

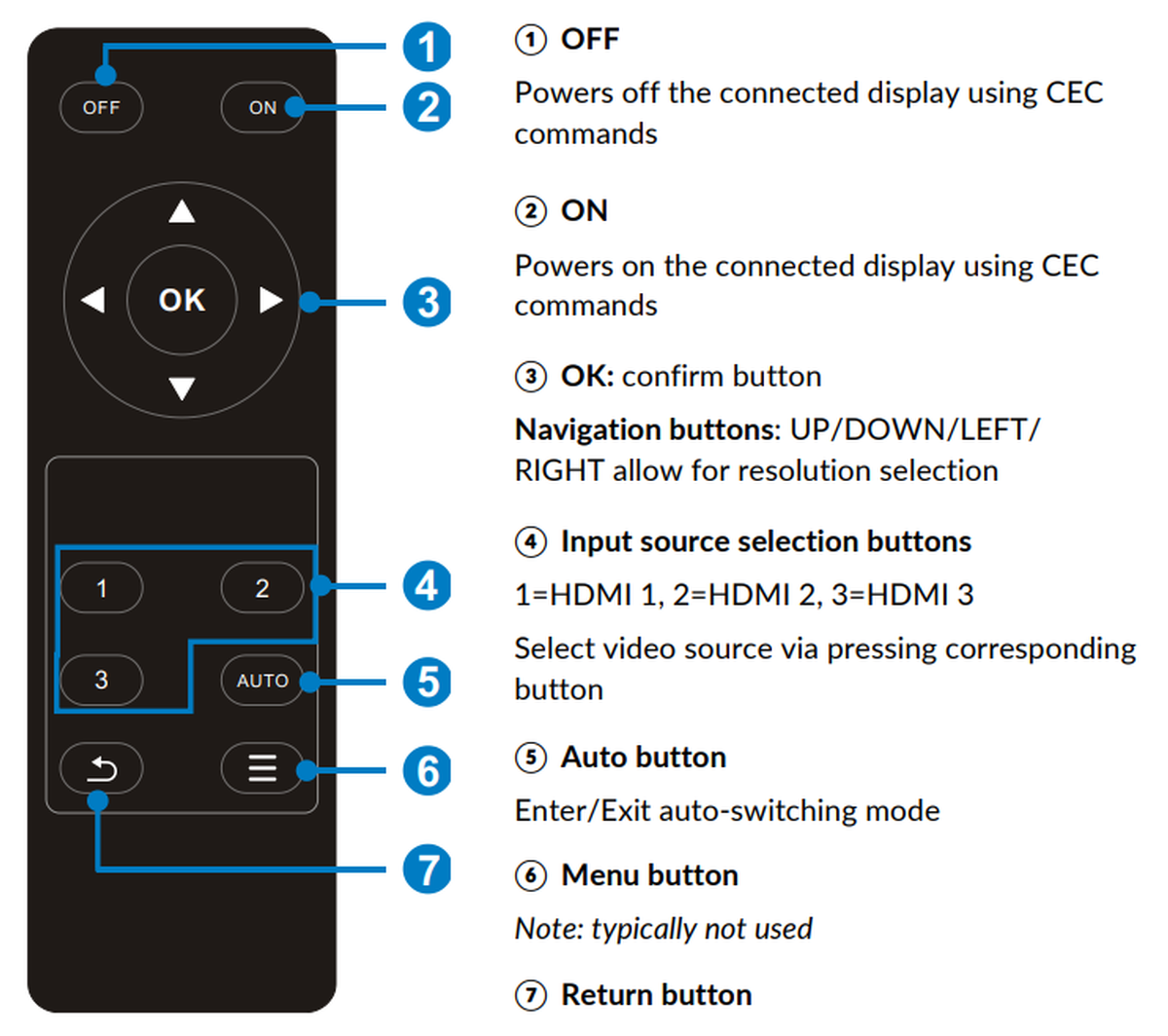

  • IR remote control and front panel controls
  • EDID pass-through
  • Hot-plug support
  • Micro USB Firmware Port

Specifications

  • Video Output: 1 HDMI
  • Video Output Connector: 1 female HDMI
  • Output Video Signal: HDMI
  • Output Resolution: HDMI output video supports HDMI 1.4 and HDCP 1.4 maximum resolution of 4K@30
  • Control Port: 3 Dry Contact (C1~C3), 1 FIRMWARE
  • Control Connector: 3 3.5mm mini jack, 1 Micro-USB
  • Control Buttons: HDMI 1, HDMI 2, HDMI 3, AUTO
  • Temperature: 0 ~ +50
  • Humidity: 10% ~ 90%
  • Power Supply: DC12V 1A
  • Max Power Consumption: 2W
  • Dimension (W*H*D): 7.9"x0.86"x3.30"
  • Weight: 0.54 lbs.
  • Warranty: 3 years
  • HDMI Control Grommet Specifications
  • HDMI Pass-Through
  • HDMI 2.0a Compatible
  • 1 HDMI Female Port (Top)
  • 1 HDMI Female Port (Bottom)
  • Plug-and-Play, Hot-Swappable, Hot-Pluggable
  • Snagless under-table mounting
  • Aluminum top panel (black finish) with steel housing
  • New Installation hole diameter 2.25"
  • Retrofit hole size range 2.25"~2.75"
  • Maximum table thickness 1.5"
  • Warranty: 3 years

Q & A

This product has no questions - ask one!

Ask a Question

Reviews

There are currently no reviews for this product.

Write a Review
