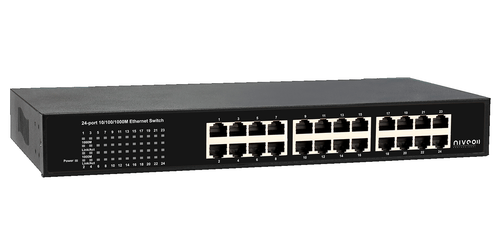

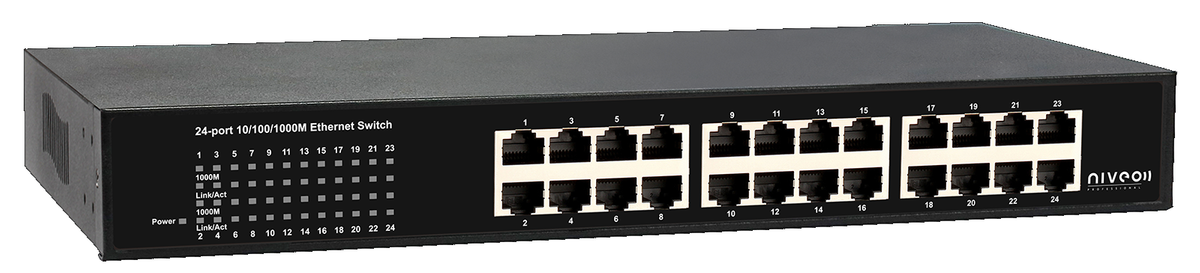

Niveo NGS24TP
24 Port Gigabit Ethernet Switch

Part #: NGS24TP
Satisfaction Guaranteed!
Need a price or product info? Complete and submit the below
Quantity
Email
Name
Top NGS24TP Specifications
  • Standards: IEEE 802.3 10BaseT / IEEE 802.3u 100BaseTX / IEEE 802.3ab 1000BaseT / IEEE 802.3x Flow control
  • Features
  • Number of Ports: 16
  • MAC Address: 8K
"Excellent and prompt call back from customer service!"
-Maciej Z.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

Features and Benefits

  • 24-port 10/100/1000Base-T RJ-45
  • Auto-MDI/MDI-X Auto Negotiation
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Non-Blocking Switching Capability
  • Ethernet Port on the Rear Design
  • Supports 9K Jumbo Frames
  • Compact 13” Metal Case
  • Internal Power Supply
  • CE, FCC Class B, Safety: UL (UL60950-1), CB(IEC60950-1)
  • Niveo Professional 10 Year Warranty

Applications

  • Small to medium networking environments
  • LAN 10/100/1000BaseT infrastructure
  • SOHO Networking infrastructure component

Specifications

  • Buffer Memory: 340 KB
  • Jumbo Frames: 9.6 KB
  • Method: Store and Forward Filtering/Forwarding Rates: 1000Mbps port 1,488,000pps 100Mbps port 148,800pps 10Mbps 14,880pps
  • Transmission Media: 10BaseT Cat. 3, 4, 5 UTP/STP / 100BaseTX Cat. 5 UTP/STP / 1000BaseT Cat. 5E UTP/STP LED Indicators: Per Port: LINK/ACT, 1000M
  • Per Unit: Power
  • Power Requirement: 90~260V/AC, 50~60Hz
  • Power Consumption: 12 Watts (Max)
  • Dimensions: 266 161 44 mm
  • Weight: 2.1 kg
  • Operating Temperature: 0 to 40
  • Storage Temperature: -20 to 90
  • Humidity: 10 to 90% RH (non-condensing)
  • Certifications: FCC Class A, CE
