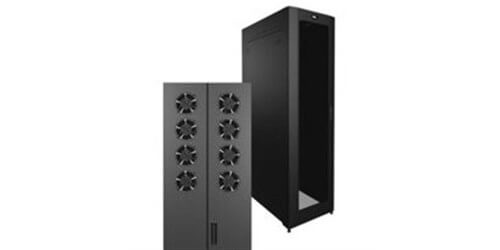

Middle Atlantic
SNE24H-4542-A2
24"W,45SP,42"D CONFIG H,F/R ACTIVE ENCL,BK

Description

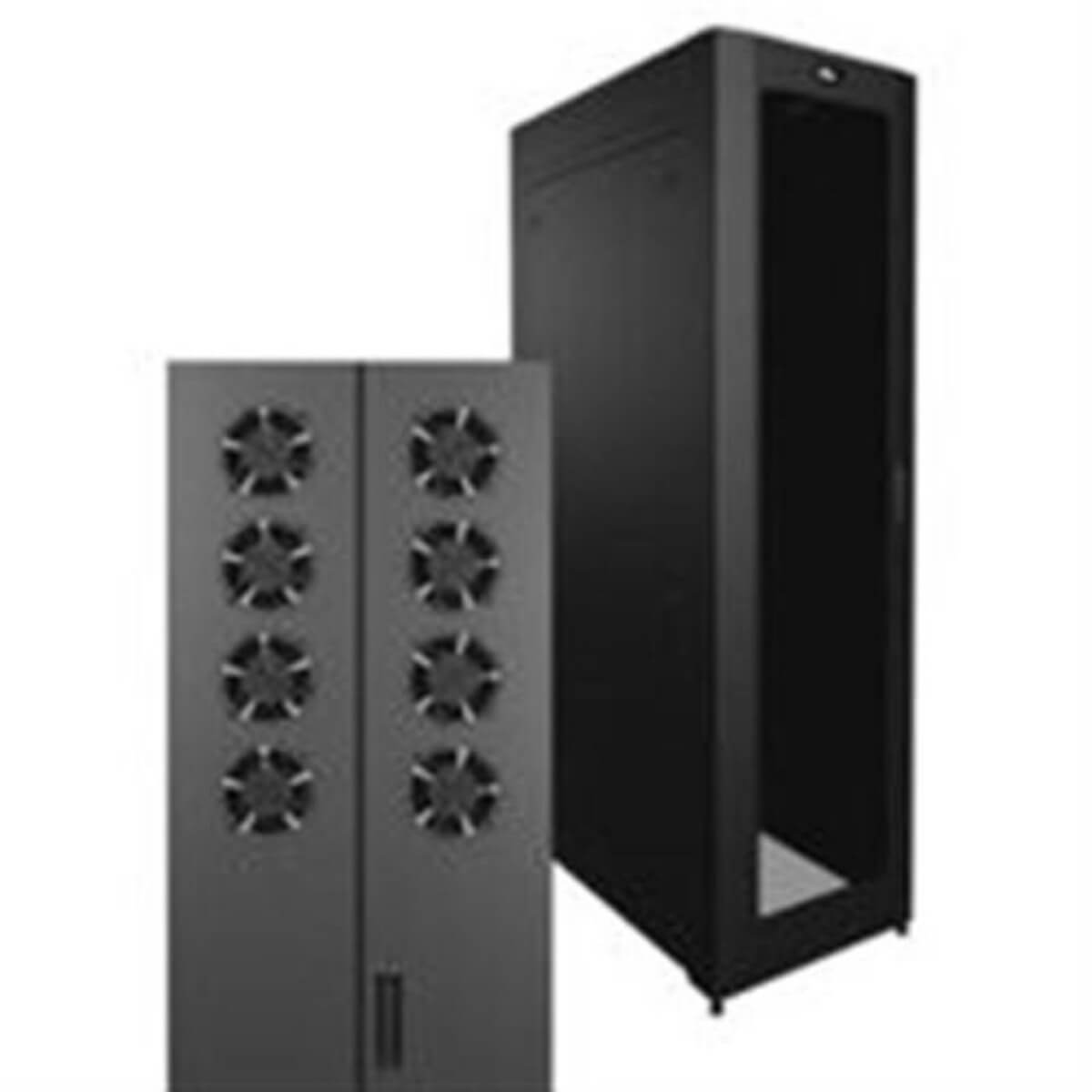

The SNE Series Hybrid is configured for hybrid security systems consisting of a mix of analog and digital equipment and cabling. Accommodates small devices including encoders, power supplies and access control systems on the patented Zero-U Tool-Free Lever Lock system. Fully configured Security Network Enclosure w/active ventilation for equipment rooms o 70% open area vented front door o Pair of split flush mount locking side panels o (2) vertical 10" wide Lever Lock accessory mounting plate o (1) 6" wide vertical wire grid lace o 24" width o 42" overall depth o 45 rackspace o 2 pair of tapped 10-32 adjustable rail o 4 space cage-nut adapter (pair) SNE Series Hybrid with Rear Active Ventilation Solid split rear door with (8) 6" fans for a total of 1,760 CFM active ventilation; Solid top Optional proportional speed fan controller (FC-CFRD) Lever Lock compatible. UTL/ETL listed and seismic certified. Includes 2 vertical 10" wide Lever Lock accessory mounting plates. Configured for rear active ventilation. Includes 1,760 CFM split fan rear door (eight 6" fans, expandable). Optional proportional door fan controller (FC-CFRD, not included). Includes 70% open front door and solid top. Includes one piece of 6" wide vertical wire grid lace. Includes pair of split flush mount locking side panels. Includes 2 pair of adjustable 10-32 tapped rackrail. Includes four-space cage-nut adaptor (pair). Includes 4 leveling feet. Includes 4 casters.

Specifications

• Product Color: Black Powder Coat
• Product Material: Steel
• Dynamic/Rolling Weight Capacity: 1600 lb
• Static/Stationary Weight Capacity: 12000 lb
• Height: 84.8"
• Width: 24"
• Depth: 43.2"
• Rack Height: 45U
• Rack Width: 19"
• Rack Depth: 38.48"
• Assembly Required: No
• Environmentally Friendly: Yes
• Environmental Certification: ECO PASSPORT
• Environmental Certification: GREENGUARD Gold
• Limited Warranty: Lifetime
