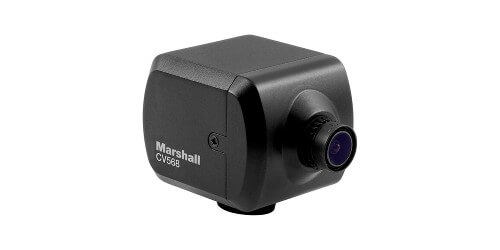

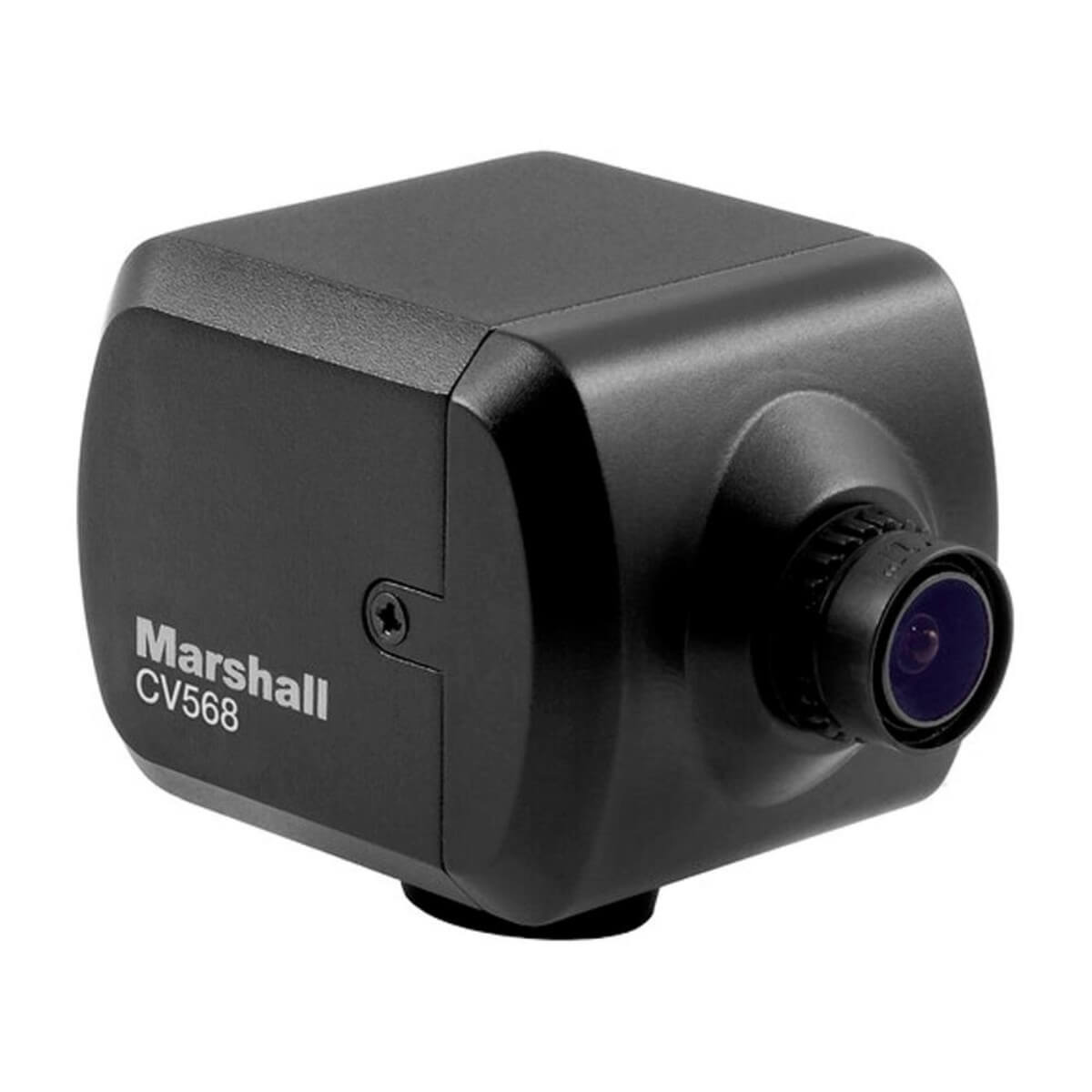

Marshall CV568
Miniature Global Camera (4.4mm) with Genlock

Description

Miniature HD Camera with Global Shutter and Genlock Sync features. Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and interchangeable M12 lens mount (comes with a 4.4mm - 84°) make this the most capable POV camera in the miniature camera lineup.

Specifications

• Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz
• Flexible Interchangeable Lenses ? 12MP 4.4mm (100° AOV) comes standard
• Tri-Level Sync (Genlock) for faster, more accurate camera switching
• SMPTE 424M (2.97Gbps) - 3GSDI:
  1920x1080p @ 50, 59.94, 60fps
• SMPTE 292M (1.485Gbps) - HDSDI:
  1920x1080p @ 23.97, 24, 25, 29.97, 30fps
  • 1920x1080i @ 50, 59.94, 60fps
  • 1280x720p @ 50, 59.94, 60fps
• Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
• Microphone/Line Level input with 2.5V Mic bias
• Color Matrix control: Style, Master level/phase, Color level/phase
• Environmental: -10°C ~ 50°C
• Includes 12v power supply, can operate 12V+/-10% with a 6 watt draw

Downloads

• Marshall CV568 Specifications (PDF)
