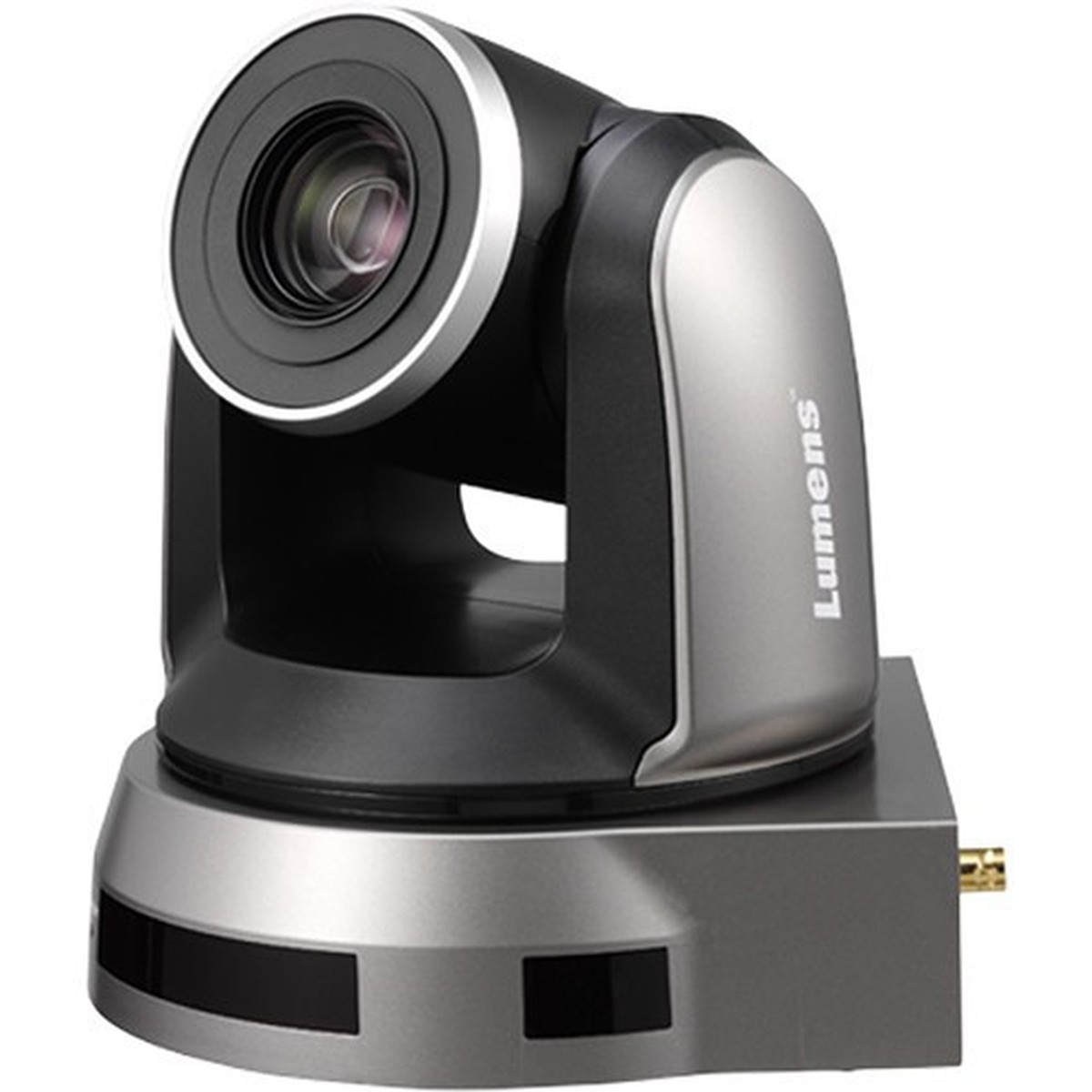

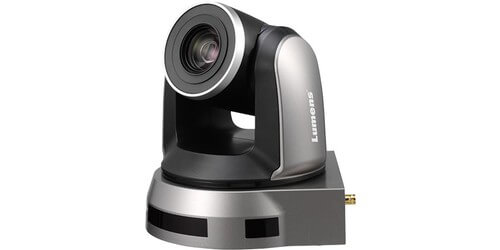

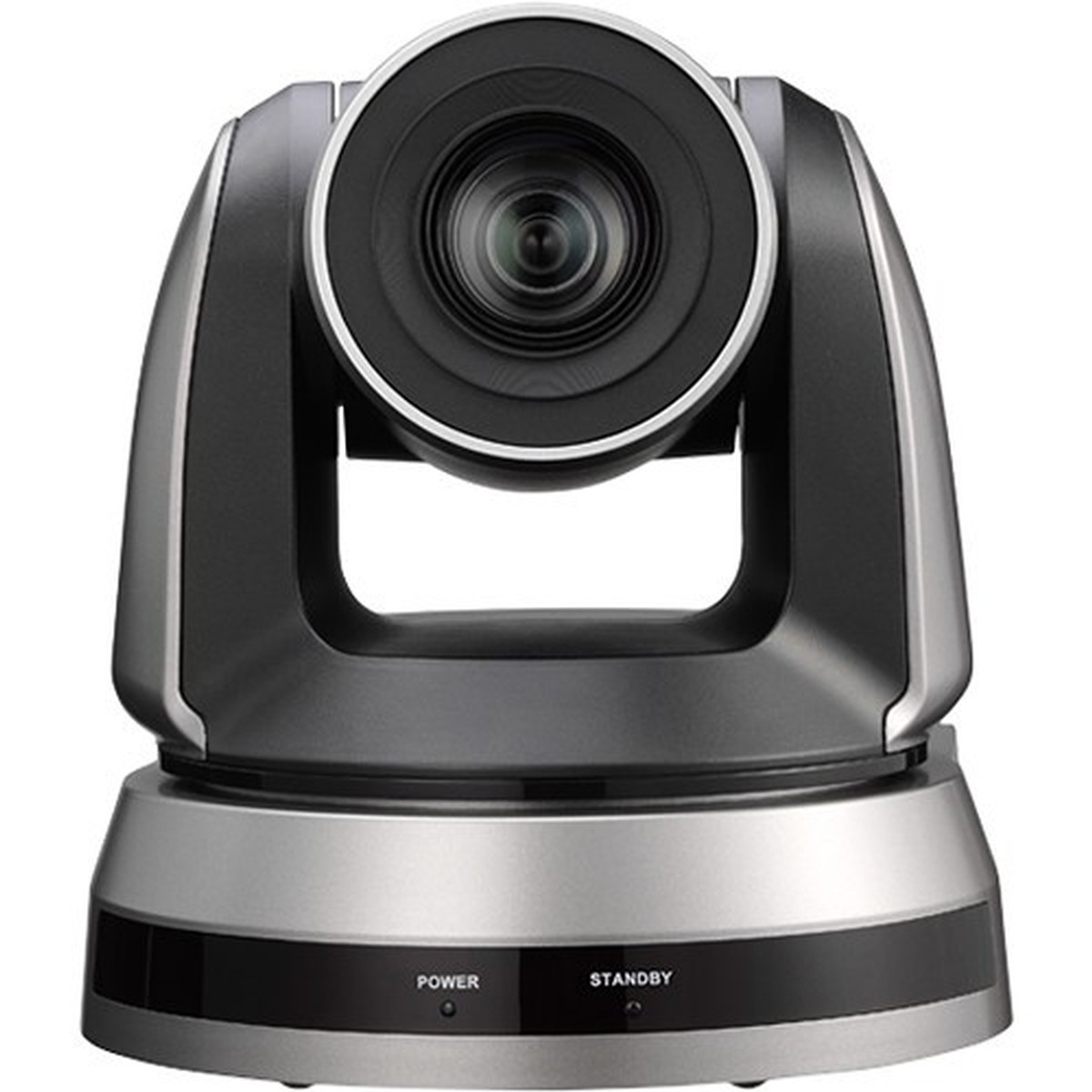

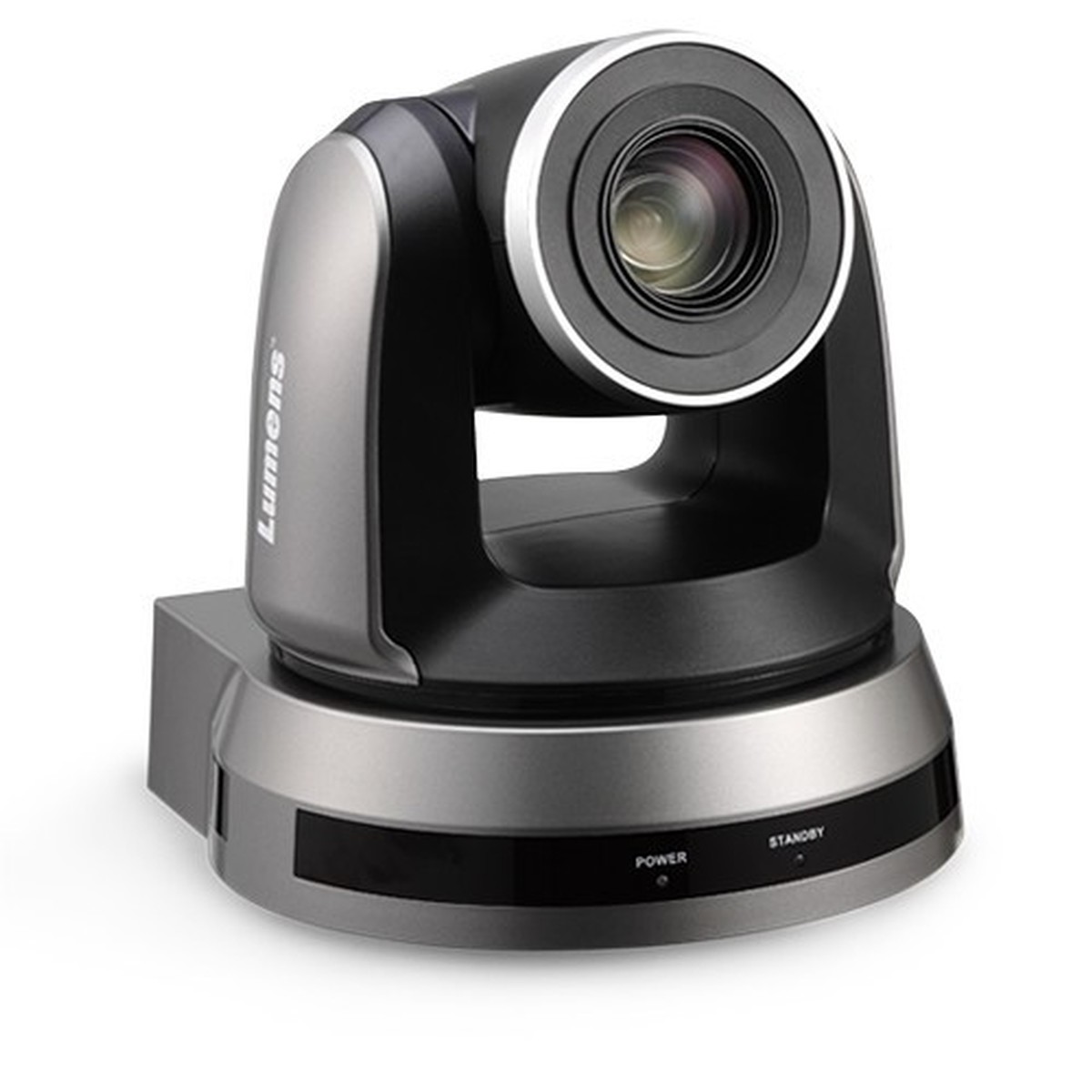

Lumens VC-A51SB
20x Zoom PTZ Video Conference Camera - Black
- Color: Black
- Sensor: 1/2.8" 2 MP CMOS
- Video Output: Up to 1080p Full HD
- Zoom Lens: Optical: 20x / Digital: 12x
Description
The Lumens VC-A51SB is a Pan/Tilt/Zoom (PTZ) conference room camera that features full HD 1080p resolutions at a high dynamic image quality of 60fps. It offers a 20x optical zoom lens with professional noise reduction and wide dynamic range technology that delivers a clear image, even in low light, back-light, or the extreme contrast of brightness and darkness in a room. Making this an ideal camera for use in a variety of room sizes that may or may not have the best ambient light control.
This camera utilizes a highly efficient motor controller to achieve high-speed, quite and precise positioning movements. The VC-A5ISB supports 3G-SDI, DVI-I interfaces which allows two simultaneous image outputs with the best possible image quality and is compatible with all video equipment. The VC-A5ISB is applicable for lecture capture, video conferencing and broadcasting systems.
Key Features:
- Dual color option for different kinds of environments
- With professional noise reduction technology a clear image is delivered
- Supports Wide Dynamic Range (WDR) to provide a vivid image even under backlighting
- Full HD 1080p with 60 fps
- Supports manual white balance function for a complex lighting environment
- 240 times variable zoom ratio (20x optical zoom with 12x digital zoom)

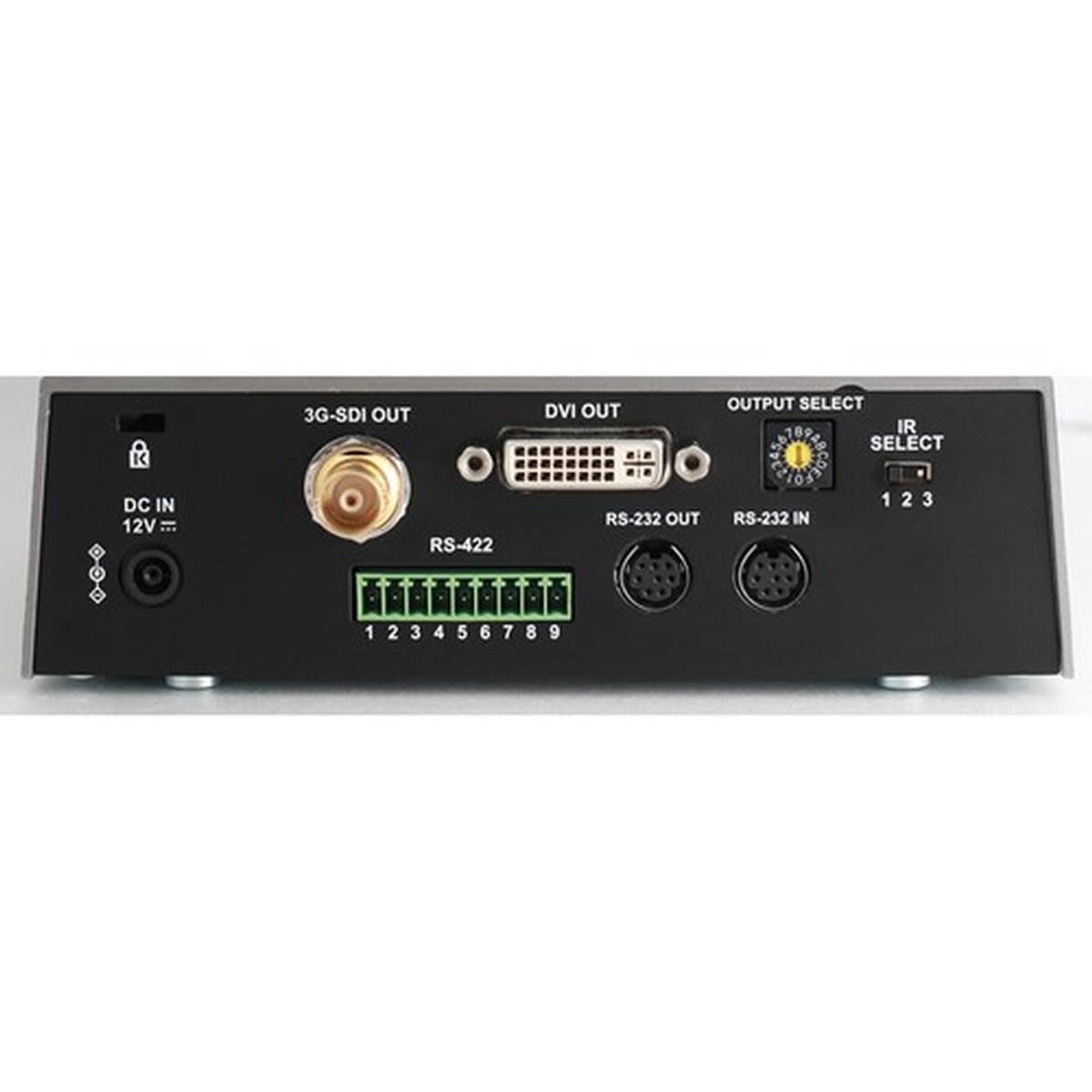

- 3G-SDI, DVI-I synchronous image output
- Maximum horizontal/vertical speed of rotation: 300° / sec
- Wide Pan/Tilt/Zoom mechanism:
- Horizontal viewing angle: -170° to +170°
- Tilting angle up to 90°, and down to -30°
- Compatible with major videoconferencing and lecture capture codec
Specifications
- Maximum Rotation Speed
- 300 degree/second
- Panning Range: -170 to 170 degrees (340 degrees)
- Tilt Range: -30 to 90 degrees (120 degrees)
- Preset Positions: 128
- HD Video Output 1 x 3G-SDI, 1 x DVI
- Camera Control Interface: RS-232, RS-422
- Video S/N Ratio: >50 dB
- Shutter Speed: 1 to 1/10,000 seconds
- Focal Length: 4.7-94mm
- Horizontal Viewing Angle: 63 degrees
- Aperture f/1.6 to f/3.5
- Minimum Illumination: 1.0 Lux (f/1.6, 50 IRE, 30 fps)
- Minimum Object Distance (M.O.D.): Wide: 12" (300 mm)
- Telephoto: 39" (1000 mm)
- Gain Control: Auto, Manual
- White Balance Control: Auto, Indoor, Outdoor, One-Push, Manual, R/B Gain
- Exposure Control: Auto, Manual
- Focus System: Auto, Manual
- Image Flip: Yes
- Dimensions: 6.9 x 7.3 x 7.3"
- Weight: 4.4 lb
- Included Accessories: Remote Control, Power Supply, Power Cord, RS-422 Connector, Ceiling Mount Kit with Screws
- Warranty: 3 Years
